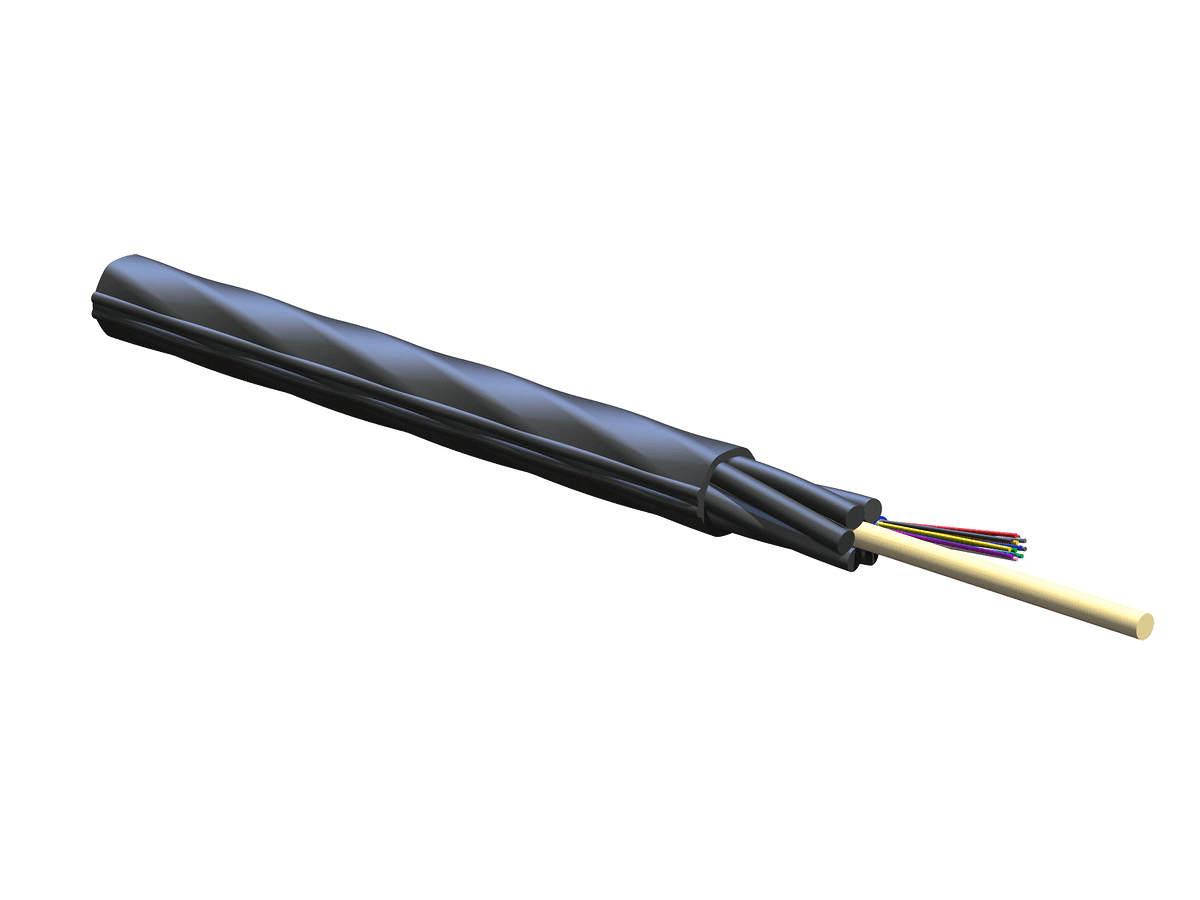

Corning 012ZM4-T4F22A20, 12 F MiniXtend® Cable with Binderless* FastAccess® Technology, Single-mode (G.652.D/G.657.A1) SMF-28® Ultra fiber

Corning 012ZM4-T4F22A20, 12 F MiniXtend® Cable with Binderless* FastAccess® Technology, Single-mode (G.652.D/G.657.A1) SMF-28® Ultra fiber

Summary: This Corning 012ZM4-T4F22A20 cable is a 12 F MiniXtend® Cable with Binderless* FastAccess® Technology designed for outdoor use with a dielectric product type and SMF-28® Ultra fiber category.

General Specifications:

• Product Number: 012ZM4-T4F22A20
• Outer Jacket Print: Feet
• Cable Type: Stranded Loose Tube
• Environment: Outdoor
• Product Type: Dielectric
• Fiber Category: SMF-28® Ultra
• Application: Microduct
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Common Installations: Outdoor microduct, indoor when installed according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: IEC 60794-5-10
• Corning Recommendations: This cable should be placed in microduct for all applications, including aerial

Environmental Conditions:

• Temperature Range, Installation: -15 °C to 60 °C (5 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 12
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Buffer Tube Color: Blue
• Buffer Tube Diameter: 1.4 mm (0.06 in)
• Number of Active Tubes: 1
• Number of Filling Elements: 5
• Number of Tube Positions: 6
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Short-Term: 890 N (200.08 lbf)
• Nominal Outer Diameter: 5.4 mm (0.21 in )
• Min. Bend Diameter Installation: 216 mm (8.5 in)
• Min. Bend Diameter Operation: 164 mm (6.46 in)
• Min. Duct Size Diameter: 8 mm (0.31 in)
• Optimal Duct Size: 10 mm (0.39 in)

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 22
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.34 dB/km / 0.34 dB/km / 0.22 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 23 kg/km (15.46 lb/1000 ft)
