Corning 012ZSP-T4101D20, Loose Tube Gel-Free Cable FREEDM® LST™ Plenum 12 F SMF-28® Ultra Fiber Single-mode (OS2) DIN VDE

Corning 012ZSP-T4101D20, Loose Tube Gel-Free Cable FREEDM® LST™ Plenum 12 F SMF-28® Ultra Fiber Single-mode (OS2) DIN VDE

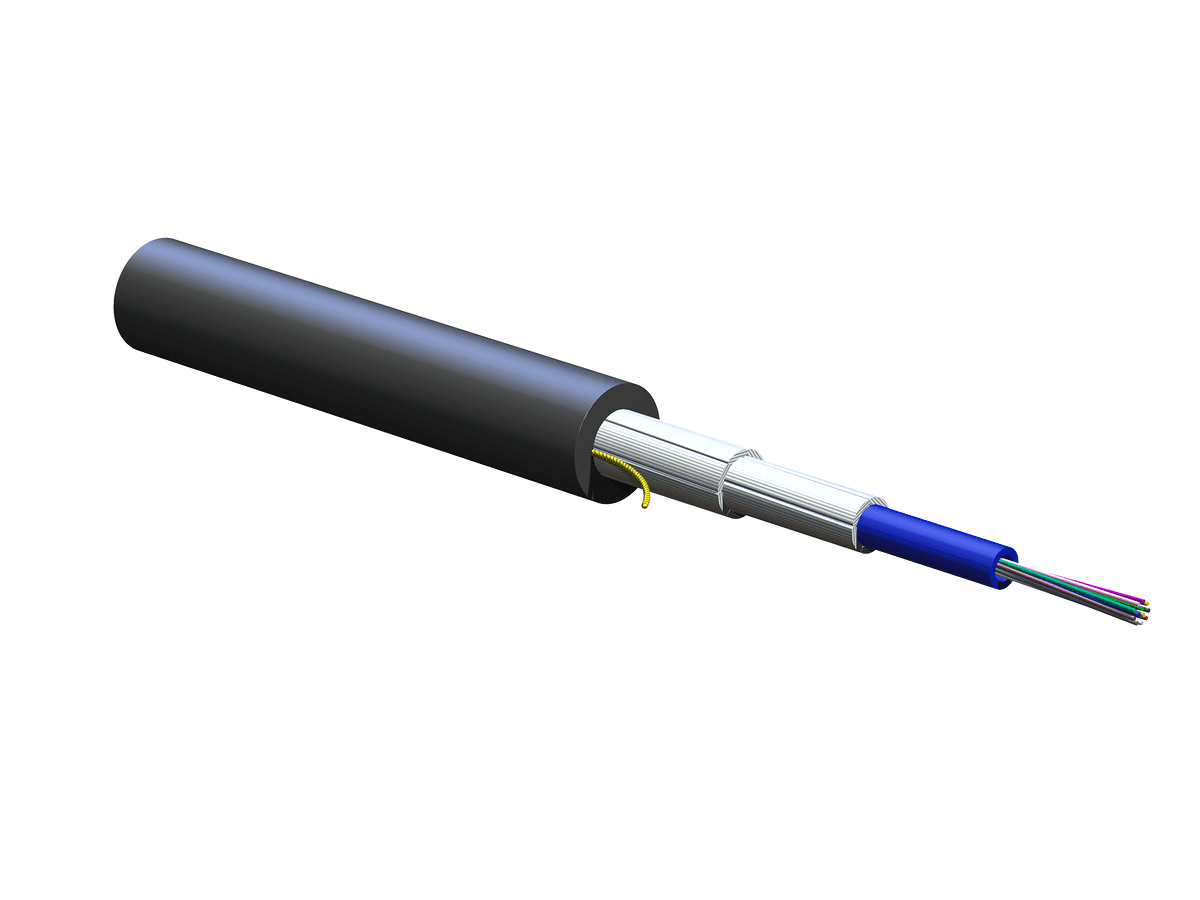

Summary: This Corning 012ZSP-T4101D20 cable is a Loose Tube Gel-Free Cable FREEDM® LST™ Plenum 12 F SMF-28® Ultra Fiber Single-mode (OS2) DIN VDE suitable for indoor/outdoor environments with a flame rating of Plenum (OFNP) and round cable geometry.

General Specifications:

• Product Number: 012ZSP-T4101D20
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: SMF-28® Ultra
• Flame Rating: Plenum (OFNP)
• Application: Aerial, Direct Buried, Duct, Horizontal
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP
• Design and Test Criteria: ANSI/ICEA S-104-696, NFPA 262 (for plenum, riser and general building applications)

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Fiber Count: 12
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Buffer Tube Color: Yellow
• Number of Active Tubes: 1
• Number of Tube Positions: 1
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: DIN VDE

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Installation: 135 mm (5.31 in)
• Min. Bend Radius Operation: 90 mm (3.54 in)
• Nominal Outer Diameter: 9 mm (0.35 in )

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 73 kg/km (49.05 lb/1000 ft)
