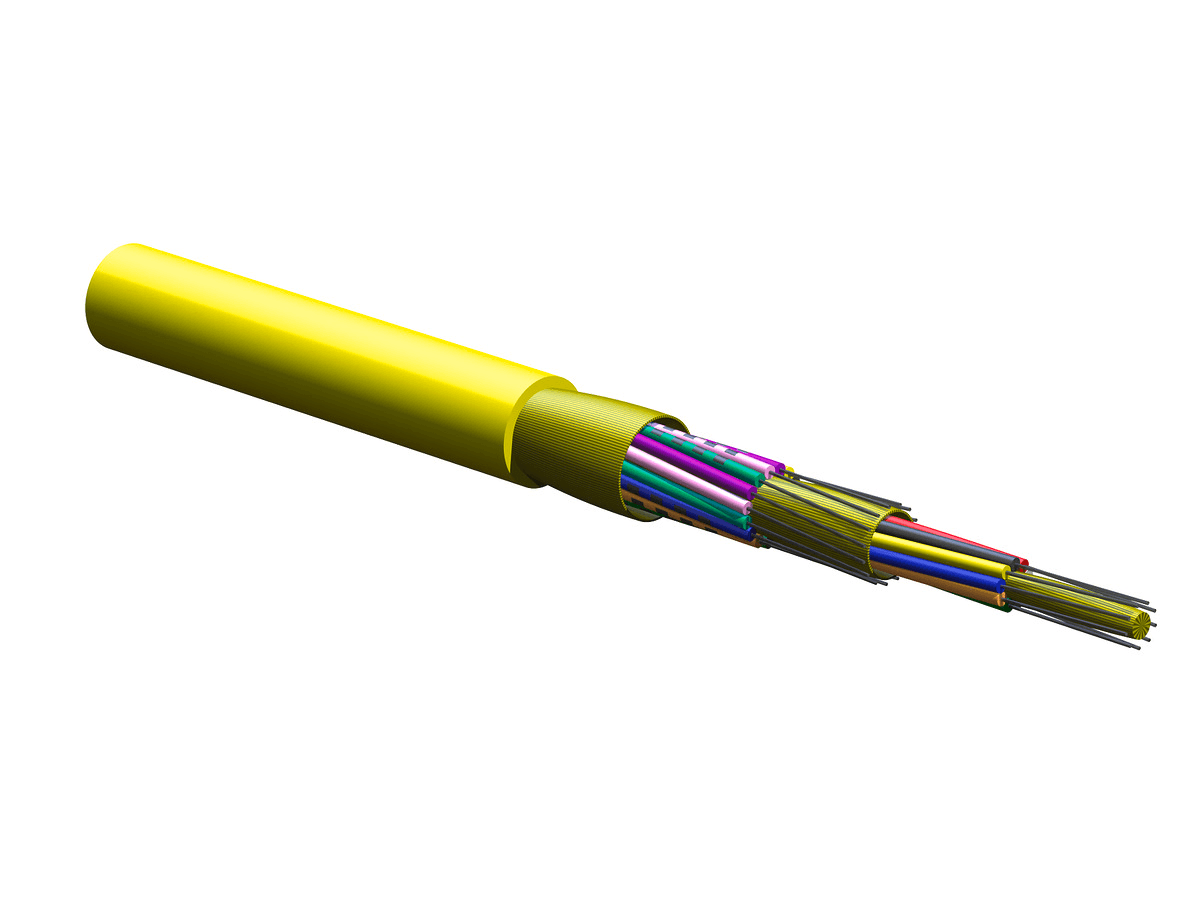

Corning 024E88-33131-29, Plenum 24 F, Single-mode (OS2) MIC® Tight-Buffered Cable

Corning 024E88-33131-29, Plenum 24 F, Single-mode (OS2) MIC® Tight-Buffered Cable

Summary: This Corning Plenum 24 F Single-mode (OS2) MIC® Tight-Buffered Cable is designed for indoor distribution applications with a round cable geometry. It meets various standards, has a plenum flame rating, and offers excellent mechanical and optical characteristics.

General Specifications:

• Product Number: 024E88-33131-29
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Distribution
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Yarn
• Fiber Count: 24
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
• Tight Buffer Color, Layer 1: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow
• Tight Buffer Color, Layer 2: Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White *, Red*, Black*, Yellow*, Violet*, Rose*, Aqua*
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)
• Max. Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)
• Max. Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)
• Max. Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)
• Min. Bend Radius Installation: 117 mm (4.61 in)
• Min. Bend Radius Operation: 77 mm (3.03 in)
• Nominal Outer Diameter: 7.7 mm (0.3 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 583 kg/km (391.76 lb/1000 ft)
