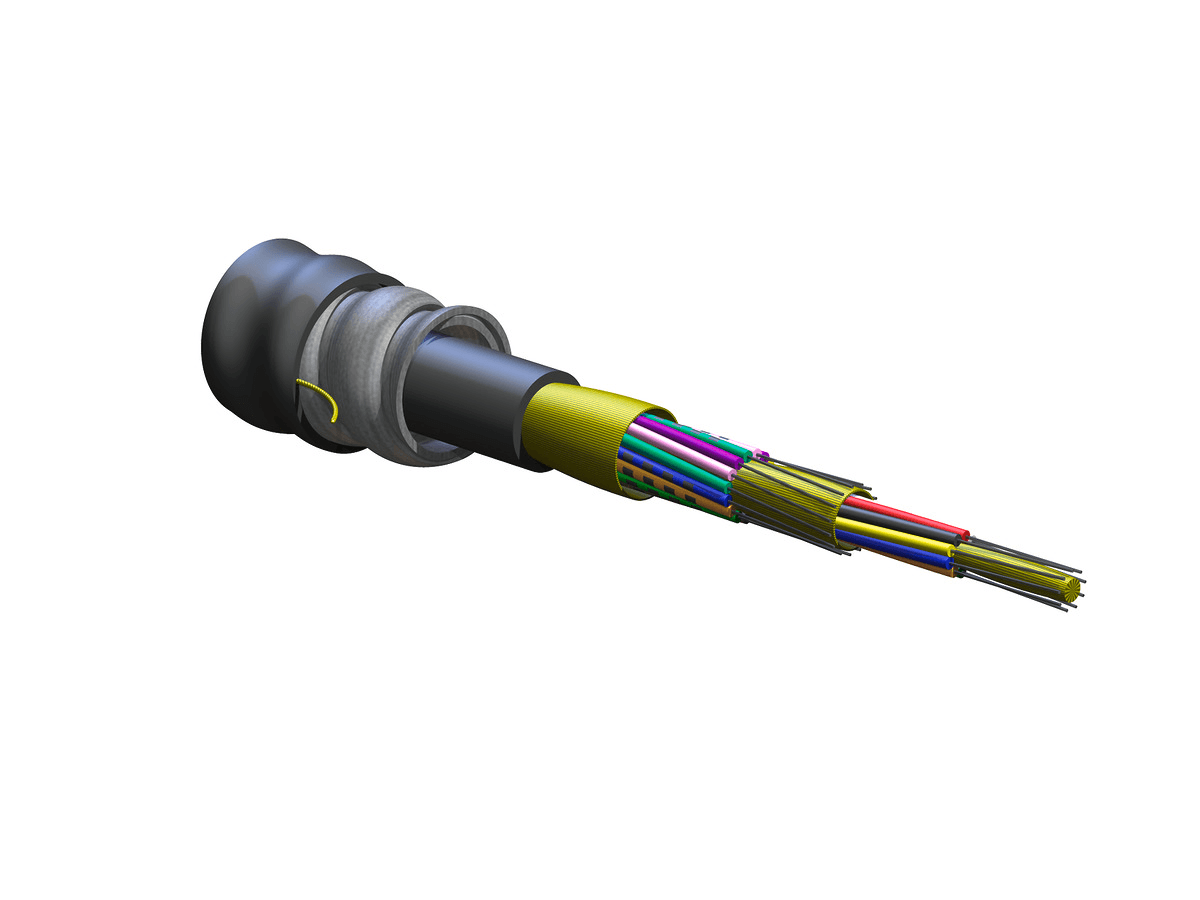

Corning 024E8F-31131-A1, Riser 24 F FREEDM® One Tight-Buffered, Interlocking Armored Cable, Single-mode (OS2)

Corning 024E8F-31131-A1, Riser 24 F FREEDM® One Tight-Buffered, Interlocking Armored Cable, Single-mode (OS2)

Summary: This Corning 024E8F-31131-A1 cable is a single-mode (OS2) interlocking armored cable suitable for indoor/outdoor use. It has a riser flame rating and is designed for various applications like aerial, direct buried, duct, horizontal, and riser installations.

General Specifications:

• Product Number: 024E8F-31131-A1
• Cable Type: Tight-Buffered
• Environment: Indoor/Outdoor
• Product Type: Interlocking Armor
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFCR)
• Application: Aerial, Direct Buried, Duct, Horizontal, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR, UL 1666, CSA FT-4
• Design and Test Criteria: ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 24
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Interlocking Armor
• Inner Jacket Material: Flame-Retardant, UV-Resistant
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White *, Red*, Black*, Yellow*, Violet*, Rose*, Aqua*
• Flame Rating: Riser (OFCR)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Installation: 205.5 mm (8.09 in)
• Min. Bend Radius Operation: 137 mm (5.39 in)
• Nominal Inner Cable Diameter: 8 mm (0.31 in)
• Nominal Outer Diameter: 13.7 mm (0.54 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 154.3 kg/km (103.68 lb/1000 ft)
