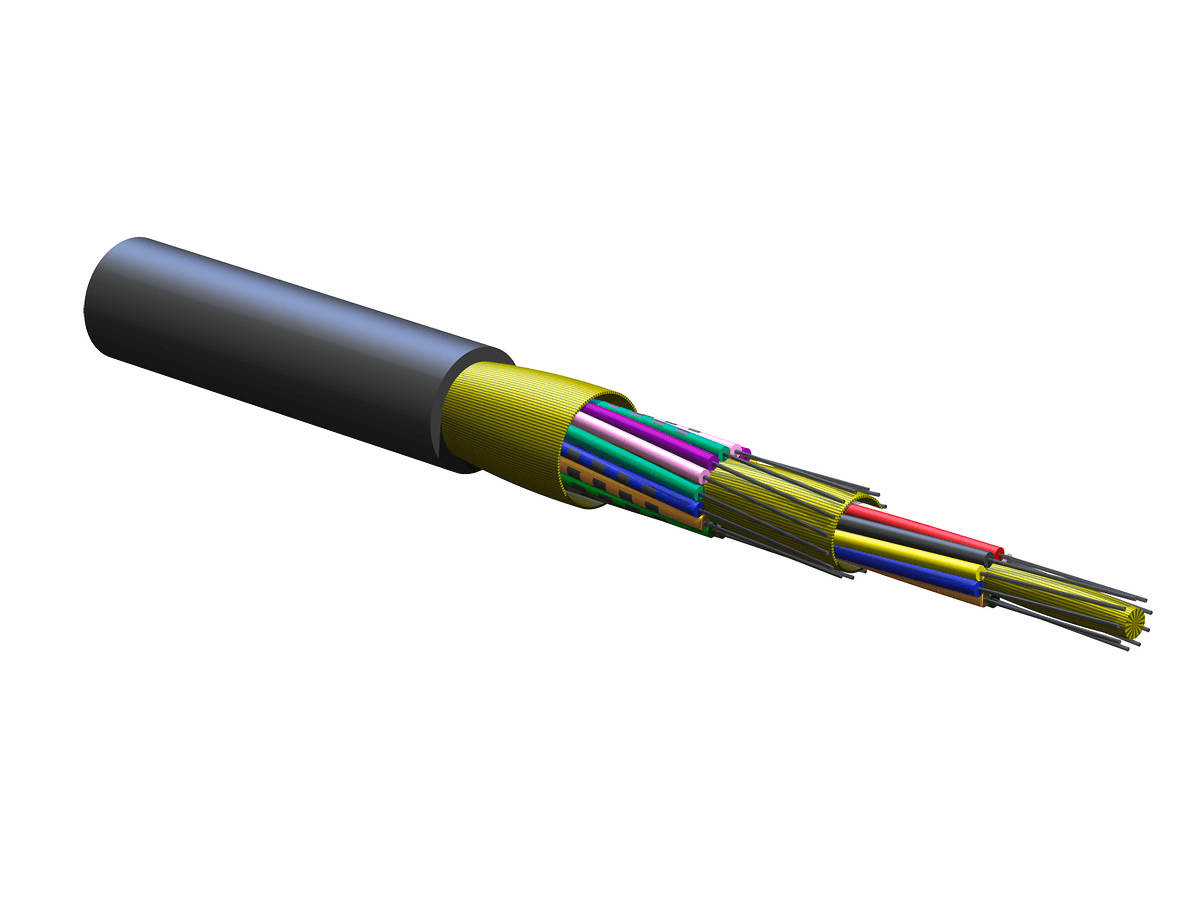

Corning 024E8P-31131-29, One Tight-Buffered Cable, Plenum 24 F, Single-mode (OS2) by FREEDM®

Corning 024E8P-31131-29, One Tight-Buffered Cable, Plenum 24 F, Single-mode (OS2) by FREEDM®

Summary: This Corning 024E8P-31131-29 cable is a plenum-rated, single-mode (OS2) tight-buffered cable suitable for various indoor/outdoor applications with a dielectric design and 24 fiber count.

General Specifications:

• Product Number: 024E8P-31131-29
• Cable Type: Tight-Buffered
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFNP)
• Application: Aerial, Duct, Horizontal, Riser, Plenum
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, FT-6
• Design and Test Criteria: ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 24
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable strength members
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White *, Red*, Black*, Yellow*, Violet*, Rose*, Aqua*
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Installation: 120 mm (4.72 in)
• Min. Bend Radius Operation: 80 mm (3.15 in)
• Nominal Outer Diameter: 8 mm (0.31 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 65 kg/km (43.68 lb/1000 ft)
