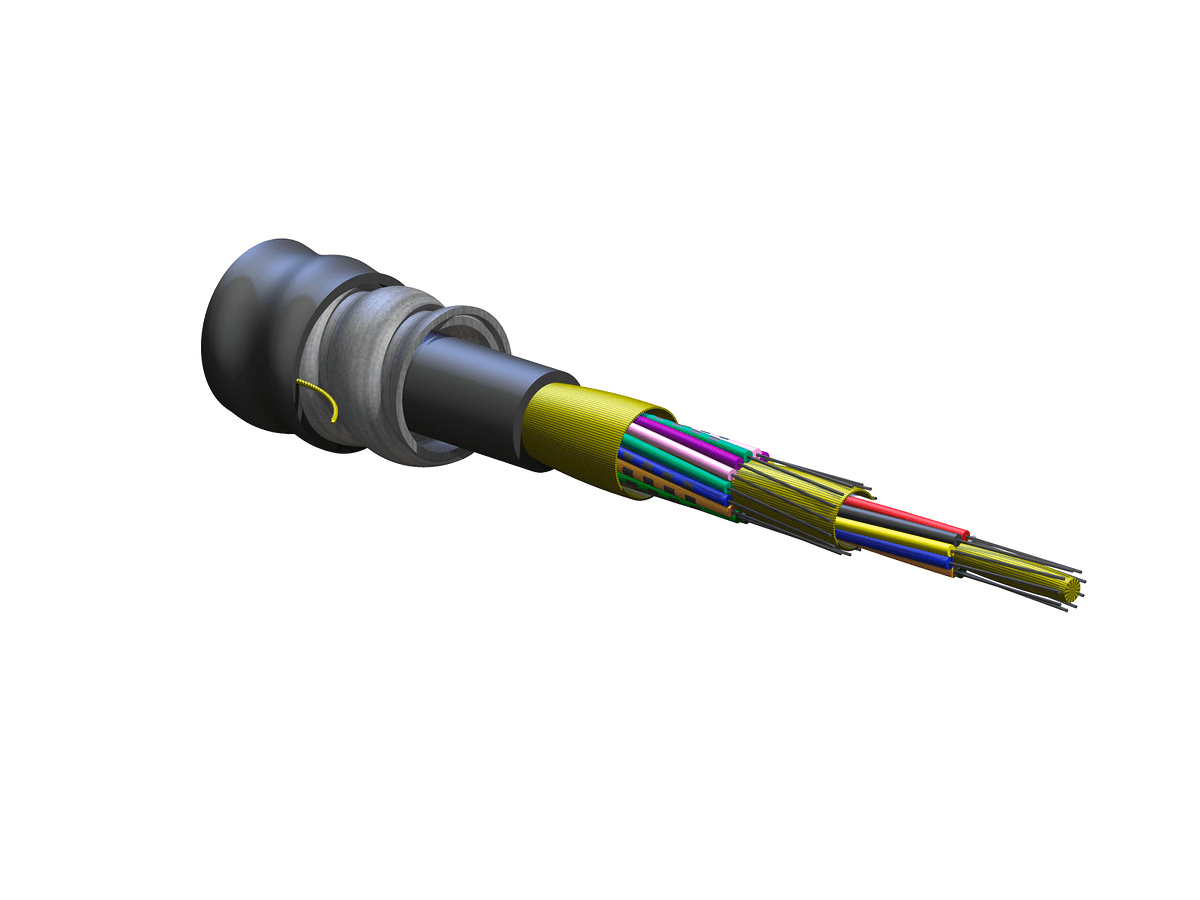

Corning 024E8P-31131-A3, 24 F Single-mode (OS2) FREEDM® One Tight-Buffered Plenum Interlocking Armored Cable

Corning 024E8P-31131-A3, 24 F Single-mode (OS2) FREEDM® One Tight-Buffered Plenum Interlocking Armored Cable

Summary: This Corning cable is a 24 F single-mode (OS2) tight-buffered plenum interlocking armored cable suitable for various applications and environments.

General Specifications:

• Product Number: 024E8P-31131-A3
• Cable Type: Tight-Buffered
• Environment: Indoor/Outdoor
• Product Type: Interlocking Armor
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFCP)
• Application: Aerial, Direct Buried, Duct, Horizontal, Riser, Plenum
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCP, CSA FT-6
• Design and Test Criteria: ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F)
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design:

• Central Element: Dielectric
• Fiber Count: 24
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Water-swellable strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Interlocking Armor
• Inner Jacket Material: Flame-Retardant, UV-Resistant
• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White *, Red*, Black*, Yellow*, Violet*, Rose*, Aqua*
• Flame Rating: Plenum (OFCP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)
• Min. Bend Radius Installation: 205.5 mm (8.09 in)
• Min. Bend Radius Operation: 137 mm (5.39 in)
• Nominal Inner Cable Diameter: 8 mm (0.31 in)
• Nominal Outer Diameter: 13.7 mm (0.54 in)

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 153.29 kg/km (103.01 lb/1000 ft)
