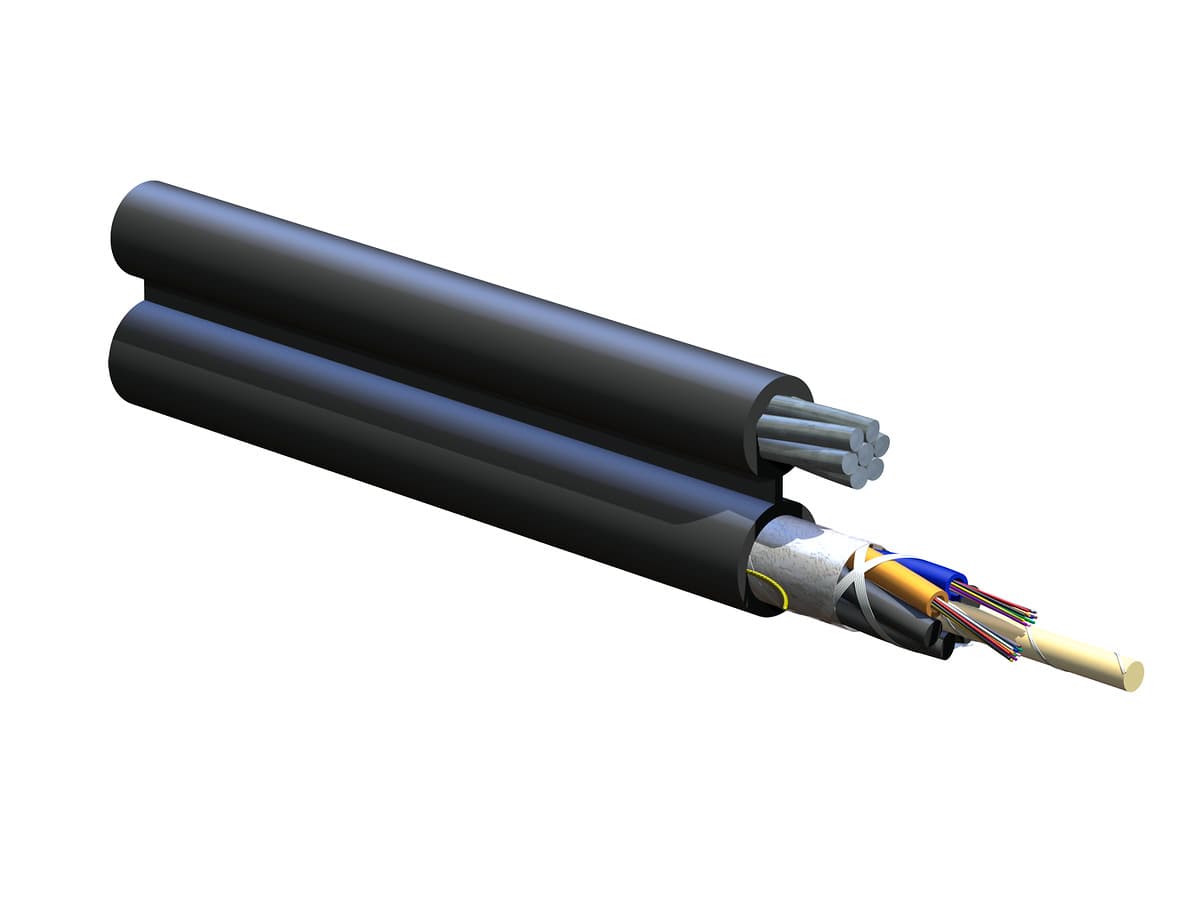

Corning 024EUA-T4101D20 – 24-Fiber 8.3/125 Single-Mode OS2, Loose Tube, Gel-Free, Figure-8 Aerial, Dielectric-Central-Member

Corning 024EUA-T4101D20 – 24-Fiber 8.3/125 Single-Mode OS2, Loose Tube, Gel-Free, Figure-8 Aerial, Dielectric-Central-Member

Corning 024EUA-T4101D20 – 24-Fiber 8.3/125 Single-Mode OS2, Loose Tube, Gel-Free, Figure-8 Aerial, Dielectric-Central-Member

General Specifications
Product Number: 024EUA-T4101D20
Cable Type: Loose Tube
Environment: Outdoor
Product Type: Self-Supporting, Figure-8
Fiber Category: Single-mode (OS2)
Application: Aerial
Cable Geometry: Other

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Common Installations: Outdoor self-supporting aerial
Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions
Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 24
Number of Ripcords: 1
Outer Jacket Color: Black
Outer Jacket Material: Polyethylene (PE)
Buffer Tube Color: Blue, Orange
Buffer Tube Diameter: 2.5 mm (0.1 in)
Messenger: Stranded steel
Number of Active Tubes: 2
Number of Filling Elements: 4
Number of Tube Positions: 6
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Nominal Cable Height: 22.1 mm (0.87 in)
Nominal Outer Diameter: 10.5 mm (0.41 in)
Min. Bend Diameter Installation: 316 mm (12.44 in)
Min. Bend Diameter Operation: 210 mm (8.27 in)

Optical Characteristics
Fiber Code: E
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D

Dimensions
Cable Weight: 297 kg/km (199.57 lb/1000 ft)
