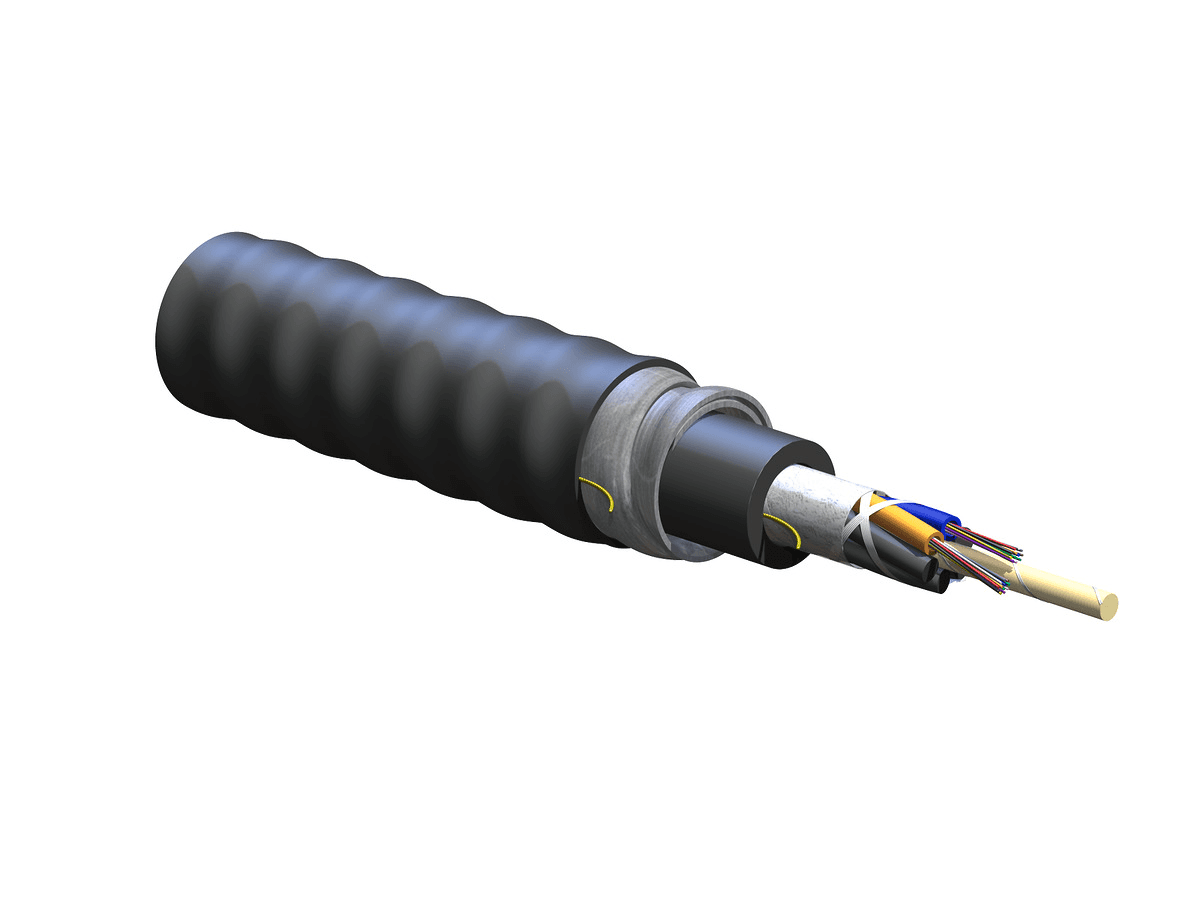

Corning 024EUF-T4101DA1, Riser 24 F Single-mode (OS2) FREEDM® Loose Tube Gel-Free Interlocking Armored Cable

Corning 024EUF-T4101DA1, Riser 24 F Single-mode (OS2) FREEDM® Loose Tube Gel-Free Interlocking Armored Cable

Summary: This Corning 024EUF-T4101DA1 cable is a single-mode (OS2) loose tube gel-free interlocking armored cable suitable for indoor/outdoor use. It has a flame rating of Riser (OFNR) and is designed for various applications including aerial, direct buried, duct, and horizontal installations.

General Specifications:

• Product Number: 024EUF-T4101DA1
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Interlocking Armor
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFNR)
• Application: Aerial, Direct Buried, Duct, Horizontal
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR
• Common Installations: Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696, CSA FT-4

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design:

• Central Element: Dielectric
• Fiber Count: 24
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Interlocking Armor
• Buffer Tube Color: Blue, Orange
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Inner Jacket Material: Flame-Retardant, UV-Resistant
• Number of Active Tubes: 2
• Number of Filling Elements: 4
• Number of Tube Positions: 6
• Tape: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Min. Bend Radius Installation: 299 mm (11.77 in)
• Min. Bend Radius Operation: 207 mm (8.15 in)
• Nominal Outer Diameter: 20.7 mm (0.81 in)

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 293 kg/km (196.89 lb/1000 ft)
