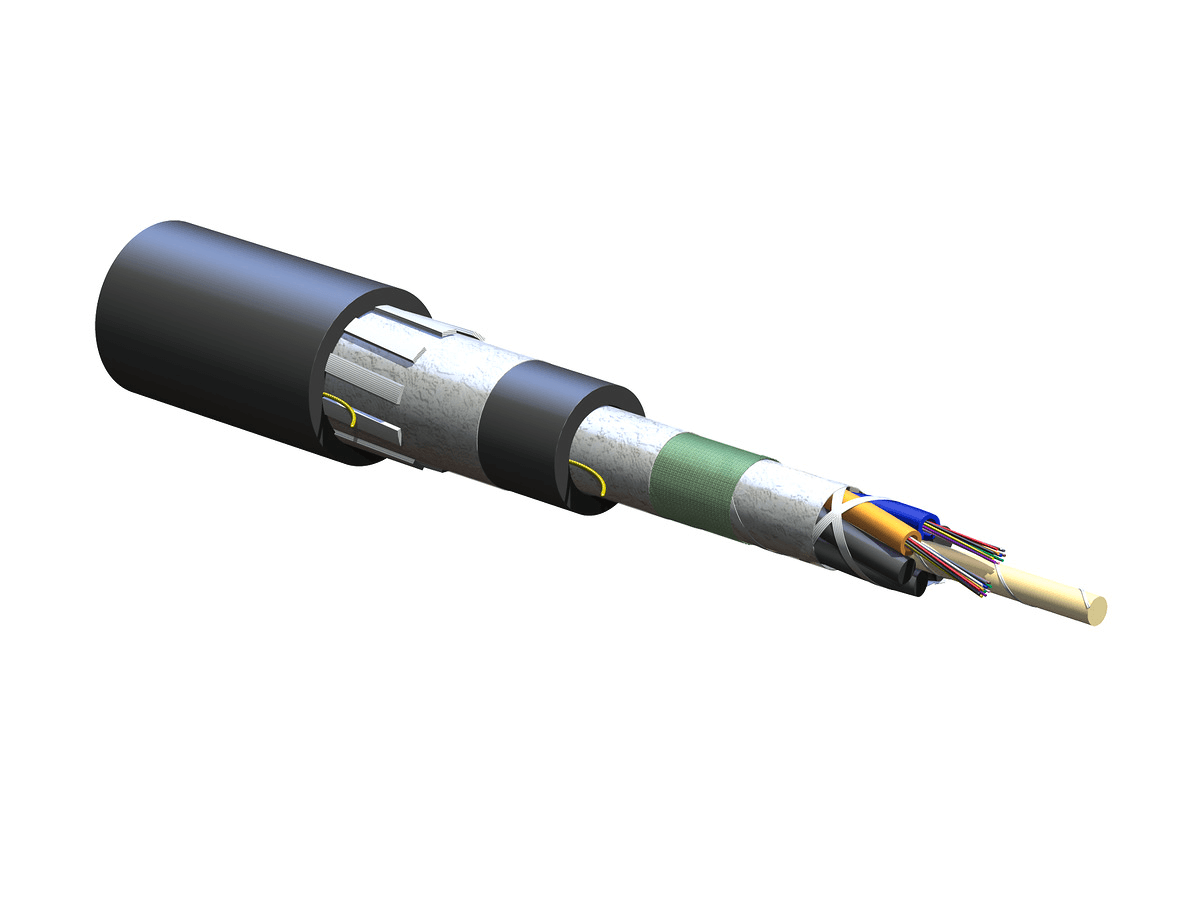

Corning 024EUL-T3601D2M, 24 F Mining and Petrochemical Tray-Rated Single-mode (OS2) Loose Tube Gel-Free Cable

Corning 024EUL-T3601D2M, 24 F Mining and Petrochemical Tray-Rated Single-mode (OS2) Loose Tube Gel-Free Cable

Summary: The Corning 024EUL-T3601D2M is a 24 F Mining and Petrochemical Tray-Rated Single-mode (OS2) Loose Tube Gel-Free Cable designed for indoor/outdoor use with dielectric properties and LSZH flame rating.

General Specifications:

• Product Number: 024EUL-T3601D2M
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Flame Rating: LSZH (OFN-LS)
• Application: Aerial, Direct Buried, Duct, Tray-Rated
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: NFPA 130, National Electrical Code® (NEC®) OFN-LS, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034
• Common Installations: Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696, UL 1666, UL 1685, CSA OFN-LS FT-4-ST1, CSA C22.2 No. 230 and No. 232

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F )
• Temperature Range, Operation: -50 °C to 75 °C (-58 °F to 167 °F )
• Temperature Range, Storage: -50 °C to 75 °C (-58 °F to 167 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 24
• Number of Ripcords: 4
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Buffer Tube Color: Blue, Orange
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Inner Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Number of Active Tubes: 2
• Number of Filling Elements: 4
• Number of Tube Positions: 6
• Tape: Water-swellable
• Tape, Layer 1: Water-swellable
• Tape, Layer 2: Flame-retardant tape
• Tape, Layer 3: Water-swellable
• Tape, Layer 4: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Compressive Loading: 2400 N/cm
• Max. Tensile Strength, Long-Term: 1500 N (337.21 lbf)
• Max. Tensile Strength, Short-Term: 4500 N (1011.64 lbf)
• Min. Bend Radius Installation: 264 mm (10.39 in)
• Min. Bend Radius Operation: 176 mm (6.93 in)
• Nominal Outer Diameter: 17.6 mm (0.69 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm</
