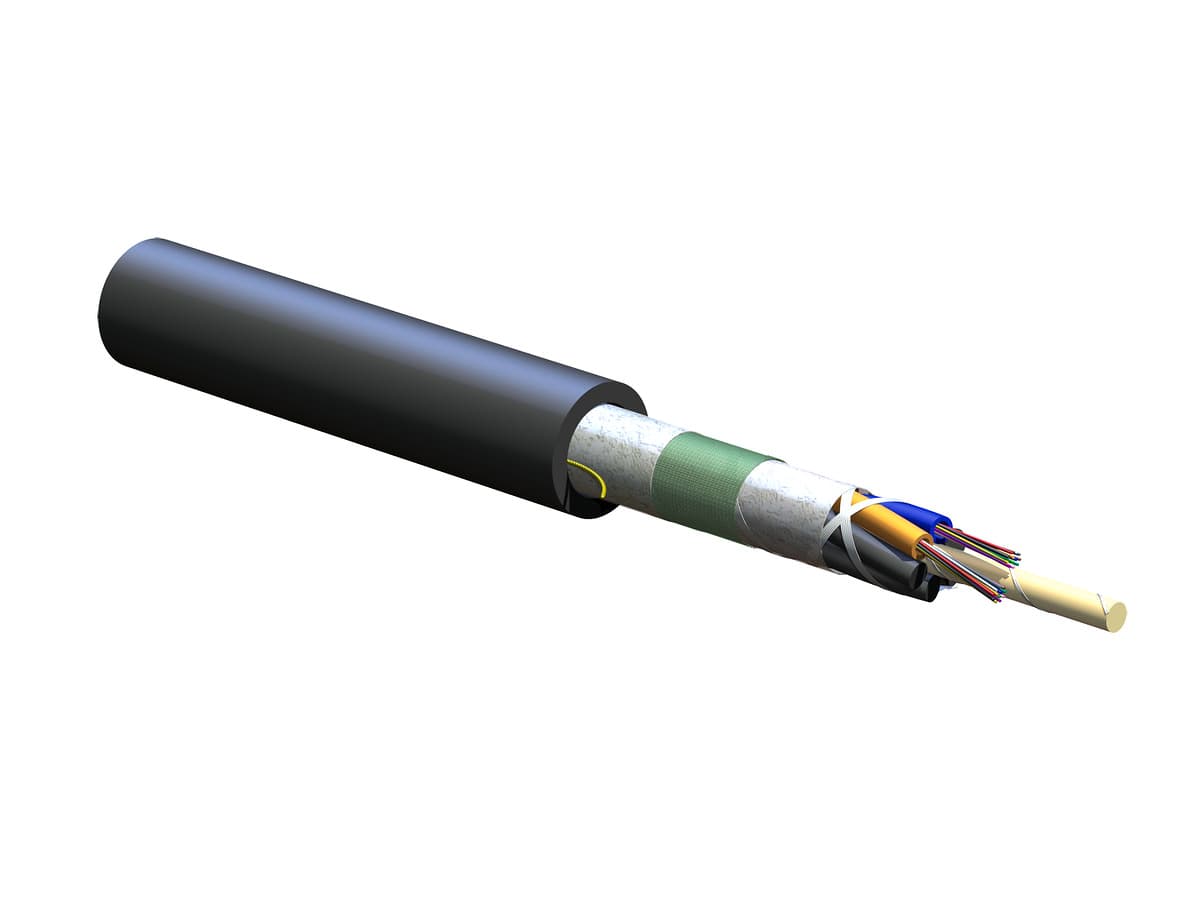

Corning 024EUZ-T4101D2N — 24-F OS2 8.3 LT DUCT/AERIAL INDUSTRIAL INDOOR/OUT 12/TUBE LSZH TRAY RATED

Corning 024EUZ-T4101D2N — 24-F OS2 8.3 LT DUCT/AERIAL INDUSTRIAL INDOOR/OUT 12/TUBE LSZH TRAY RATED

This 24-fiber OS2 loose tube cable is engineered for versatile indoor and outdoor installations, including aerial, duct, direct burial, and general-purpose horizontal runs. It features a dielectric central element with flame-retardant, non-corrosive, low-smoke zero-halogen (FRNC/LSZH) outer jacket for superior safety and environmental compliance. Designed with two active tubes holding 12 fibers each, the cable uses water-swellable and flame-retardant tapes to provide moisture protection and durability in harsh conditions. It supports a wide temperature range from -40 °C to 70 °C and meets stringent industry standards, including ANSI/ICEA S-104-696 and NEC OFCR-LS/Riser ratings. With a nominal outer diameter of 12.8 mm and high tensile strength, it ensures reliable, high-performance single-mode (OS2) transmission for industrial and telecom applications.

General Specifications
Product Number: 024EUZ-T4101D20
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: Single-mode (OS2)
Flame Rating: LSZH (OFN-LS)
Application: Aerial, Direct Buried, Duct, General purpose, Horizontal
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034
Common Installations: Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770
Design and Test Criteria: ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2 No. 230 and No. 232, CSA OFC (FT-4-S1)

Environmental Conditions
Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 24
Number of Ripcords: 2
Outer Jacket Color: Black
Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
Buffer Tube Color: Blue, Orange
Buffer Tube Diameter: 2.5 mm (0.1 in)
Number of Active Tubes: 2
Number of Filling Elements: 4
Number of Tube Positions: 6
Tape: Water-swellable
Tape, Layer 2: Flame-retardant tape
Tape, Layer 3: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
Min. Bend Radius Installation: 192 mm (7.56 in)
Min. Bend Radius Operation: 128 mm (5.04 in)
Nominal Outer Diameter: 12.8 mm (0.5 in)

Optical Characteristics
Fiber Code: E
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D

Dimensions
Cable Weight: 152 kg/km (102.14 lb/1000 ft)
