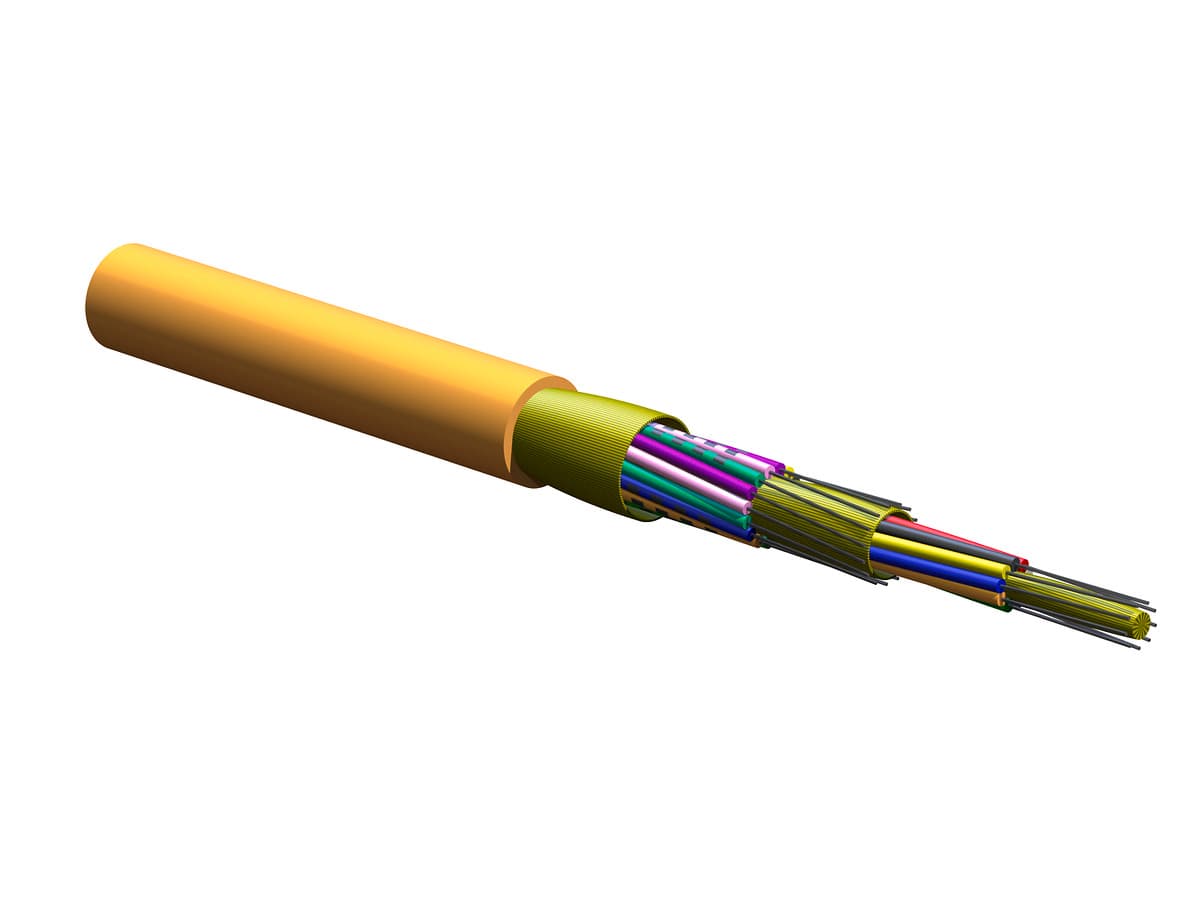

Corning 024K88-33130-29 – 24-Fiber 62.5/125 OM1 Tight-Buffered Plenum MIC, 3.4/1.0 dB/km, 200/500 MHz·km

Corning 024K88-33130-29 24-Fiber 62.5/125 OM1 Tight-Buffered Plenum MIC, 3.4/1.0 dB/km, 200/500 MHz·km

This 24-fiber OM1 tight-buffered distribution cable is designed for high-performance indoor data transmission in plenum, riser, and general-purpose environments. It features a flame-retardant orange jacket meeting Plenum (OFNP) standards, ensuring compliance with stringent fire safety codes. With a maximum attenuation of 3.4 dB/km at 850 nm and 1.0 dB/km at 1300 nm, it supports Gigabit Ethernet up to 550 meters and 10 Gigabit Ethernet up to 33 meters. Its robust dielectric strength members and tight-buffered construction provide excellent durability, flexibility, and ease of termination. Ideal for structured cabling systems, this cable offers reliable multimode performance with an effective modal bandwidth of 220 MHz·km at 850 nm and 500 MHz·km at 1300 nm.

Product Number: 024K88-33130-29
Cable Type: Tight-Buffered
Environment: Indoor
Product Type: Distribution
Fiber Category: 62.5 µm MM (OM1)
Flame Rating: Plenum (OFNP)
Applications: General purpose, Horizontal, Plenum, Riser
Cable Geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals & Listings: NEC® OFNP, UL-1666, CSA FT-4

• Design & Test Criteria: ICEA S-83-596

Environmental Conditions:

• Installation: 0 °C to 60 °C (32 °F to 140 °F)

• Operation: 0 °C to 70 °C (32 °F to 158 °F)

• Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design:

• Central Element: Yarn

• Fiber Count: 24

• Outer Jacket Color: Orange

• Outer Jacket Material: Flame-retardant

• Tensile Strength Elements: Dielectric strength members

• Tight Buffer Colors: Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White*, Red*, Black*, Yellow*, Violet*, Rose*, Aqua*

Mechanical Specifications:

• Max. Tensile Strength, Long-Term, ≤12F: 132 N (29.67 lbf)

• Max. Tensile Strength, Long-Term, >12F: 200 N (44.96 lbf)

• Max. Tensile Strength, Short-Term, ≤12F: 440 N (98.92 lbf)

• Max. Tensile Strength, Short-Term, >12F: 660 N (148.37 lbf)

• Min. Bend Radius Installation: 117 mm (4.61 in)

• Min. Bend Radius Operation: 77 mm (3.03 in)

• Nominal Outer Diameter: 7.7 mm (0.3 in)

Optical Characteristics:

• Fiber Code: K

• Performance Option Code: 30

• Fiber Category: OM1

• Fiber Type: Multimode

• Fiber Name: 62.5 µm MM (OM1)

• Maximum Attenuation: 3.4 dB/km @ 850 nm / 1.0 dB/km @ 1300 nm

• Wavelengths: 850 nm / 1300 nm

• Compliance: ISO/IEC 11801

• Core Diameter: 62.5 µm

• Coating Diameter: 242 µm

• Gigabit Ethernet: 300 m / 550 m

• 10 Gigabit Ethernet: 33 m / -

• Minimum EMB: 220 MHz·km @ 850 nm / -

• Minimum OFL Bandwidth: 200 MHz·km @ 850 nm / 500 MHz·km @ 1300 nm

Dimensions:

• Cable Weight: 583 kg/km (391.76 lb/1000 ft)
