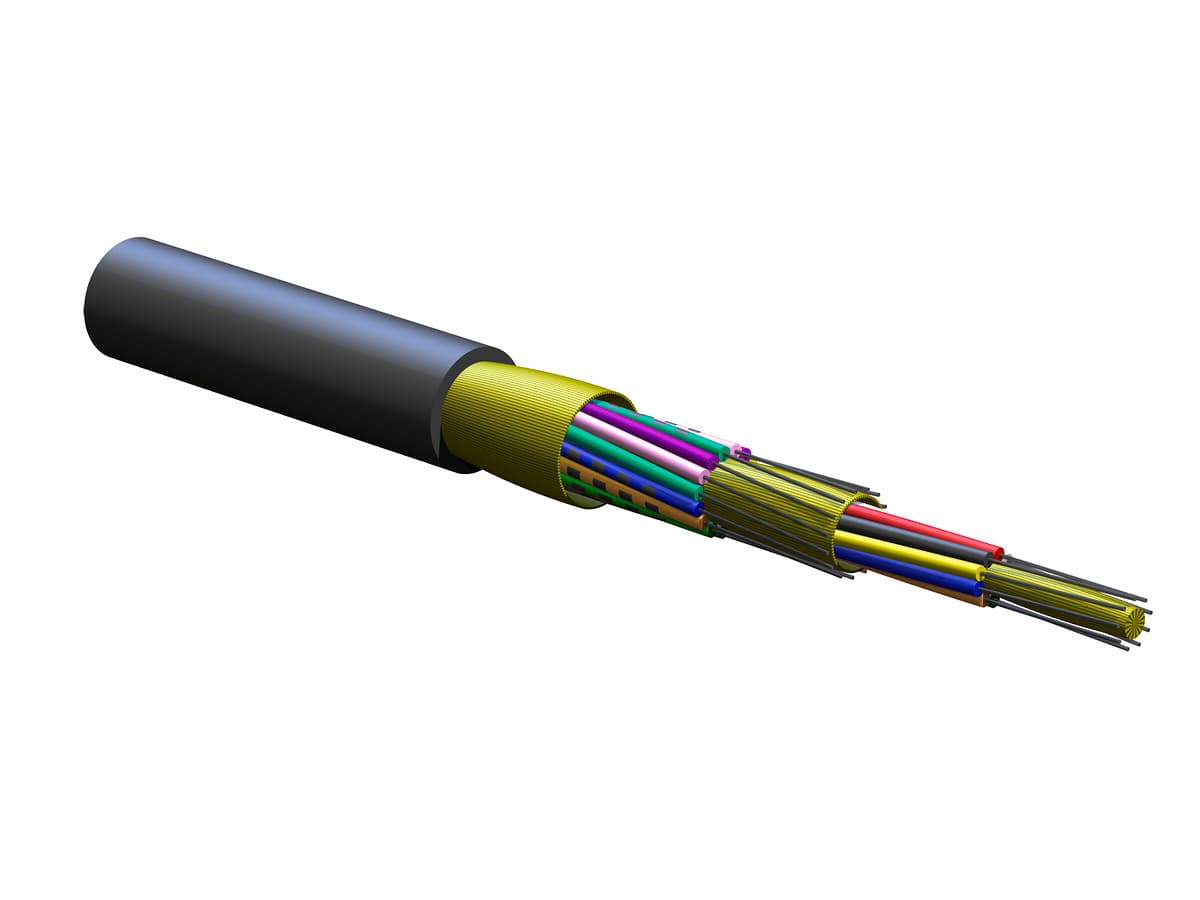

Corning 024K8F-31130-29 Black Fiber Cable Om1 Tight Buffered Indoor/Outdoor

Corning 024K8F-31130-29  Black Fiber Cable Om1 Tight Buffered Indoor/Outdoor

This indoor/outdoor fiber optic cable is a 24-fiber, tight-buffered, dielectric design engineered for versatility and durability. It features OM1 multimode (62.5 µm) fibers with riser (OFNR) flame rating, making it suitable for aerial, duct, riser, and general-purpose applications. The cable is jacketed in a flame-retardant, UV-resistant black sheath with water-swellable strength members for added protection. It provides reliable optical performance with attenuation of 3.4/1.0 dB/km at 850/1300 nm and bandwidth ratings of 200/500 MHz·km, ensuring dependable transmission for Gigabit Ethernet. With robust tensile strength, wide operating temperatures, and compliance with ICEA and NEC standards, this cable is a strong choice for demanding installations.

General Specifications

• Product Number: 024K8F-31130-29

• Cable Type: Tight-Buffered

• Environment: Indoor/Outdoor

• Product Type: Dielectric

• Fiber Category: 62.5 µm MM (OM1)

• Flame Rating: Riser (OFNR)

• Application: Aerial, Duct, General purpose, Horizontal, Riser

• Cable Geometry: Round

Standards

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals and Listings: NEC® OFNP, FT-6

• Design and Test Criteria: ICEA S-104-696

Environmental Conditions

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)

• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)

• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

• Central Element: Dielectric

• Fiber Count: 24

• Outer Jacket Color: Black

• Outer Jacket Material: Flame-Retardant, UV-Resistant

• Tensile Strength Elements / Armoring - Layer 1: Water-swellable strength members

• Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White*, Red*, Black*, Yellow*, Violet*, Rose*, Aqua*

• Flame Rating: Riser (OFNR)

Mechanical Specifications

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)

• Max. Tensile Strength, Short-Term: 1350 N (303.49 lbf)

• Min. Bend Radius Installation: 120 mm (4.72 in)

• Min. Bend Radius Operation: 80 mm (3.15 in)

• Nominal Outer Diameter: 8 mm (0.31 in)

Optical Characteristics

• Fiber Code: K

• Performance Option Code: 30

• Fiber Category: OM1

• Fiber Type: Multimode

• Fiber Name: 62.5 µm MM (OM1)

• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km

• Wavelengths: 850 nm / 1300 nm

• Fiber Compliance: ISO/IEC 11801

• Fiber Core Diameter: 62.5 µm

• Coating Diameter: 242 µm

• Serial 1 Gigabit Ethernet: 300 m / 550 m

• Serial 10 Gigabit Ethernet: 33 m / -

• Minimum Effective Modal Bandwidth (EMB): 220 MHz·km / -

• Min. Overfilled Launch (OFL) Bandwidth: 200 MHz·km / 500 MHz·km

Dimensions

• Cable Weight: 59.1 kg/km (39.71 lb/1000 ft)
