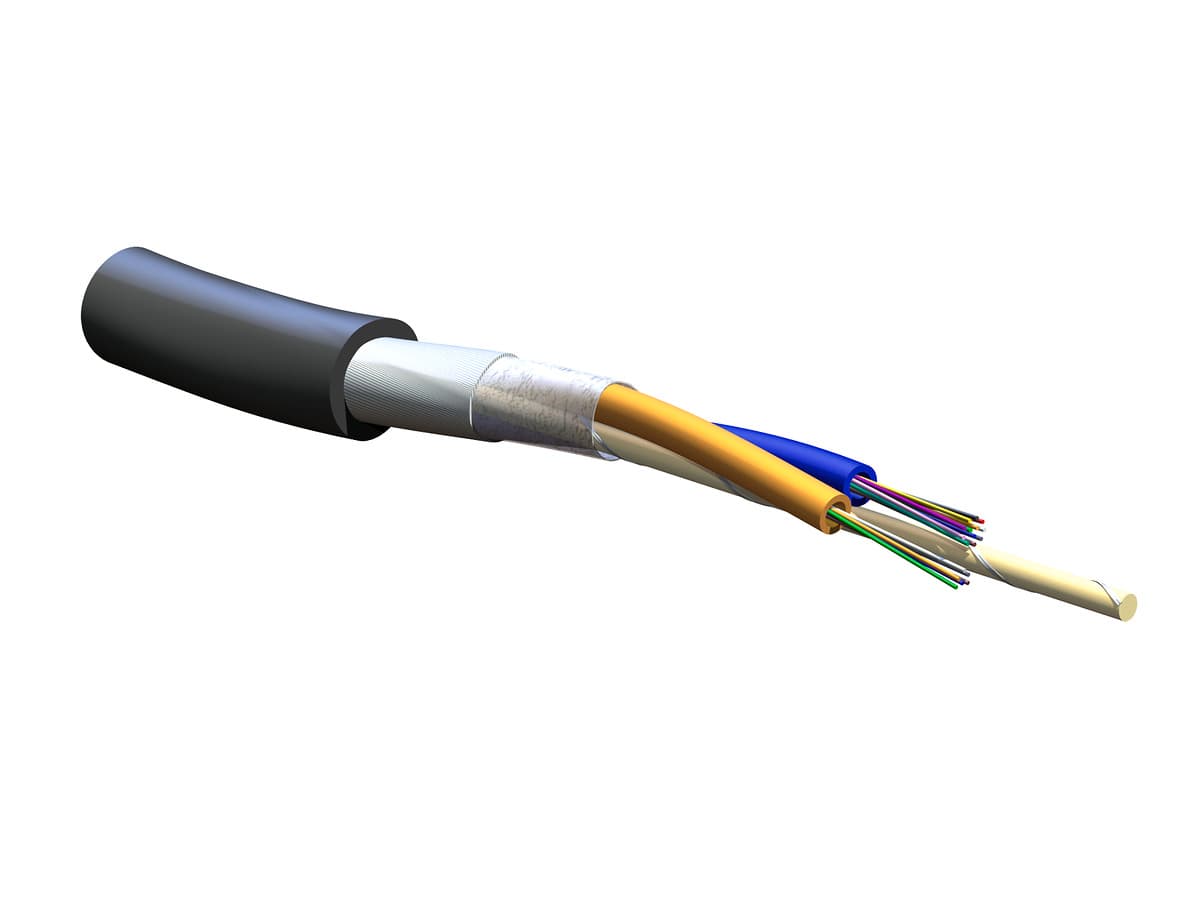

Corning 024KSF-T4130D20 – 24-F 62.5/125 OM1Indoor/Outdoor Riser, Loose Tube, 3.4/1.0 dB/km 200/500 MHz·km FREEDM® LST™

Corning 024KSF-T4130D20 – 24-F 62.5/125 OM1Indoor/Outdoor Riser, Loose Tube, 3.4/1.0 dB/km 200/500 MHz·km FREEDM® LST™

Corning 024KSF-T4130D20 – 24-F 62.5/125 OM1Indoor/Outdoor Riser, Loose Tube, 3.4/1.0 dB/km 200/500 MHz·km FREEDM® LST™

General Specifications

Product Number: 024KSF-T4130D20
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: 62.5 µm MM (OM1)
Flame Rating: Riser (OFNR)
Application: Aerial, Direct Buried, Duct, General Purpose, Horizontal, Riser
Cable Geometry: Round

Standards

RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: NEC® OFCR, CSA OFC FT-4
Common Installations: Outdoor aerial and duct, indoor vertical riser and general purpose horizontal (NEC® Article 770)
Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions

Notes: Corning recommends storing cable in proper temperature environment before installation.
Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

Fiber Count: 24
Number of Ripcords: 1
Outer Jacket Color: Black
Outer Jacket Material: Flame-Retardant, UV-Resistant
Tensile Strength Elements: Dielectric strength members (two layers)
Buffer Tube Color: Blue, Orange
Number of Active Tubes: 2
Number of Tube Positions: 2
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications

Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
Min. Bend Radius Installation: 146 mm (5.75 in)
Min. Bend Radius Operation: 97 mm (3.82 in)
Nominal Outer Diameter: 9.7 mm (0.38 in)
Notes: Outer diameter may vary ± 0.3 mm

Optical Characteristics

Fiber Code: K
Performance Option Code: 30
Fiber Category: OM1
Fiber Type: Multimode
Fiber Name: 62.5 µm MM (OM1)
Maximum Attenuation: 3.4 dB/km (850 nm) / 1.0 dB/km (1300 nm)
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: ISO/IEC 11801
Fiber Core Diameter: 62.5 µm
Coating Diameter: 242 µm
Serial 1 Gigabit Ethernet: 300 m / 550 m
Serial 10 Gigabit Ethernet: 33 m / -
Minimum Effective Modal Bandwidth (EMB): 220 MHz·km / -
Minimum Overfilled Launch (OFL) Bandwidth: 200 MHz·km / 500 MHz·km

Dimensions

Cable Weight: 78 kg/km (52.41 lb/1000 ft)
