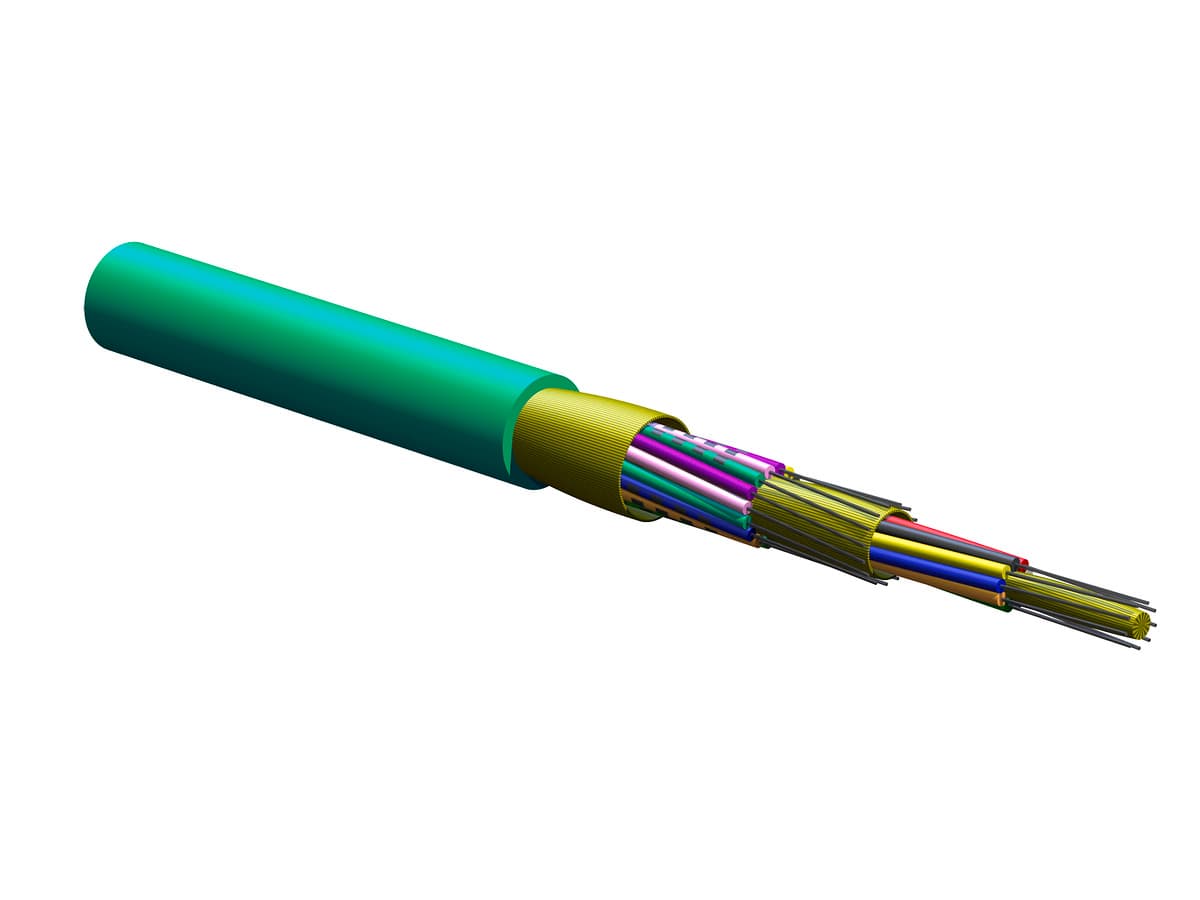

Corning 024T81-33180-A1 – 24-Fiber OM3 Tight-Buffered Riser Cable, 50 µm, MIC AIA, 10G, ClearCurve

Corning 024T81-33180-A1 – 24-Fiber OM3 Tight-Buffered Riser Cable, 50 µm, MIC AIA, 10G, ClearCurve

This 24-fiber tight-buffered OM3 cable delivers high-performance multimode connectivity with a 50 µm core, ideal for horizontal, riser, and plenum indoor applications. The aqua outer jacket is flame-retardant and the cable incorporates dielectric strength members for mechanical protection. It supports 10 Gigabit Ethernet up to 300 m with maximum attenuation of 2.8 dB/km at 850 nm and 1.0 dB/km at 1300 nm, and provides an effective modal bandwidth (EMB) of 2000 MHz*km. Designed for indoor riser environments, it ensures reliable long-term tensile strength of 400 N and short-term tensile strength of 1320 N with a minimum bend radius of 110.25 mm during installation. Optimized for high-speed networks, this ClearCurve cable delivers superior bend performance while maintaining robust OM3 multimode standards.

General Specifications
Product Number: 024T81-33180-24
Cable Type: Tight-Buffered
Environment: Indoor
Product Type: Distribution
Fiber Category: 50 µm MM (OM3)
Flame Rating: Riser (OFNR)
Application: Horizontal, Plenum, Riser
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: NEC® OFNR, UL-1666, CSA FT-4
Design and Test Criteria: ICEA S-83-596

Environmental Conditions
Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
Temperature Range, Operation: -20 °C to 70 °C (-4 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Yarn
Fiber Count: 24
Outer Jacket Color: Aqua
Outer Jacket Material: Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
Tight Buffer Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow

Mechanical Specifications
Max. Tensile Strength, Long-Term, ≤12F: 200 N (44.96 lbf)
Max. Tensile Strength, Long-Term, >12F: 400 N (89.92 lbf)
Max. Tensile Strength, Short-Term, ≤12F: 660 N (148.37 lbf)
Max. Tensile Strength, Short-Term, >12F: 1320 N (296.75 lbf)
Min. Bend Radius Installation: 110.25 mm (4.34 in)
Min. Bend Radius Operation: 73.5 mm (2.89 in)
Nominal Outer Diameter: 7.35 mm (0.29 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 80
Fiber Category: OM3
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM3)
Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 300 m / -
Minimum Effective Modal Bandwidth (EMB): 2000 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 1500 MHzkm / 500 MHz*km

Dimensions
Cable Weight: 47 kg/km (31.58 lb/1000 ft)
