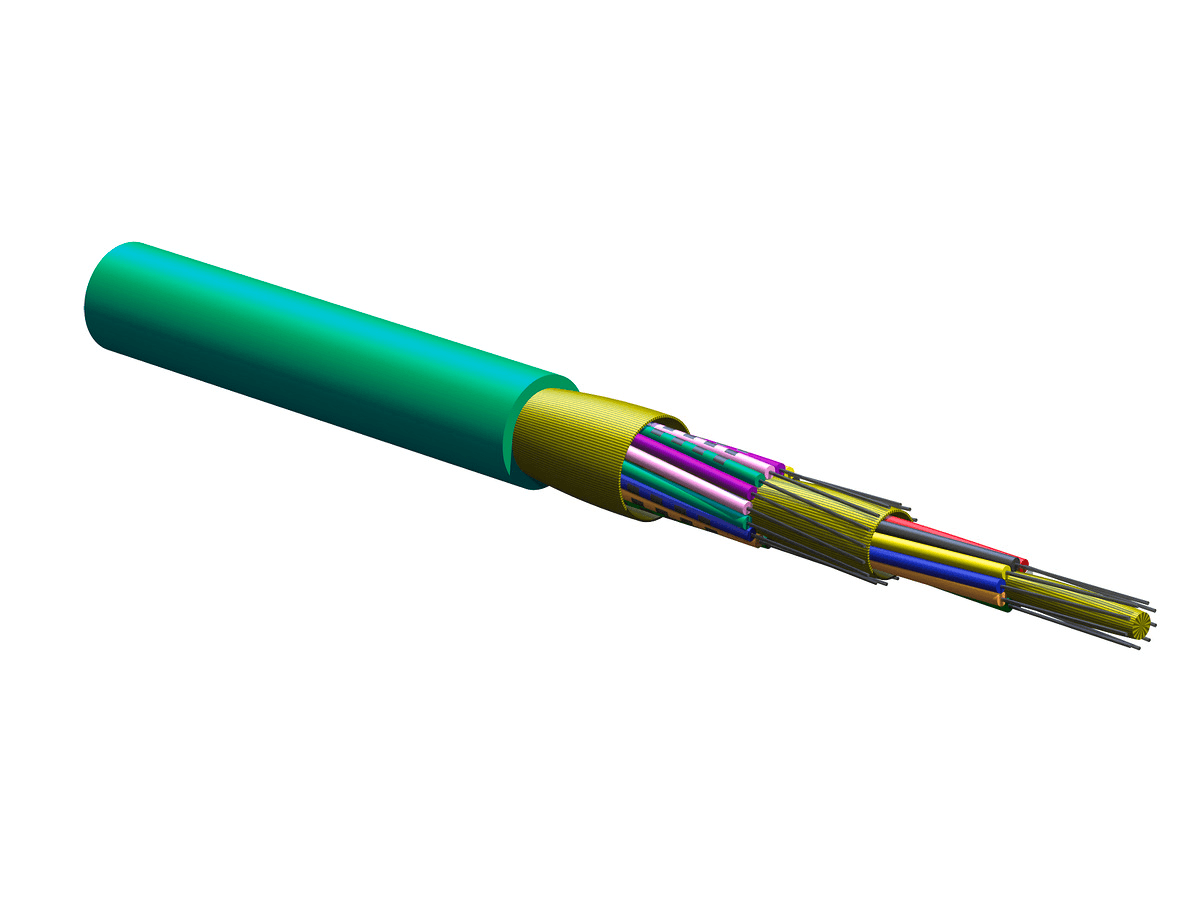

Corning 024T81-33191-24, MIC® 24 F Riser Tight-Buffered Cable, 50 µm multimode, extended 10G distance (OM4)

Corning 024T81-33191-24, MIC® 24 F Riser Tight-Buffered Cable, 50 µm multimode, extended 10G distance (OM4)

General Specifications

• Product Number: 024T81-33191-24

• Cable Type: Tight-Buffered

• Environment: Indoor

• Product Type: Distribution

• Fiber Category: 50 µm MM (OM4+)

• Flame Rating: Riser (OFNR)

• Application: Horizontal, Riser

• Cable Geometry: Round

Standards & Compliance

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals & Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4

• Design & Test Criteria: ICEA S-83-596

Environmental Conditions

• Temperature Range (Installation): -10 °C to 60 °C (14 °F to 140 °F)

• Temperature Range (Operation): -20 °C to 70 °C (-4 °F to 158 °F)

• Temperature Range (Storage): -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design

• Central Element: Yarn

• Fiber Count: 24

• Outer Jacket Color: Aqua

• Outer Jacket Material: Flame-retardant

• Tensile Strength Elements – Layer 1: Dielectric strength members

• Tensile Strength Elements – Layer 2: Dielectric strength members

Tight Buffer Colors

• Layer 1: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow

• Layer 2: Violet, Rose, Aqua, Blue*, Orange*, Green*, Brown*, Slate*, White*, Red*, Black*, Yellow*, Violet*, Rose*, Aqua*

• Flame Rating: Riser (OFNR)

Mechanical Specifications

• Max. Tensile Strength (Long-Term, ≤12F): 200 N (44.96 lbf)

• Max. Tensile Strength (Long-Term, >12F): 400 N (89.92 lbf)

• Max. Tensile Strength (Short-Term, ≤12F): 660 N (148.37 lbf)

• Max. Tensile Strength (Short-Term, >12F): 1320 N (296.75 lbf)

• Min. Bend Radius (Installation): 110.25 mm (4.34 in)

• Min. Bend Radius (Operation): 73.5 mm (2.89 in)

• Nominal Outer Diameter: 7.35 mm (0.29 in)

Optical Characteristics

• Fiber Code: T

• Performance Option Code: 91

• Fiber Category: OM4 Extended Distance

• Fiber Type: Multimode

• Fiber Name: 50 µm MM (OM4+)

• Maximum Attenuation: 2.8 dB/km @ 850 nm / 1.0 dB/km @ 1300 nm

• Wavelengths: 850 nm / 1300 nm

• Fiber Compliance: IEC 60793-2-10

• Fiber Core Diameter: 50 µm

• Serial 1 Gigabit Ethernet: 1100 m (850 nm) / 600 m (1300 nm)

• Serial 10 Gigabit Ethernet: 600 m / -

• Minimum Effective Modal Bandwidth (EMB): 5350 MHz·km / -

• Min. Overfilled Launch (OFL) Bandwidth: 3500 MHz·km @ 850 nm / 500 MHz·km @ 1300 nm

Dimensions

• Cable Weight: 47 kg/km (31.58 lb/1000 ft)
