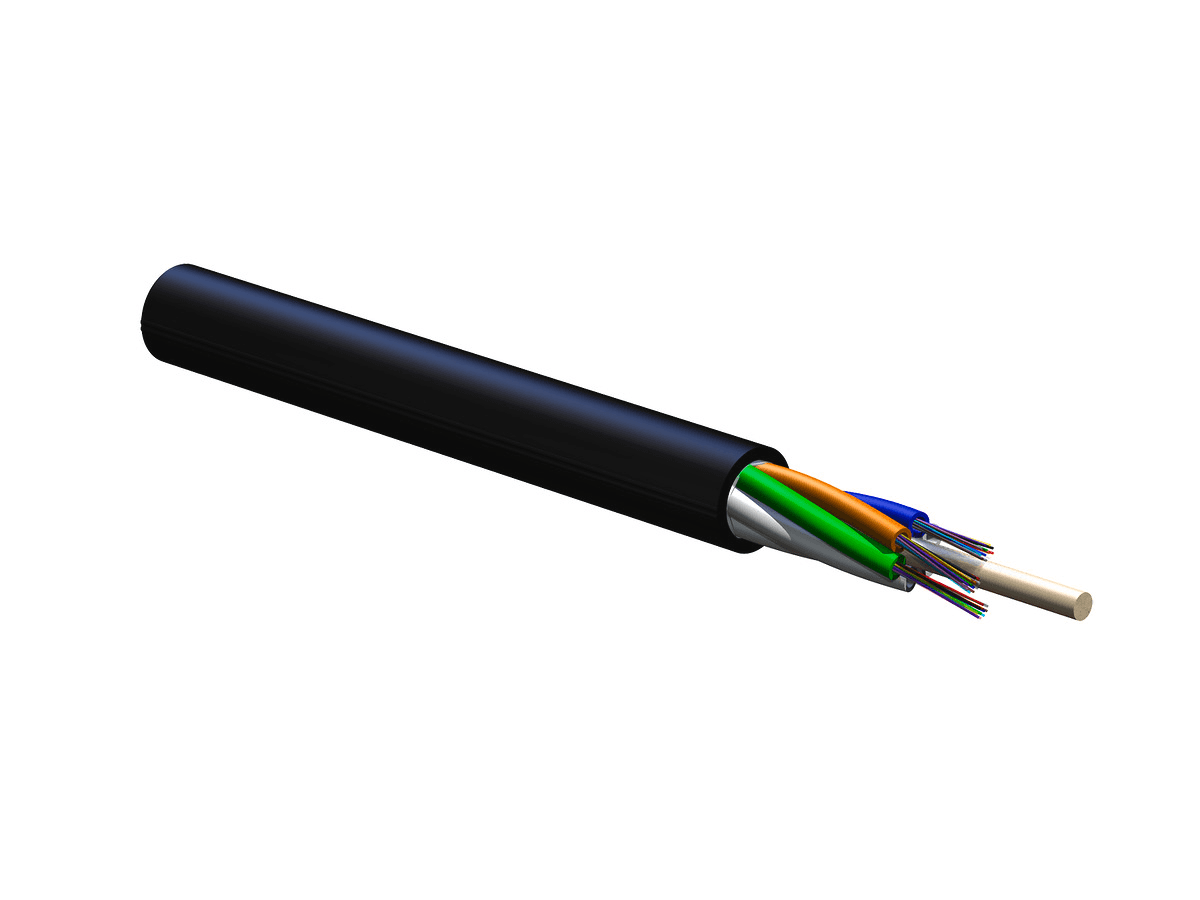

Corning 036ZU4-T4F22D20, 36 F ALTOS® Loose Tube Gel-Free All-Dielectric Cables with FastAccess® Technology, SMF-28® Ultra fiber Single-mode (OS2) Binderless

Corning 036ZU4-T4F22D20, 36 F ALTOS® Loose Tube Gel-Free All-Dielectric Cables with FastAccess® Technology, SMF-28® Ultra fiber Single-mode (OS2) Binderless

Summary: Corning 036ZU4-T4F22D20 is a 36 F ALTOS® Loose Tube Gel-Free All-Dielectric Cable designed for outdoor use, featuring Single-mode (OS2) fiber and suitable for aerial and duct applications.

General Specifications:

• Product Number: 036ZU4-T4F22D20
• Cable Type: Loose Tube
• Environment: Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Application: Aerial, Duct
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Common Installations: Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-87-640, Telcordia GR-20, RDUP PE-90

Environmental Conditions:

• Notes: Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results.
• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Cable Print Unit of Measure: Feet
• Cable Marking: Feet - Handset - Sine - CORNING OPTICAL CABLE - Year - 36 F, SMF-28® Ultra fiber, with ALTOS (R) CABLE WITH BINDERLESS FAST ACCESS TECHNOLOGY
• Central Element: Dielectric
• Fiber Count: 36
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Buffer Tube Color: Blue, Orange, Green
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Number of Active Tubes: 3
• Number of Filling Elements: 3
• Number of Tube Positions: 6
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• SAP Powder: Water-swellable
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Nominal Outer Diameter: 10.2 mm (0.4 in )
• Min. Bend Diameter Installation: 306 mm (12.05 in)
• Min. Bend Diameter Operation: 204 mm (8.03 in)

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 22
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.34 dB/km / 0.34 dB/km / 0.22 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 64.3 kg/km (43.21 lb/1000 ft)
