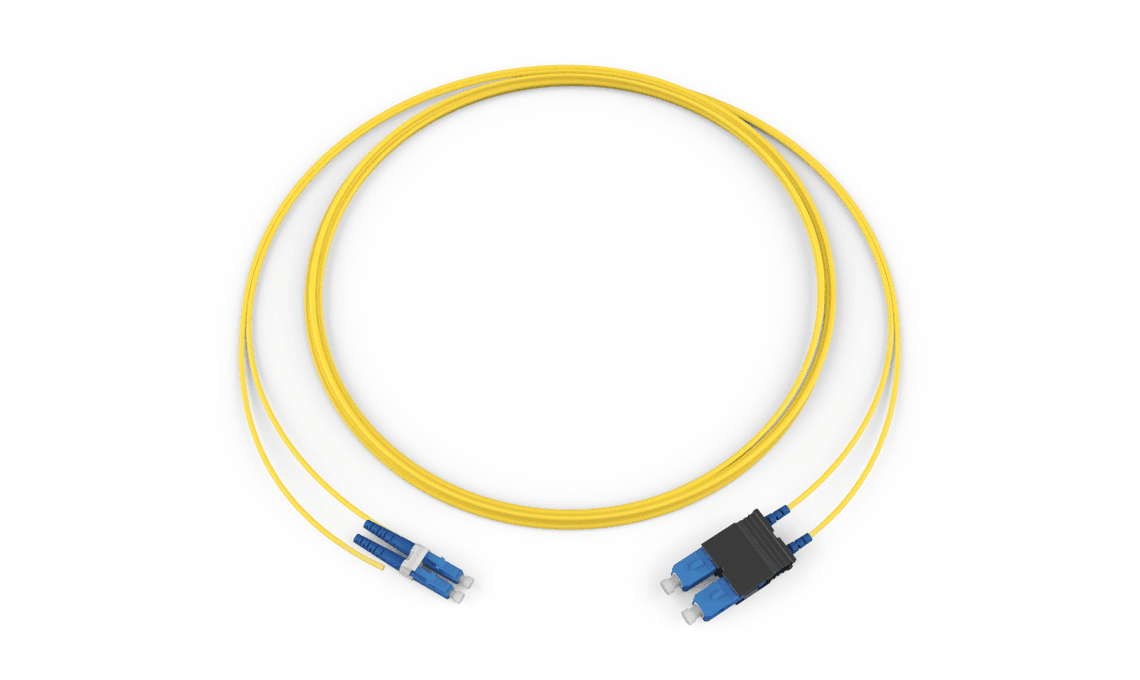

Corning 047202G5120008M, Standard LCUPC SCUPC Duplex SM 2F 8 Meters

Corning 047202G5120008M is an indoor 2-fiber jumper cable assembly featuring OS2 bend-improved single-mode fiber and a yellow zipcord jacket. It is 8 Meters long and uses a duplex LC UPC connector on End A and a duplex SC UPC connector on End B. Both ends are standard, non-keyed. This assembly has a Riser flame rating and is listed as BEAD/BABA - Not Compliant.

Technical Specs

Brand	Corning
Catalog Code	047202G5120008M
Product Category	2 Fiber
Indoor/Outdoor	Indoor
CAB Market	CN
Fiber Type	OS2 Bend-improved SM
Fiber Mode	Single-Mode
Fiber Count	2F
Cable Type	Zipcord
Cable Outer Diameter	3.37 MM
Furcation A Outer Diameter	2.0 mm
Furcation B Outer Diameter	2.0 mm
Length	8
Unit of Measure	Meters
Jacket Color	Yellow
Flame Rating	Riser
Connector End A	LC UPC duplex
End A Pairing	Duplex
End A Keying	Non-Keyed
End A Color	Standard
Connector End B	SC UPC duplex
End B Pairing	Duplex
End B Keying	Non-Keyed
End B Color	Standard
Program Compliance	BEAD/BABA - Not Compliant
Program Message	CONTACT CUSTOMER OPERATIONS FOR SUPPORT WITH BEAD/BABA EQUIVALENT PN: 047202G5120008M-US

Applications

• Enables indoor patching and cross-connect setups requiring a duplex LC UPC to duplex SC UPC connection.
• Simplifies routing and identification in racks and panels with zipcord construction and a yellow jacket.
• Delivers reach for rack-to-rack or panel-to-equipment runs with an 8 Meters length.
