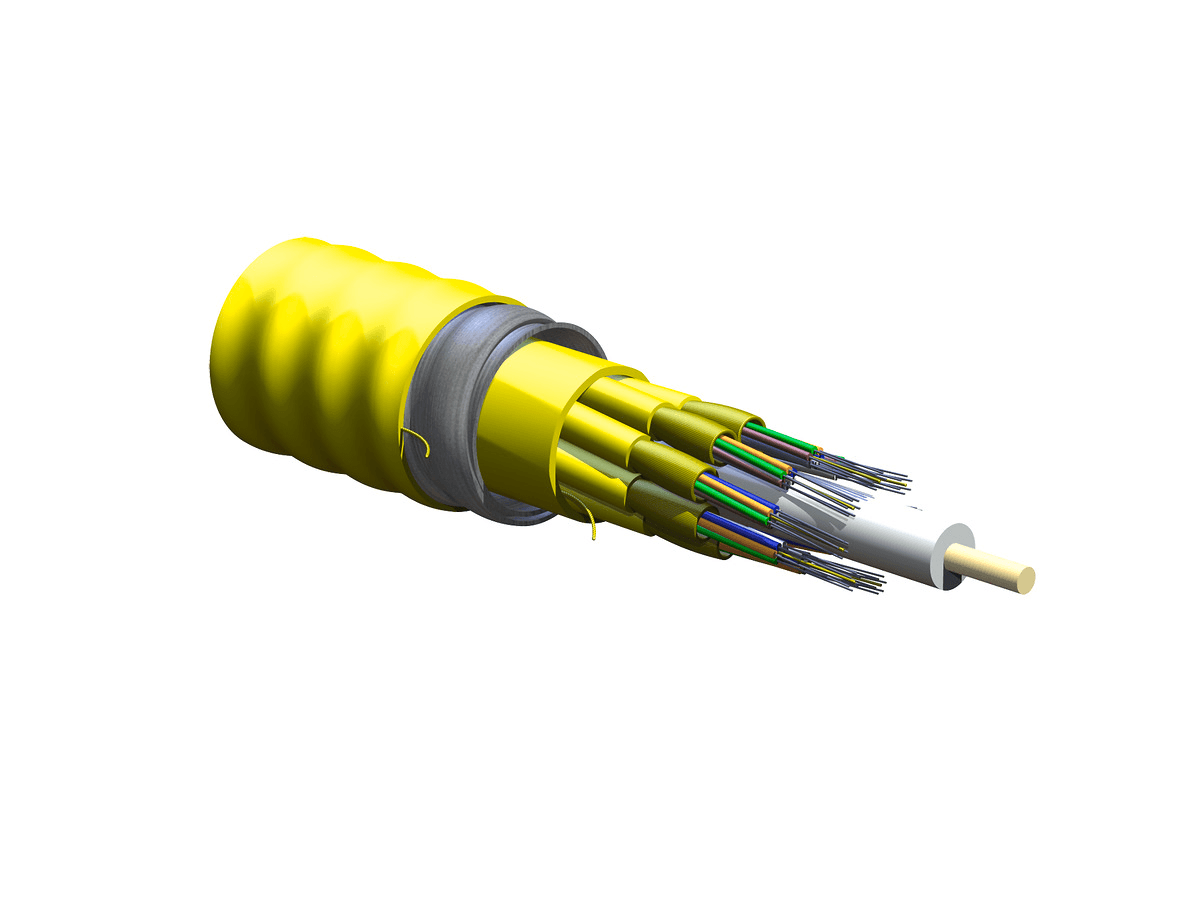

Corning 048E88-61131-A3, Plenum 48 F Single-mode (OS2) MIC® Interlocking Armored Cable Unitized Tight-Buffered

Corning 048E88-61131-A3, Plenum 48 F Single-mode (OS2) MIC® Interlocking Armored Cable Unitized Tight-Buffered

Summary: The Corning 048E88-61131-A3 is a plenum-rated, single-mode interlocking armored cable designed for indoor use. It features tight-buffered construction with 48 fibers and meets various standards for safety and performance.

General Specifications:

• Product Number: 048E88-61131-A3
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Interlocking Armor
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFCP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCP, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Jacketed GRP
• Fiber Count: 48
• Number of Ripcords: 10
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Fibers per Subunit: 6
• Number of Active Tubes: 8
• Subunit Color: Yellow
• Subunit Diameter: 4.4 mm (0.17 in)
• Tight Buffer Color Subunit: Blue, Orange, Green, Brown, Slate, White
• Flame Rating: Plenum (OFCP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)
• Max. Tensile Strength, Short-Term: 660 N (148.37 lbf)
• Min. Bend Radius Installation: 374 mm (14.72 in)
• Min. Bend Radius Operation: 249 mm (9.8 in)
• Nominal Inner Cable Diameter: 17.8 mm (0.7 in)
• Nominal Outer Diameter: 24.9 mm (0.98 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 4969 kg/km (3339.01 lb/1000 ft)
