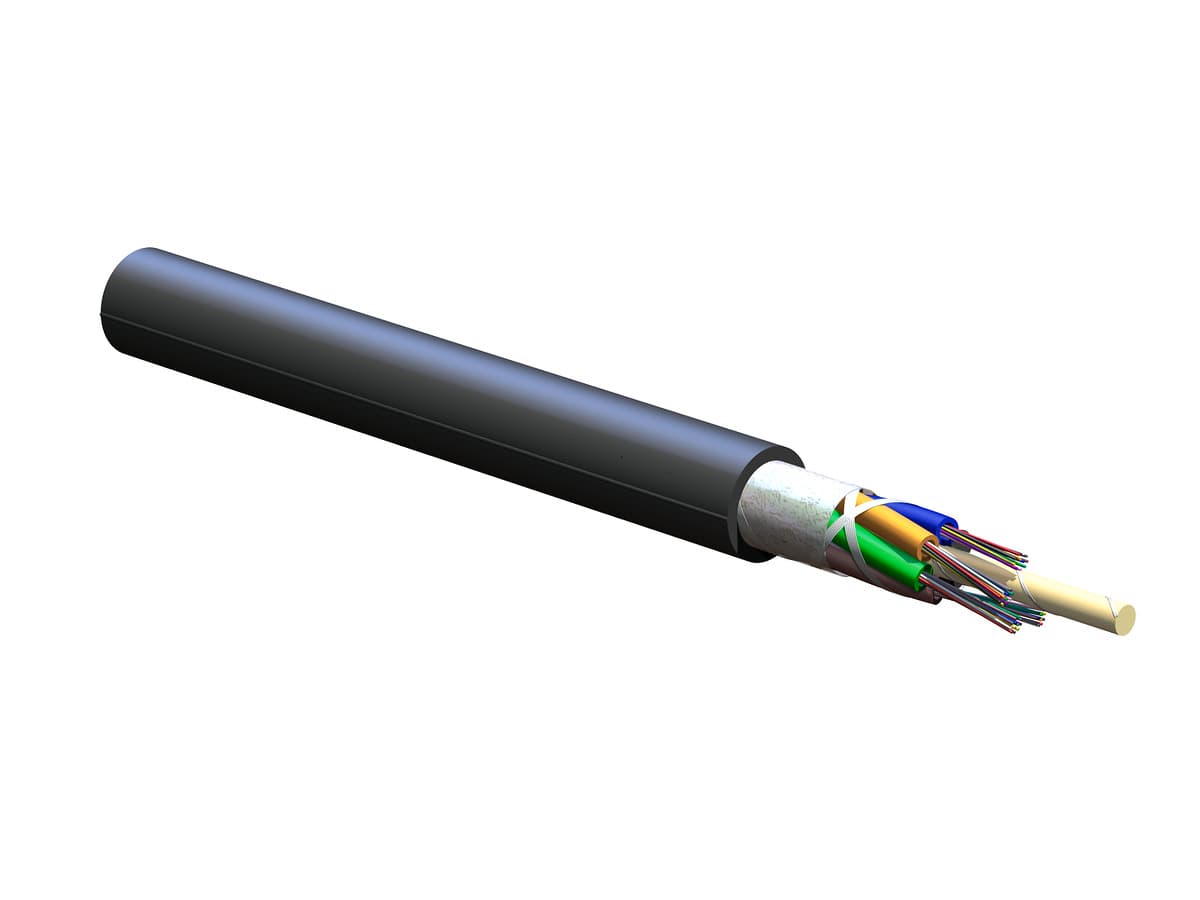

Corning 048KU4-T4730D20 – 48-F OM1 62.5 µm LT Duct/Aerial Outdoor, Gel-Free, 3.4/1.0 dB/km, Altos Fast Access

Corning 048KU4-T4730D20 – 48-F OM1 62.5 µm LT Duct/Aerial Outdoor, Gel-Free, 3.4/1.0 dB/km, Altos Fast Access

This 48-fiber OM1 loose tube cable is designed for outdoor duct and aerial installations, featuring a gel-free construction for simplified handling and rapid deployment. The cable has a dielectric central element and a robust black polyethylene jacket for environmental protection while maintaining optical performance. Water-swellable tape offers moisture resistance, and the fibers are color-coded according to Telcordia standards for easy identification. Supporting 62.5 µm multimode OM1 performance, it delivers low attenuation at 850/1300 nm and sufficient bandwidth for 1 Gigabit Ethernet over 300–550 meters. With high tensile strength and ANSI/ICEA S-87-640 compliance, this cable is ideal for reliable, long-term outdoor network infrastructure.

General Specifications
Product Number: 048KU4-T4730D20
Cable Type: Loose Tube
Environment: Outdoor
Product Type: Dielectric
Fiber Category: 62.5 µm MM (OM1)
Application: Aerial, Duct
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Common Installations: Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code® (NEC®) Article 770
Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions
Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 48
Outer Jacket Color: Black
Outer Jacket Material: Polyethylene (PE)
Buffer Tube Color: Blue, Orange, Green, Brown
Buffer Tube Diameter: 2.5 mm (0.1 in)
Number of Active Tubes: 4
Number of Filling Elements: 2
Number of Tube Positions: 6
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)
Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
Nominal Outer Diameter: 10.5 mm (0.41 in)
Min. Bend Diameter Installation: 316 mm (12.44 in)
Min. Bend Diameter Operation: 210 mm (8.27 in)

Optical Characteristics
Fiber Code: K
Performance Option Code: 30
Fiber Category: OM1
Fiber Type: Multimode
Fiber Name: 62.5 µm MM (OM1)
Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: ISO/IEC 11801
Fiber Core Diameter: 62.5 µm
Coating Diameter: 242 µm
Serial 1 Gigabit Ethernet: 300 m / 550 m
Serial 10 Gigabit Ethernet: 33 m / -
Minimum Effective Modal Bandwidth (EMB): 220 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 200 MHzkm / 500 MHz*km

Dimensions
Cable Weight: 73 kg/km (49.05 lb/1000 ft)
