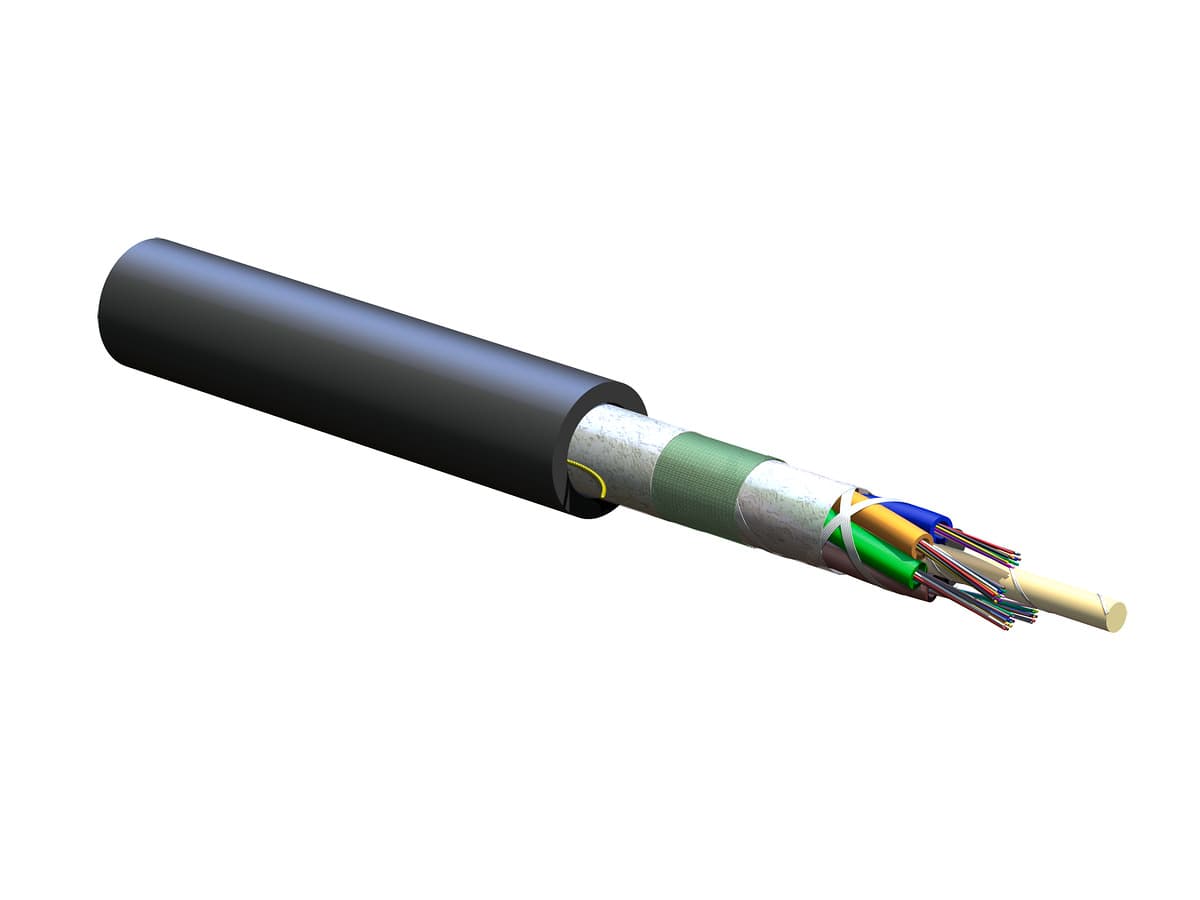

Corning 048TUZ-T4180D20 — 48-F OM3 LSZH Indoor/Outdoor 3.0/1.0 dB/km 850/1300nm ALTOS

Corning 048TUZ-T4180D20 — 48-F OM3 LSZH Indoor/Outdoor 3.0/1.0 dB/km 850/1300nm ALTOS

The cable offers high-performance multimode connectivity with 50 µm OM3 fibers, designed for both aerial and direct-buried installations as well as indoor general-purpose horizontal runs. Featuring a flame-retardant, low-smoke zero-halogen (LSZH) jacket, it meets stringent NEC, IEC, and IEEE safety standards for riser-rated and direct burial use. The cable has a robust loose tube design with four active buffer tubes, each holding 12 color-coded fibers, protected by multiple water-swellable and flame-retardant layers for durability in harsh environments. It supports 3.0 dB/km attenuation at 850 nm and 1.0 dB/km at 1300 nm, ensuring excellent performance for Gigabit and 10 Gigabit Ethernet over extended distances. With a compact 12.8 mm outer diameter and a high tensile strength rating, it’s an ideal choice for high-density, long-life fiber network deployments.

General Specifications
Product Number: 048TUZ-T4180D20
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: 50 µm MM (OM3)
Flame Rating: LSZH (OFN-LS)
Application: Aerial, Direct Buried, Duct, General purpose, Horizontal
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034
Common Installations: Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770
Design and Test Criteria: ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2, No. 230 and No. 232, CSA OFC (FT-4-S1)

Environmental Conditions
Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 48
Number of Ripcords: 2
Outer Jacket Color: Black
Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
Buffer Tube Color: Blue, Orange, Green, Brown
Buffer Tube Diameter: 2.5 mm (0.1 in)
Number of Active Tubes: 4
Number of Filling Elements: 2
Number of Tube Positions: 6
Tape: Water-swellable
Tape, Layer 2: Flame-retardant tape
Tape, Layer 3: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
Min. Bend Radius Installation: 192 mm (7.56 in)
Min. Bend Radius Operation: 128 mm (5.04 in)
Nominal Outer Diameter: 12.8 mm (0.5 in)

Optical Characteristics
Fiber Code: T
Performance Option Code: 80
Fiber Category: OM3
Fiber Type: Multimode
Fiber Name: 50 µm MM (OM3)
Maximum Attenuation: 3.0 dB/km / 1.0 dB/km
Wavelengths: 850 nm / 1300 nm
Fiber Compliance: IEC 60793-2-10
Fiber Core Diameter: 50 µm
Serial 1 Gigabit Ethernet: 1000 m / 600 m
Serial 10 Gigabit Ethernet: 300 m / -
Minimum Effective Modal Bandwidth (EMB): 950 MHzkm / -
Min. Overfilled Launch (OFL) Bandwidth: 1500 MHzkm / - 500 MHz*km

Dimensions
Cable Weight: 152 kg/km (102.14 lb/1000 ft)
