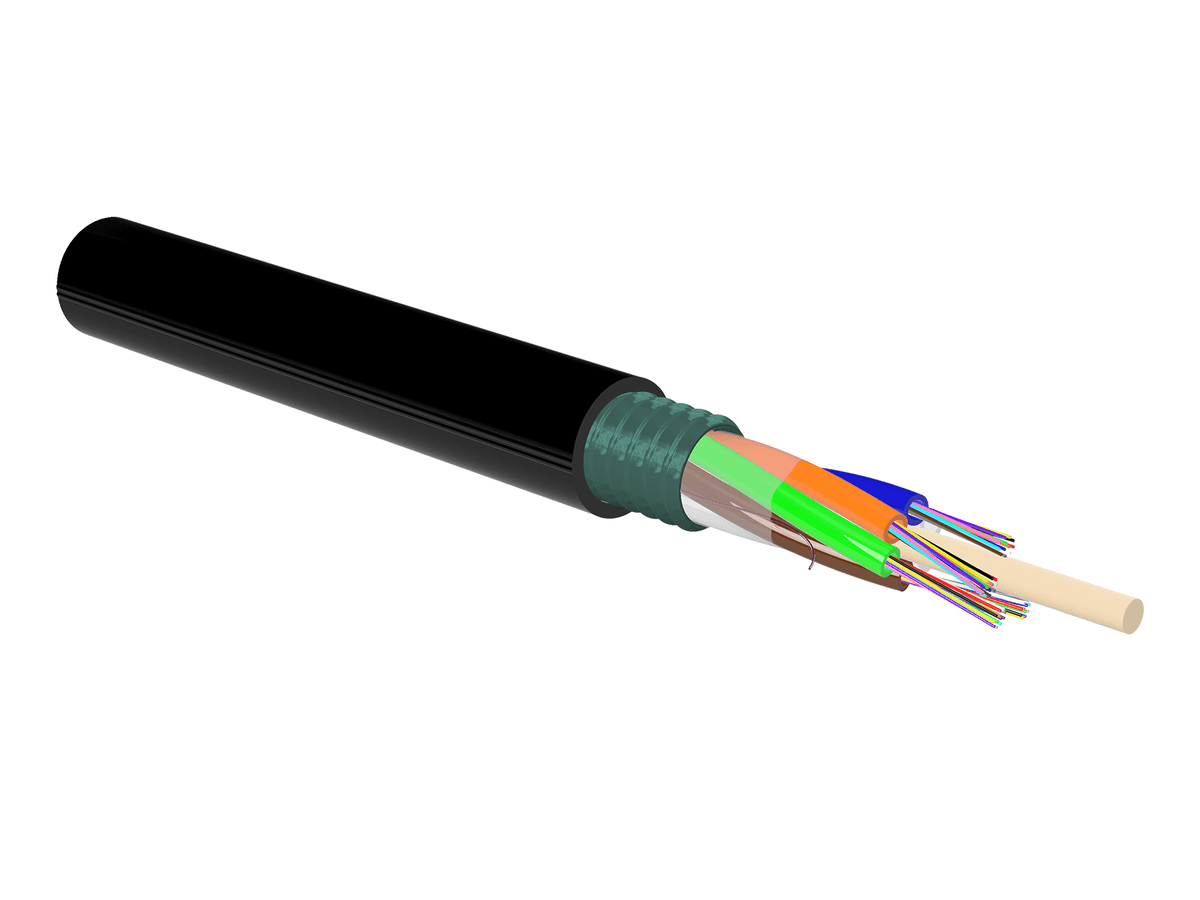

Corning 048ZUC-T4F22D20, 48 F ALTOS® Lite Loose Tube Single-mode (OS2) Gel-Free Single-Jacket Single-Armored Cables with FastAccess® Technology, SMF-28® Ultra fiber

Corning 048ZUC-T4F22D20, 48 F ALTOS® Lite Loose Tube Single-mode (OS2) Gel-Free Single-Jacket Single-Armored Cables with FastAccess® Technology, SMF-28® Ultra fiber

Summary: This Corning 048ZUC-T4F22D20 cable is a 48 F ALTOS® Lite Loose Tube Single-mode (OS2) Gel-Free Single-Jacket Single-Armored Cable suitable for outdoor use in aerial, direct buried, and duct applications.

General Specifications:

• Product Number: 048ZUC-T4F22D20
• Cable Type: Loose Tube
• Environment: Outdoor
• Product Type: Interlocking Armor
• Fiber Category: SMF-28® Ultra
• Application: Aerial, Direct Buried, Duct
• Cable Geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Common Installations: Outdoor lashed aerial, duct and direct-buried, indoor when installed according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-87-640

Environmental Conditions:

• Notes: Corning recommends storing cable in a proper temperature environment prior to installation to allow the cable temperature to meet installation temperature range specifications for best installation results
• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 48
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Corrugated steel tape armor
• Buffer Tube Color: Blue, Orange, Green, Brown
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Number of Active Tubes: 4
• Number of Filling Elements: 2
• Number of Tube Positions: 6
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• SAP Powder: Water-swellable
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Nominal Outer Diameter: 11.7 mm (0.46 in )
• Min. Bend Diameter Installation: 352 mm (13.86 in)
• Min. Bend Diameter Operation: 234 mm (9.21 in)

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 22
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.34 dB/km / 0.34 dB/km / 0.22 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 120 kg/km (80.64 lb/1000 ft)
