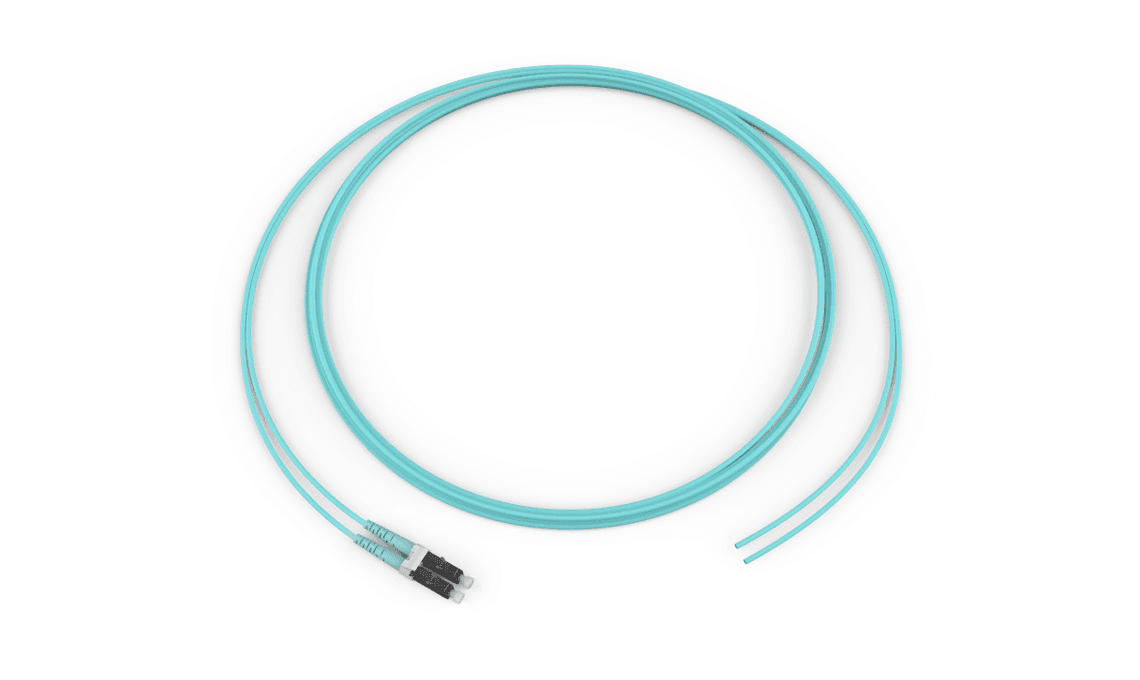

Corning 050502Q5820004M, LC Duplex MM OM4 50um 2F 4 Meters
SKU:050502Q5820004M
$37.30/ each
● In stock
Description
Corning 050502Q5820004M is an indoor OM4 MM multimode fiber jumper with a 2 fiber zipcord design and a plenum flame rating. It is 4 Meters long and features an aqua cable color for identification and routing. This jumper is terminated with LC PC duplex connectors on both ends.
Technical Specs
| Brand | Corning |
|---|---|
| Catalog Code | 050502Q5820004M |
| Product Category | 2 Fiber |
| Raw Data | Jumper Cable Assembly |
| Indoor/Outdoor | Indoor |
| Unit of Measure | Meters |
| Fiber Type | OM4 MM |
| Fiber Mode | Multimode |
| Cable Type | Zipcord |
| Length | 4 |
| Cable Outer Diameter | 3.37 MM |
| Cable Color | Aqua |
| Flame Rating | Plenum |
| Connector A | LC PC duplex |
| Connector A Pairing | Duplex |
| Connector A Keying | Non-Keyed |
| Connector A Color | Standard |
| Connector B | LC PC duplex |
| Connector B Pairing | Duplex |
| Connector B Keying | Non-Keyed |
| Connector B Color | Standard |
| Furcation A Outer Diameter | 2.0 mm |
| Furcation B Outer Diameter | 2.0 mm |
| Program Compliance | BEAD/BABA - Not Compliant |
| Program Message | No BEAD/BABA replacement available |
Applications
- Supports indoor multimode fiber patching with LC PC duplex connections on both ends.
- Improves organization and routing of duplex fiber runs using zipcord construction and an aqua cable color for easier identification.
- Meets installations that call for a plenum flame rating.
