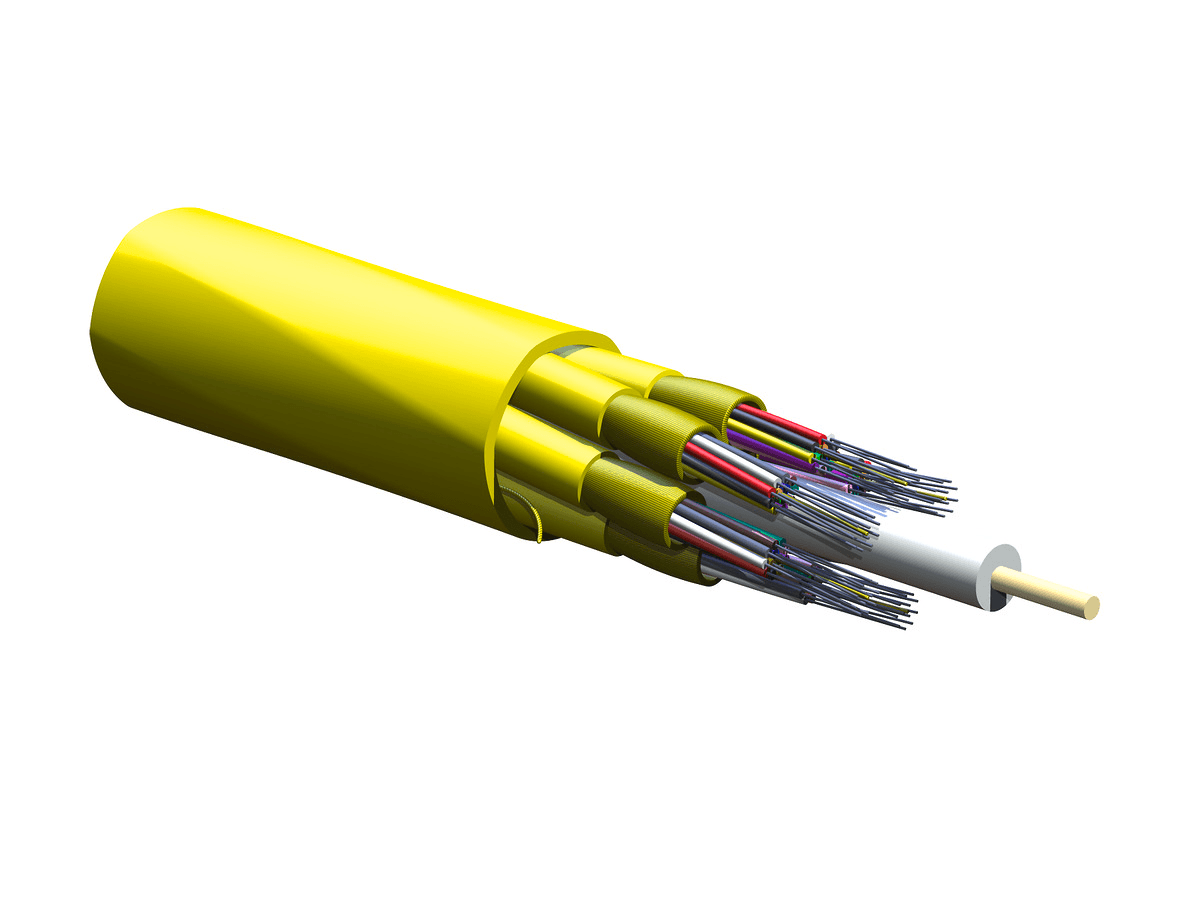

Corning 072E88-T3131-29, Single-mode (OS2) MIC® Unitized Tight-Buffered Cable, Plenum 72 F

Corning 072E88-T3131-29, Single-mode (OS2) MIC® Unitized Tight-Buffered Cable, Plenum 72 F

Summary: This Single-mode (OS2) MIC® Unitized Tight-Buffered Cable is designed for indoor distribution applications with a plenum flame rating. It features a round cable geometry and meets various environmental and mechanical specifications.

General Specifications:

• Product Number: 072E88-T3131-29
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Distribution
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNP, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Jacketed GRP
• Fiber Count: 72
• Number of Ripcords: 7
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Fibers per Subunit: 12
• Number of Active Tubes: 6
• Subunit Color: Yellow
• Subunit Diameter: 5.55 mm (0.22 in)
• Tight Buffer Color Subunit: Blue, Orange, Green
• Tight-Buffer Color Subunit, Layer 1: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1320 N (296.75 lbf)
• Min. Bend Radius Installation: 279 mm (10.98 in)
• Min. Bend Radius Operation: 186 mm (7.32 in)
• Nominal Outer Diameter: 18.6 mm (0.73 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 317.7 kg/km (213.48 lb/1000 ft)
