Corning 072ECF-14101-20, Single-mode (OS2) Riser 72 F Gel-Filled Cable FREEDM Ribbon

Corning 072ECF-14101-20, Single-mode (OS2) Riser 72 F Gel-Filled Cable FREEDM Ribbon

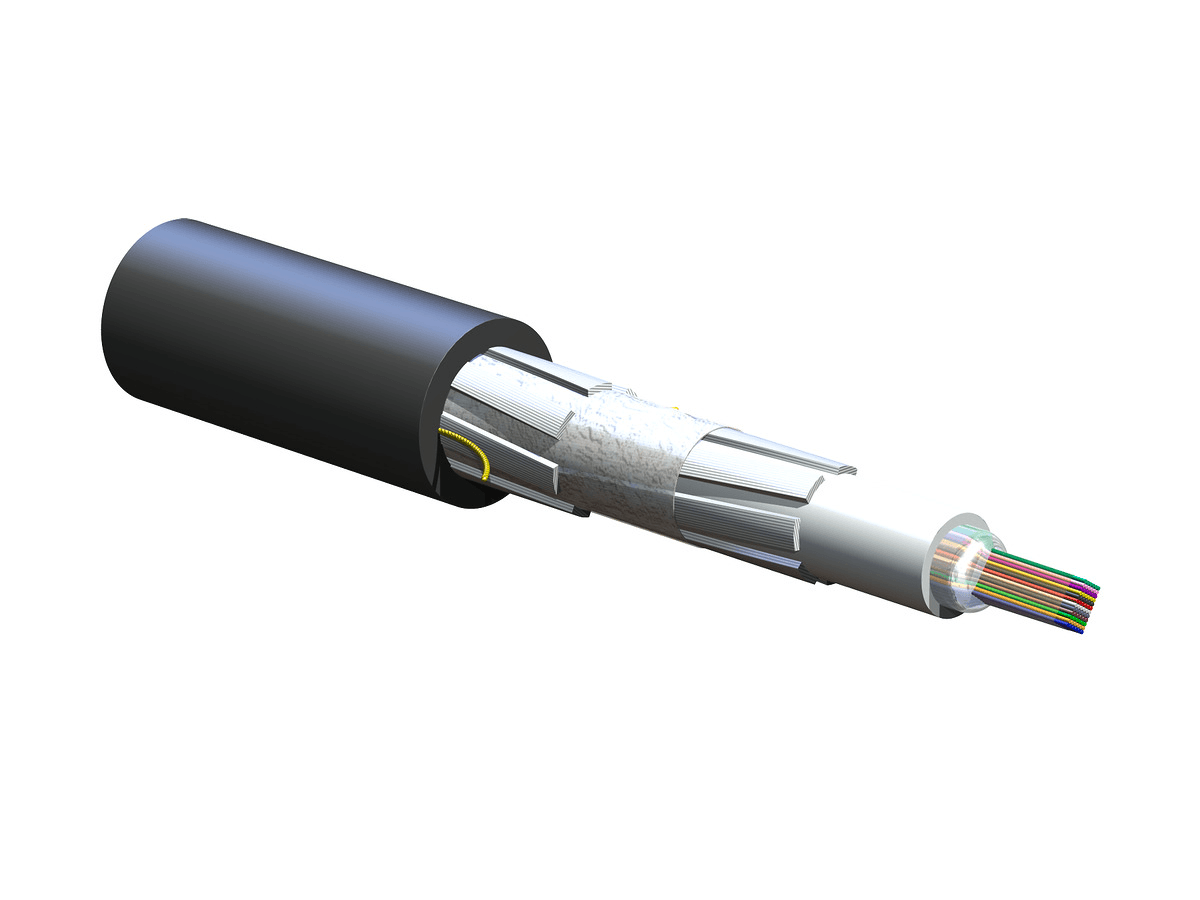

Summary: The Corning 072ECF-14101-20 is a single-mode (OS2) riser 72 F gel-filled cable designed for indoor/outdoor use with dielectric properties. It features a round cable geometry and is suitable for aerial, horizontal, riser, duct, and direct buried applications.

General Specifications:

• Product Number: 072ECF-14101-20
• Cable Type: Ribbon
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFNR)
• Application: Aerial, Horizontal, Riser, Duct, Direct Buried
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, CSA FT-4
• Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Buffer Tube Color: Natural
• Fiber Count: 72
• Buffer Tube Diameter: 67 mm (2.64 in)
• Number of Ripcords: 2
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tensile Strength Elements and/or Armoring - Layer 2: Dielectric strength members
• Tape: Water-swellable
• Ribbons per Tube: 6
• Fibers per Ribbon: 12

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 600 N (134.89 lbf)
• Max. Tensile Strength, Short-Term: 600 N (134.89 lbf)
• Min. Bend Radius Installation: 191 mm (7.52 in)
• Min. Bend Radius Operation: 127 mm (5 in)
• Nominal Outer Diameter: 12.7 mm (0.5 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 157 kg/km (105.5 lb/1000 ft)
