Corning 072EUF-T4101D20, Single-mode (OS2) FREEDM® Loose Tube Gel-Free Cable Riser 72 F

Corning 072EUF-T4101D20, Single-mode (OS2) FREEDM® Loose Tube Gel-Free Cable Riser 72 F

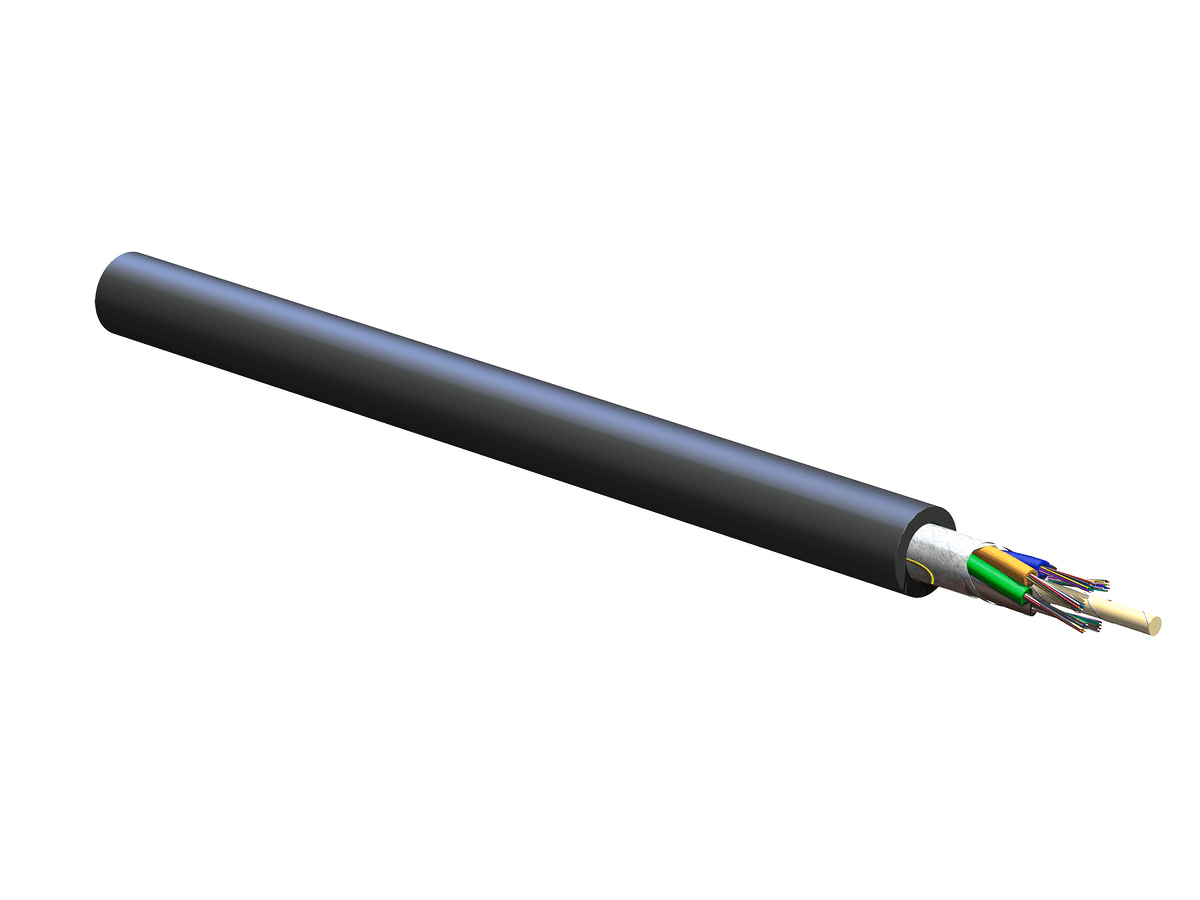

Summary: This Corning 072EUF-T4101D20 cable is a single-mode (OS2) FREEDM® loose tube gel-free cable designed for riser applications with 72 fibers.

General Specifications:

• Product Number: 072EUF-T4101D20
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFNR)
• Application: Aerial, Direct Buried, Duct, Horizontal
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, CSA OFN FT-4
• Common Installations: Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 72
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Buffer Tube Color: Blue, Orange, Green, Brown, Slate, White
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Number of Active Tubes: 6
• Number of Tube Positions: 6
• Tape: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Min. Bend Radius Installation: 195 mm (7.68 in)
• Min. Bend Radius Operation: 130 mm (5.12 in)
• Nominal Outer Diameter: 13 mm (0.51 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 146 kg/km (98.11 lb/1000 ft)
