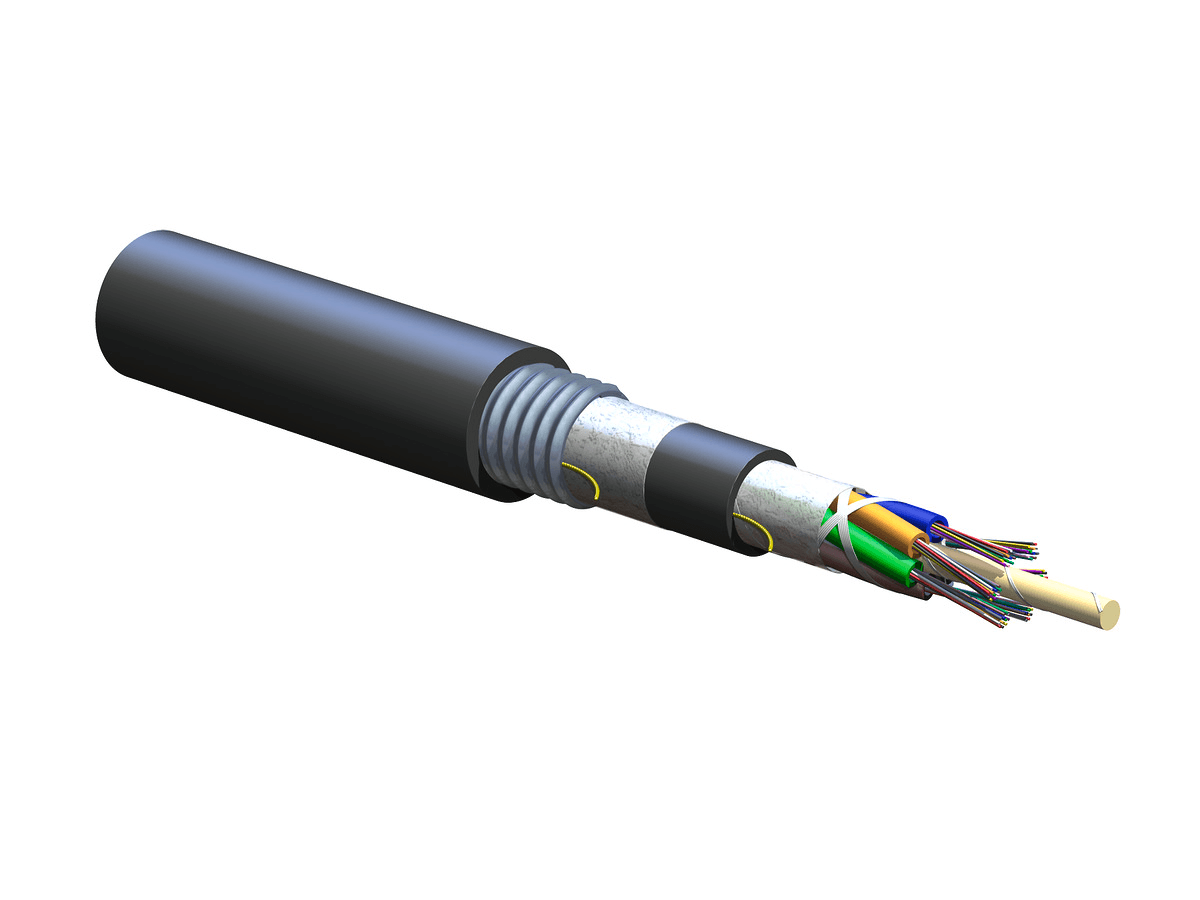

Corning 072EUV-T4101D2N, 72F Single-mode (OS2) Industrial LSZH™ Tray-Rated Loose Tube Corrugated Armored Cable, Gel-Free

Corning 072EUV-T4101D2N, 72F Single-mode (OS2) Industrial LSZH™ Tray-Rated Loose Tube Corrugated Armored Cable, Gel-Free

Summary: This Corning 072EUV-T4101D2N cable is a 72F single-mode (OS2) industrial LSZH™ tray-rated loose tube corrugated armored cable that is gel-free, suitable for indoor/outdoor use in various applications.

General Specifications:

• Product Number: 072EUV-T4101D2N
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Corrugated Steel Armor
• Fiber Category: Single-mode (OS2)
• Flame Rating: LSZH (OFCR-LS)
• Application: Aerial, Direct Buried, Duct, Tray-Rated
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034
• Common Installations: Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1666, CSA C22.2 No. 230 and No. 232, CSA OFC (FT-4-S1)

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 72
• Number of Ripcords: 3
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Tensile Strength Elements and/or Armoring - Layer 1: Corrugated steel tape armor
• Buffer Tube Color: Blue, Orange, Green, Brown, Slate, White
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Inner Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Number of Active Tubes: 6
• Number of Tube Positions: 6
• Tape: Water-swellable
• Tape, Layer 2: Flame-retardant tape
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Min. Bend Radius Installation: 222 mm (8.74 in)
• Min. Bend Radius Operation: 148 mm (5.83 in)
• Nominal Outer Diameter: 14.8 mm (0.58 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 238 kg/km (
