Corning 072ZCF-14101D20 – Indoor/Outdoor Ribbon Fiber Optic Cable, 72 Fiber Single-Mode (OS2), Black

Corning 072ZCF-14101-20 – Indoor/Outdoor Ribbon Dielectric Fiber Optic Cable

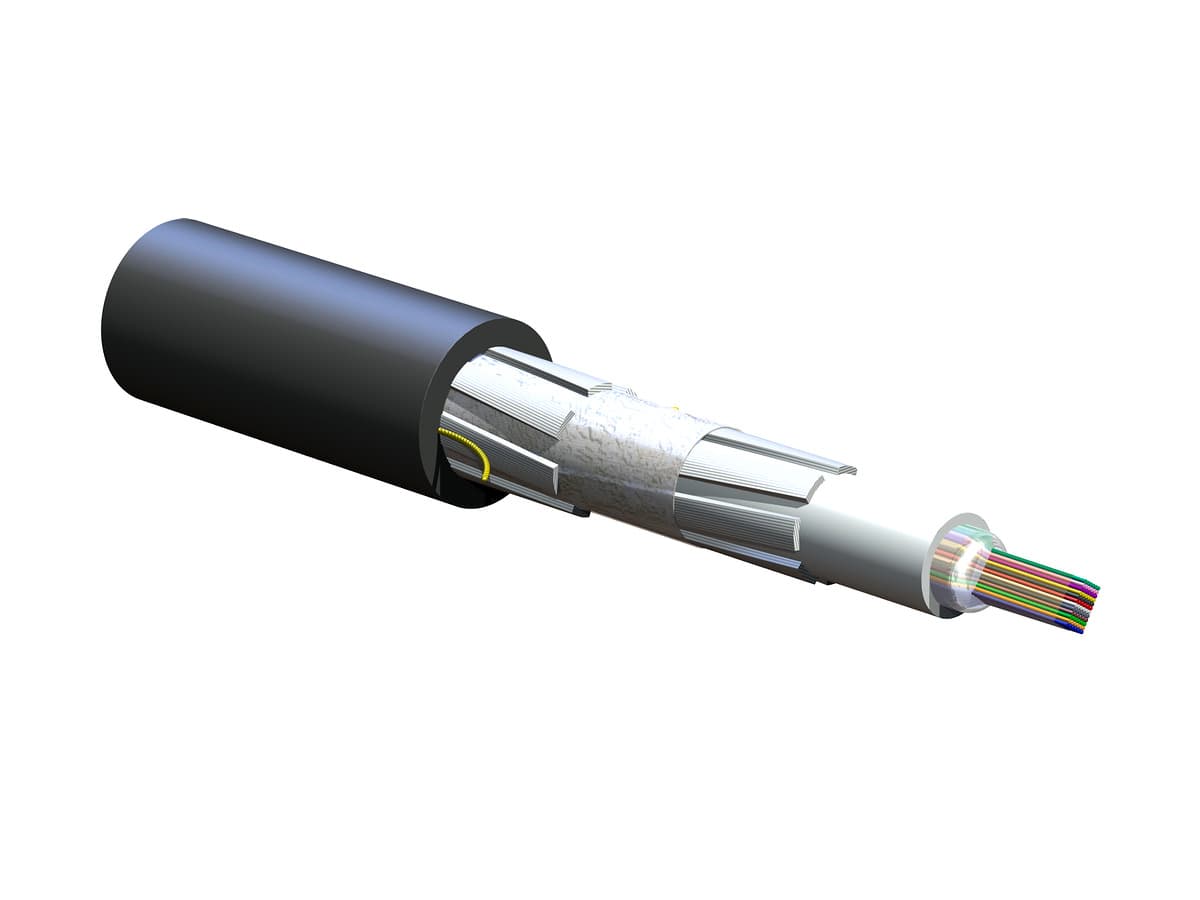

The 072ZCF-14101-20 is a 72-fiber SMF-28® Ultra single-mode (OS2) ribbon dielectric cable designed for indoor/outdoor use. It features a flame-retardant, UV-resistant black outer jacket with an OFNR riser rating, suitable for duct, aerial, riser, direct buried, general purpose, and horizontal applications. The round cable geometry contains six ribbons per tube with 12 fibers each, color-coded for identification. It has a nominal outer diameter of 12.7 mm, a minimum bend radius of 191 mm during installation and 127 mm during operation. Compliant with ITU-T G.652.D and G.657.A1, it offers low attenuation at 1310 nm, 1383 nm, and 1550 nm wavelengths.

Cable Type: Ribbon
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: SMF-28® Ultra
Flame Rating: Riser (OFNR)
Application: Duct, Aerial, Riser, Direct Buried, General purpose, Horizontal
Cable Geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

• Approvals and Listings: National Electrical Code® (NEC®) OFNR, CSA FT-4

• Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions:

• Installation Temperature Range: -10 °C to 60 °C (14 °F to 140 °F)

• Operation Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)

• Storage Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design:

• Buffer Tube Color: Natural

• Fiber Count: 72

• Buffer Tube Diameter: 67 mm (2.64 in)

• Number of Ripcords: 2

• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua

• Outer Jacket Color: Black

• Outer Jacket Material: Flame-Retardant, UV-Resistant

• Tensile Strength Elements and/or Armoring – Layer 1: Dielectric strength members

• Tensile Strength Elements and/or Armoring – Layer 2: Dielectric strength members

• Tape: Water-swellable

• Ribbons per Tube: 6

• Fibers per Ribbon: 12

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 600 N (134.89 lbf)

• Max. Tensile Strength, Short-Term: 600 N (134.89 lbf)

• Min. Bend Radius Installation: 191 mm (7.52 in)

• Min. Bend Radius Operation: 127 mm (5 in)

• Nominal Outer Diameter: 12.7 mm (0.5 in)

Optical Characteristics:

• Fiber Code: Z

• Performance Option Code: 01

• Fiber Category: OS2

• Fiber Type: Single-mode (OS2) / 250 µm

• Fiber Name: Bend-Improved Single-mode (OS2)

• Maximum Attenuation: 0.4 dB/km (1310 nm), 0.4 dB/km (1383 nm), 0.3 dB/km (1550 nm)

• Wavelengths: 1310 nm / 1383 nm / 1550 nm

• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 157 kg/km (105.5 lb/1000 ft)
