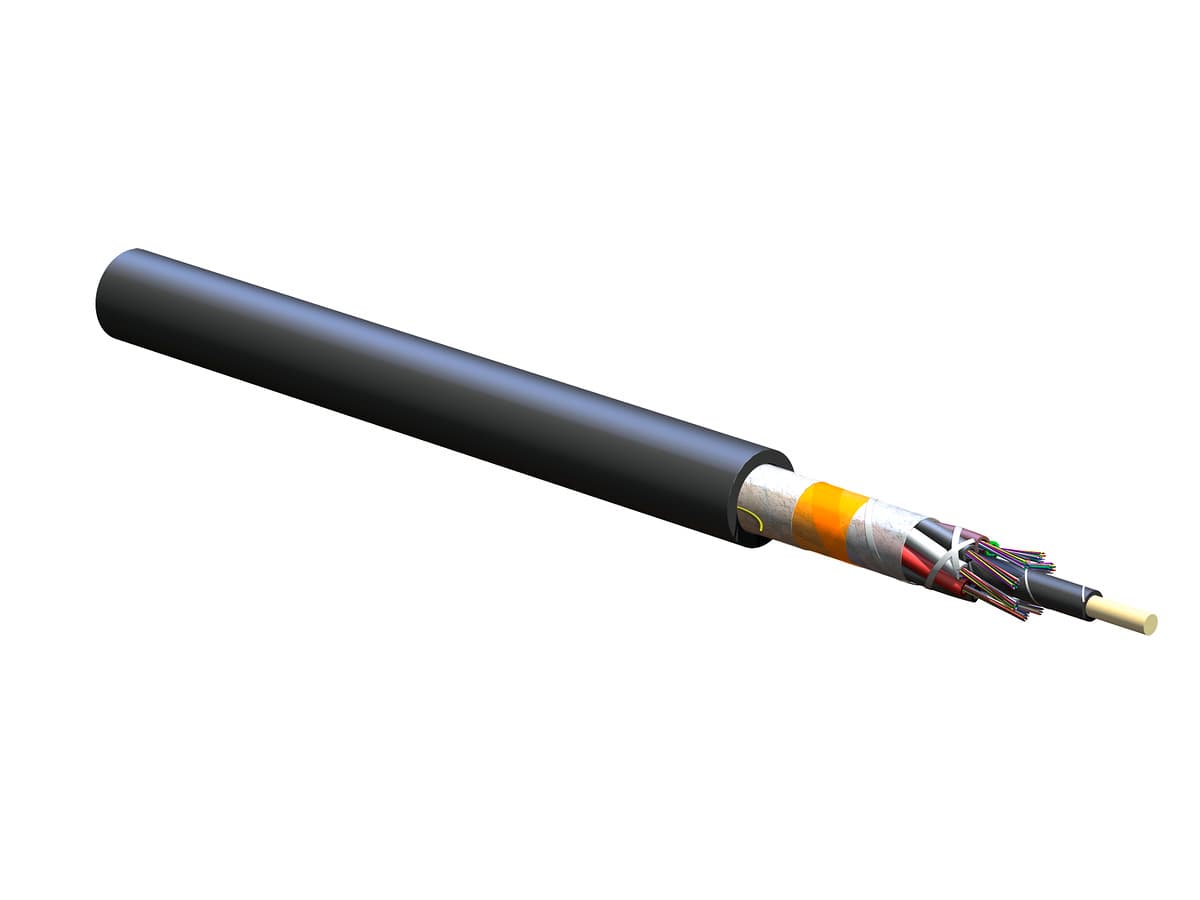

Corning 096EUF-T4101D20 — 96-F 8.3 OS2 LT IN/OUT RISER 0.4/0.3 DB/KM PVC SMF28E FREEDM GEL-FREE

Corning 096EUF-T4101D20 — 96-F 8.3 OS2 LT IN/OUT RISER 0.4/0.3 DB/KM PVC SMF28E FREEDM GEL-FREE

This Fiber Optic cable delivers exceptional single-mode (OS2) performance for both indoor and outdoor applications, including aerial, duct, direct burial, and general-purpose installations. Built with a dielectric central element and flame-retardant, UV-resistant outer jacket, it ensures durability and compliance with NEC® OFNR and CSA OFN FT-4 standards. The cable’s loose tube design houses 96 fibers in 8 color-coded buffer tubes, each with 12 fibers, protected by water-swellable tape for moisture resistance. It supports a maximum attenuation of 0.4 dB/km at 1310 nm and 0.3 dB/km at 1550 nm, meeting ITU-T G.652.D specifications. With a compact 13.9 mm diameter, robust tensile strength, and wide operating temperature range, this cable is engineered for reliable, long-term performance in industrial and commercial environments.

General Specifications
Product Number: 096EUF-T4101D20
Cable Type: Loose Tube
Environment: Indoor/Outdoor
Product Type: Dielectric
Fiber Category: Single-mode (OS2)
Flame Rating: Riser (OFNR)
Application: Aerial, Direct Buried, Duct, General purpose, Horizontal
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: National Electrical Code® (NEC®) OFNR, CSA OFN FT-4
Common Installations: Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions
Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Central Element: Dielectric
Fiber Count: 96
Number of Ripcords: 2
Outer Jacket Color: Black
Outer Jacket Material: Flame-Retardant, UV-Resistant
Buffer Tube Color: Blue, Orange, Green, Brown, Slate, White, Red, Black
Buffer Tube Diameter: 2.5 mm (0.1 in)
Number of Active Tubes: 8
Number of Tube Positions: 8
Tape: Water-swellable
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Fibers per Tube: 12
Color Code Standards: Telcordia

Mechanical Specifications
Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
Min. Bend Radius Installation: 208 mm (8.19 in)
Min. Bend Radius Operation: 139 mm (5.47 in)
Nominal Outer Diameter: 13.9 mm (0.55 in)

Optical Characteristics
Fiber Code: E
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D

Dimensions
Cable Weight: 162 kg/km (108.86 lb/1000 ft)
