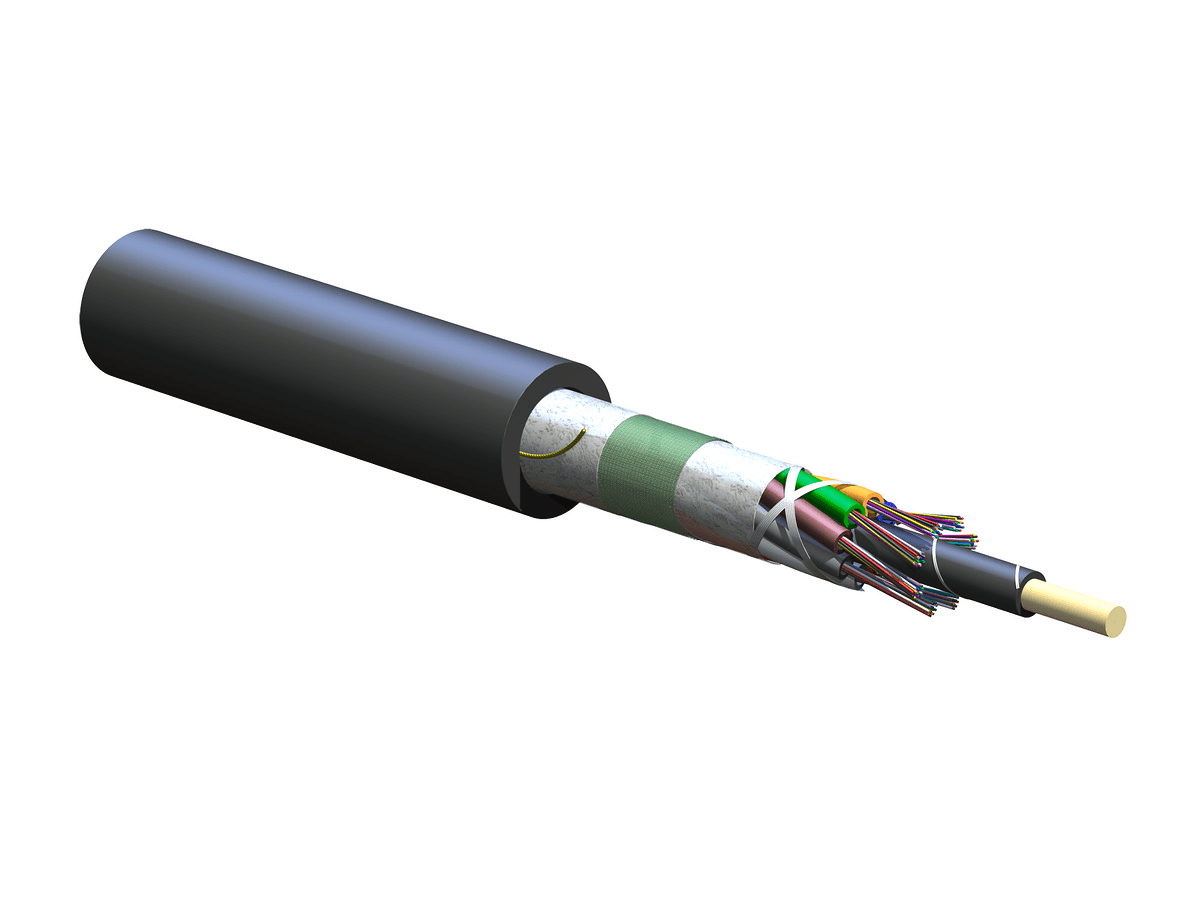

Corning 096KUZ-T4130D2N, 96 F Industrial LSZH™ Tray-Rated Loose Tube Gel-Free Cable, 62.5 µm multimode (OM1)

Corning 096KUZ-T4130D2N, 96 F Industrial LSZH™ Tray-Rated Loose Tube Gel-Free Cable, 62.5 µm multimode (OM1)

Summary: Corning 096KUZ-T4130D2N is a 96 F Industrial LSZH™ Tray-Rated Loose Tube Gel-Free Cable with 62.5 µm multimode fiber category suitable for various applications and environments.

General Specifications:

• Product Number: 096KUZ-T4130D2N
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: 62.5 µm MM (OM1)
• Flame Rating: LSZH (OFN-LS)
• Application: Aerial, Direct Buried, Duct, Horizontal, Tray-Rated
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034
• Common Installations: Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2, No. 230 and No. 232, CSA OFC (FT-4-S1)

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 96
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Buffer Tube Color: Blue, Orange, Green, Brown, Slate, White, Red, Black
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Number of Active Tubes: 8
• Number of Tube Positions: 8
• Tape: Water-swellable
• Tape, Layer 1: Water-swellable
• Tape, Layer 2: Flame-retardant tape
• Tape, Layer 3: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Min. Bend Radius Installation: 235 mm (9.25 in)
• Min. Bend Radius Operation: 157 mm (6.18 in)
• Nominal Outer Diameter: 15.7 mm (0.62 in )

Optical Characteristics:

• Fiber Code: K
• Performance Option Code: 30
• Fiber Category: OM1
• Fiber Type: Multimode
• Fiber Name: 62.5 µm MM (OM1)
• Maximum Attenuation: 3.4 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: ISO/IEC 11801
• Fiber Core Diameter: 62.5 µm
• Coating diameter: 242 µm
• Serial 1 Gigabit Ethernet: 300 m / 550 m
• Serial 10 Gigabit Ethernet: 33 m / -
• Minimum Effective Modal Bandwidth (EMB): 220 MHz*km
