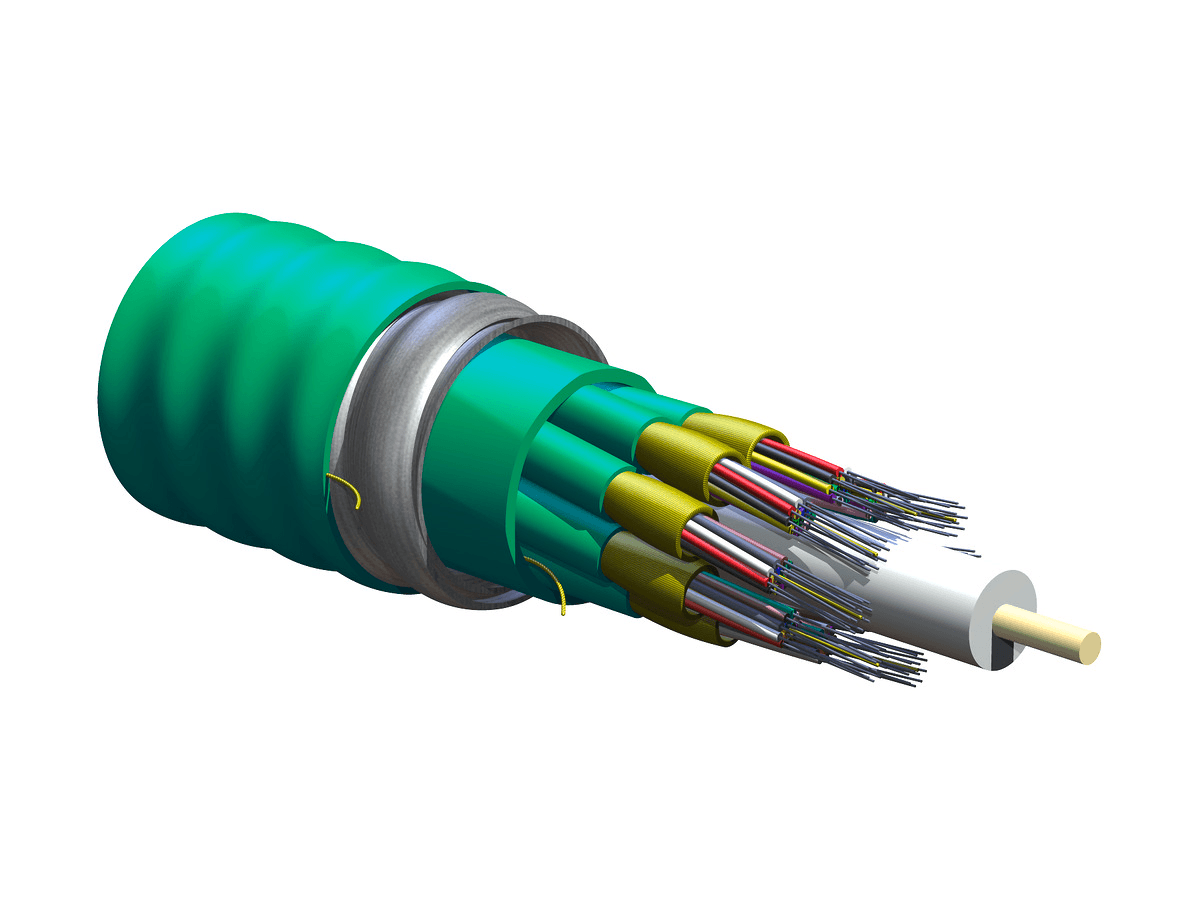

Summary: Corning 096T88-Y3190-A3 is a Plenum 96 F MIC® Unitized Tight-Buffered Interlocking Armored Cable designed for indoor use with a 50 µm multimode (OM4) fiber category. It features a round cable geometry and flame-retardant properties suitable for horizontal, plenum, and riser applications.

General Specifications:

• Product Number: 096T88-Y3190-A3
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Interlocking Armor
• Fiber Category: 50 µm MM (OM4)
• Flame Rating: Plenum (OFCP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCP, CSA FT-6
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Jacketed GRP
• Fiber Count: 96
• Number of Ripcords: 10
• Outer Jacket Color: Aqua
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Fibers per Subunit: 24
• Number of Active Tubes: 4
• Subunit Color: Aqua
• Subunit Diameter: 6.8 mm (0.27 in)
• Tight Buffer Color Subunit: Blue, Orange, Green
• Tight-Buffer Color Subunit, Layer 1: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Tight Buffer Color Subunit, Layer 2: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Flame Rating: Plenum (OFCP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 200 N (44.96 lbf)
• Max. Tensile Strength, Short-Term: 660 N (148.37 lbf)
• Min. Bend Radius Installation: 393 mm (15.47 in)
• Min. Bend Radius Operation: 262 mm (10.31 in)
• Nominal Inner Cable Diameter: 22.2 mm (0.87 in)
• Nominal Outer Diameter: 26.2 mm (1.03 in )

Optical Characteristics:

• Fiber Code: T
• Performance Option Code: 90
• Fiber Category: OM4
• Fiber Type: Multimode
• Fiber Name: 50 µm MM (OM4)
• Maximum Attenuation: 2.8 dB/km / 1.0 dB/km
• Wavelengths: 850 nm / 1300 nm
• Fiber Compliance: IEC 60793-2-10
• Fiber Core Diameter: 50 µm
• Serial 1 Gigabit Ethernet: 1000 m / 600 m
• Serial 10 Gigabit Ethernet: 550 m / -
• Minimum Effective Modal Bandwidth (EMB): 4700 MHz*km / -
• Min. Overfilled Launch (OFL) Bandwidth: 3500 MHz*km / 500 MHz*km

Dimensions:

• Cable Weight: 5.153 kg/km (3.46 lb/1000 ft)
