Corning 096ZMF-T4101A20, 96 F, SMF-28® Ultra fiber Single-mode (OS2) Riser FREEDM® Cable with Reduced Outer Diameter

Corning 096ZMF-T4101A20, 96 F, SMF-28® Ultra fiber Single-mode (OS2) Riser FREEDM® Cable with Reduced Outer Diameter

Summary: Corning 096ZMF-T4101A20 is a 96 F, SMF-28® Ultra fiber Single-mode (OS2) Riser FREEDM® Cable designed for indoor/outdoor use with reduced outer diameter.

General Specifications:

• Product Number: 096ZMF-T4101A20
• Cable Type: Stranded Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: SMF-28® Ultra
• Flame Rating: Riser (OFNR)
• Application: Microduct
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR
• Common Installations: Indoor/Outdoor microduct; indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: CSA OFN FT-4, ANSI/ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

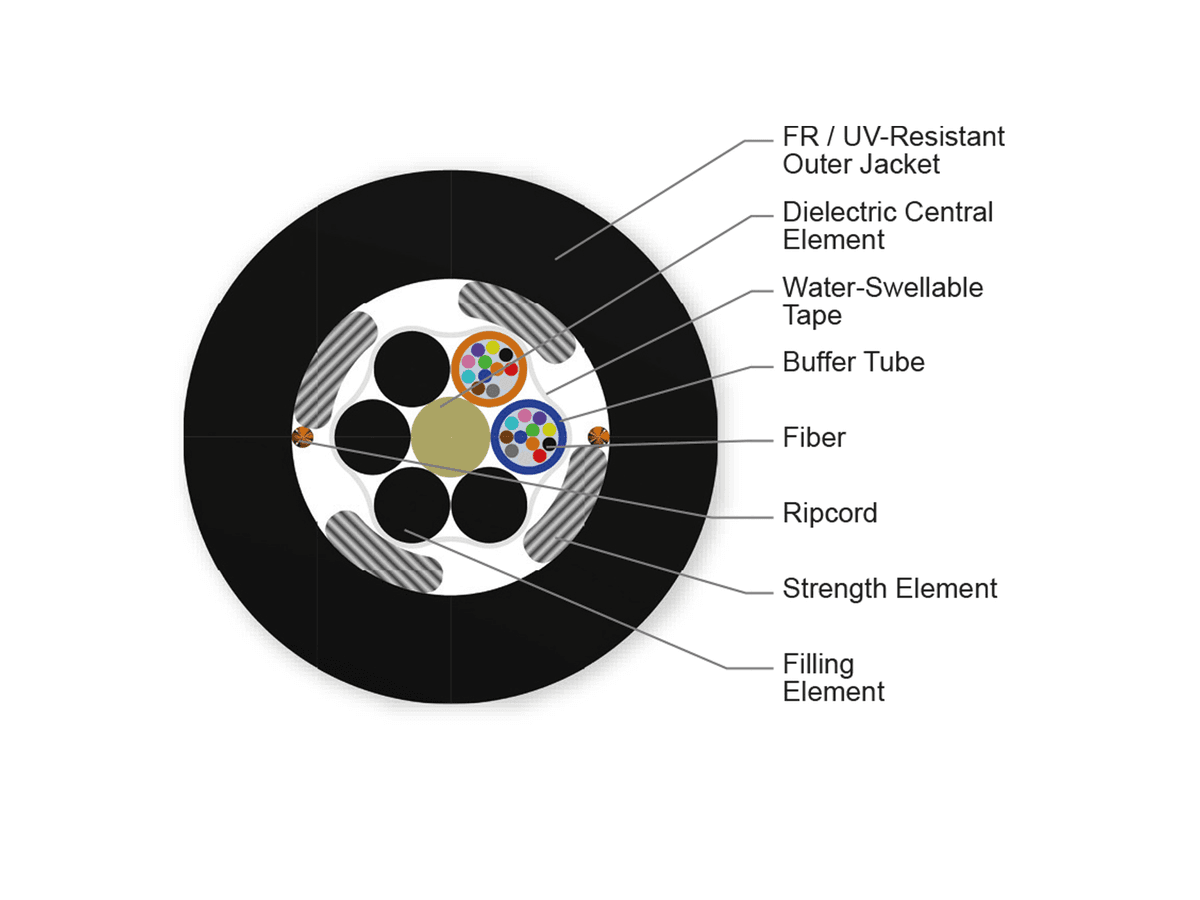

Cable Design:

• Central Element: Dielectric
• Fiber Count: 96
• Number of Ripcords: 3
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Buffer Tube Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Buffer Tube Diameter: 1.4 mm (0.06 in)
• Number of Active Tubes: 8
• Number of Tube Positions: 8
• Tape: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1320 N (296.75 lbf)
• Min. Bend Radius Installation: 159 mm (6.26 in)
• Min. Bend Radius Operation: 106 mm (4.17 in)
• Nominal Outer Diameter: 10.6 mm (0.42 in )

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1
