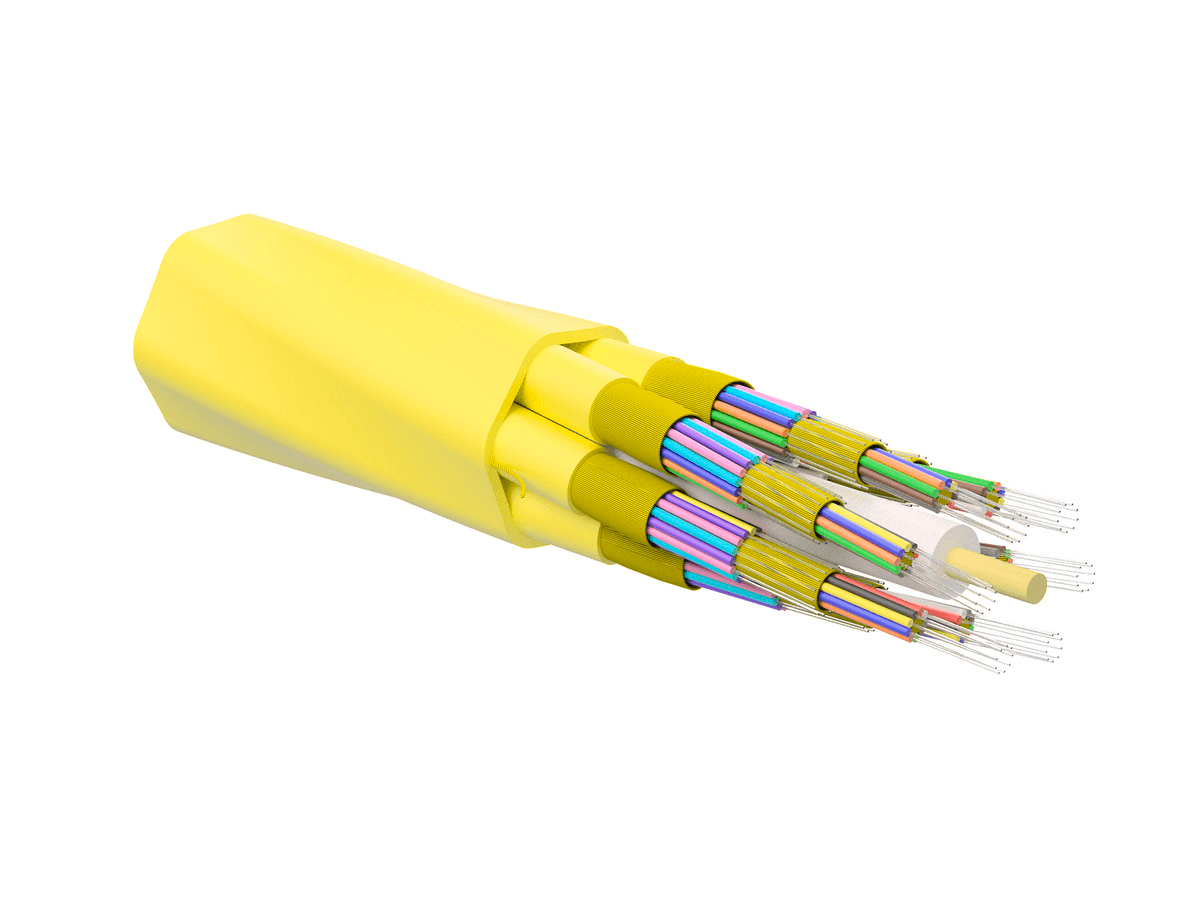

Corning 144E88-Y3131-29, Single-mode (OS2) MIC® Unitized Tight-Buffered Cable, Plenum, 144 F

Corning 144E88-Y3131-29, Single-mode (OS2) MIC® Unitized Tight-Buffered Cable, Plenum, 144 F

Summary: Corning 144E88-Y3131-29 is a single-mode (OS2) MIC® unitized tight-buffered cable designed for indoor distribution with a plenum flame rating. It features 144 fibers with a round cable geometry.

General Specifications:

• Product Number: 144E88-Y3131-29
• Cable Type: Tight-Buffered
• Environment: Indoor
• Product Type: Distribution
• Fiber Category: Single-mode (OS2)
• Flame Rating: Plenum (OFNP)
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, UL-1666, CSA FT-4
• Design and Test Criteria: ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Jacketed GRP
• Fiber Count: 144
• Number of Ripcords: 13
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Fibers per Subunit: 24
• Number of Active Tubes: 6
• Subunit Color: Yellow
• Subunit Diameter: 6.8 mm (0.27 in)
• Tight Buffer Color Subunit: Blue, Orange, Green
• Tight-Buffer Color Subunit, Layer 1: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Tight Buffer Color Subunit, Layer 2: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Flame Rating: Plenum (OFNP)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 400 N (89.92 lbf)
• Max. Tensile Strength, Short-Term: 1320 N (296.75 lbf)
• Min. Bend Radius Installation: 352.5 mm (13.88 in)
• Min. Bend Radius Operation: 235 mm (9.25 in)
• Nominal Outer Diameter: 23.5 mm (0.93 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 482.3 kg/km (324.09 lb/1000 ft)
