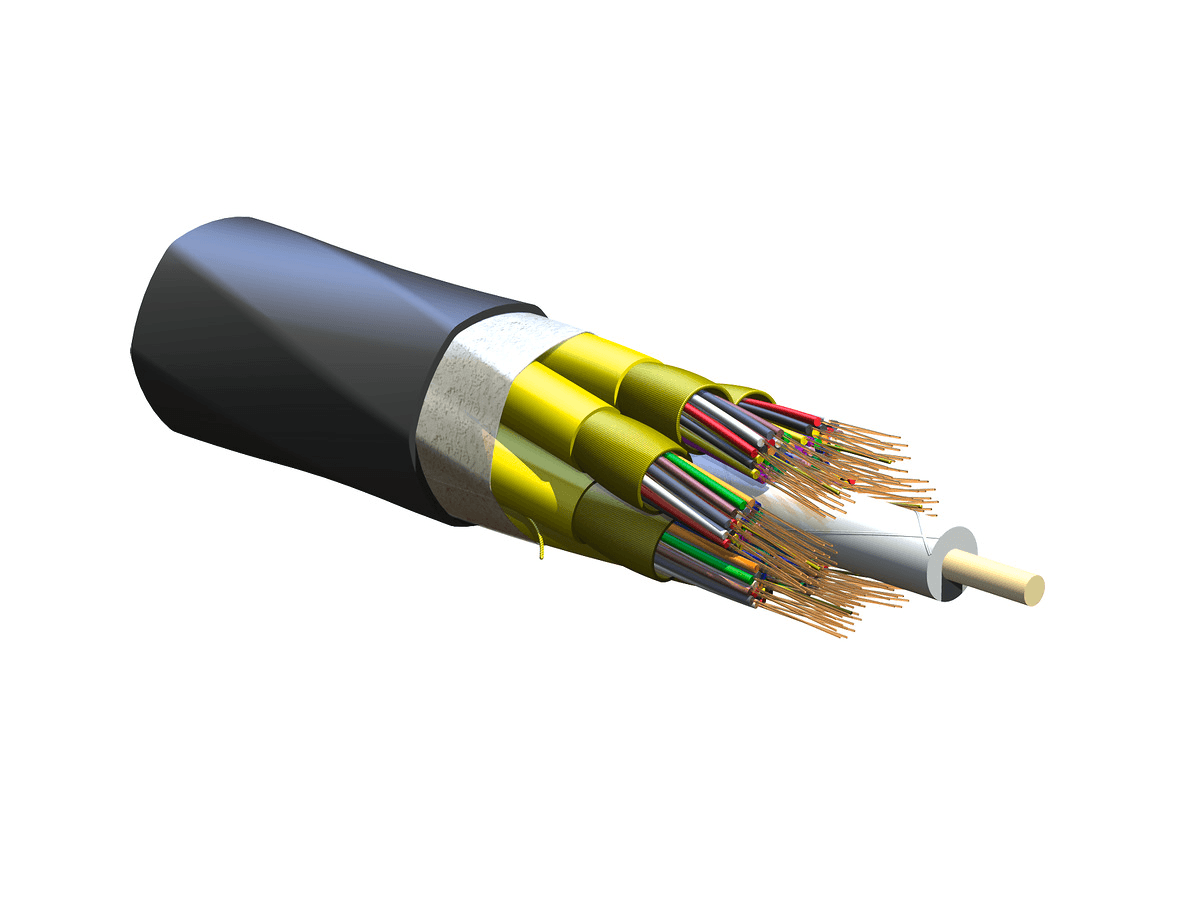

Corning 144E8F-Y3131-29, Single-mode (OS2) FREEDM® Riser 144 F Tight-Buffered Cable, One Unitized

Corning 144E8F-Y3131-29, Single-mode (OS2) FREEDM® Riser 144 F Tight-Buffered Cable, One Unitized

Summary: This Corning 144E8F-Y3131-29 Single-mode (OS2) FREEDM® Riser 144 F Tight-Buffered Cable is designed for indoor/outdoor distribution applications. It features a flame rating of Riser (OFNR) and has a fiber count of 144 with a dielectric central element.

General Specifications:

• Product Number: 144E8F-Y3131-29
• Cable Type: Tight-Buffered
• Environment: Indoor/Outdoor
• Product Type: Distribution
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFNR)
• Application: Aerial, Direct Buried, Duct, Horizontal, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR, FT-4
• Design and Test Criteria: ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 144
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Fibers per Subunit: 24
• Number of Active Tubes: 6
• Subunit Color: Yellow
• Subunit Diameter: 7 mm (0.28 in)
• Tape: Water-swellable
• Tight Buffer Color: Blue, Orange, Green
• Tight Buffer Color, Layer 1: Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Tight Buffer Color, Layer 2: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Flame Rating: Riser (OFNR)

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 800 N (179.85 lbf)
• Max. Tensile Strength, Short-Term: 2670 N (600.24 lbf)
• Min. Bend Radius Installation: 352.5 mm (13.88 in)
• Min. Bend Radius Operation: 235 mm (9.25 in)
• Nominal Outer Diameter: 23.5 mm (0.93 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 31
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.4 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 441.2 kg/km (296.47 lb/1000 ft)
