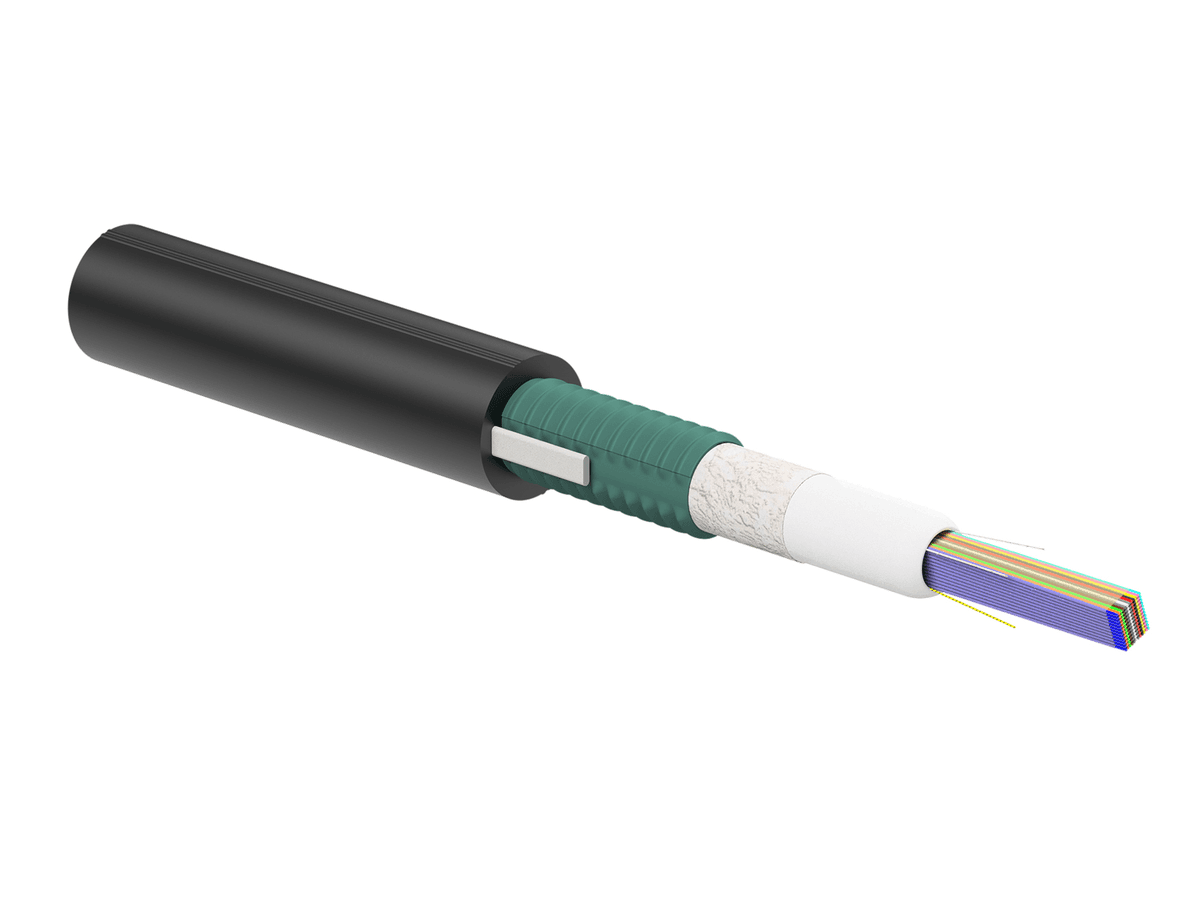

Summary: The Corning 144ZC5-14700S53 Armored RocketRibbon® Cable-250 144 F is a single-mode (OS2) fiber cable suitable for outdoor use with improved bend performance.

General Specifications:

• Product Number: 144ZC5-14700S53
• Cable Type: Ribbon
• Environment: Outdoor
• Product Type: Corrugated Steel Armor
• Fiber Category: Single-mode (OS2)
• Application: Aerial, Direct Buried, Duct
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Common Installations: Outdoor lashed aerial, duct and direct-buried, indoor when installed according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-87-640, Telcordia GR-20

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 70 °C (-22 °F to 158 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Cable Marking: Print in ft with SOCC
• Fiber Count: 144
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Tensile Strength Elements and/or Armoring - Layer 1: Steel strength members
• Number of Ribbons: 12
• Tape: Waterblocking tape and yarns
• Fibers per Ribbon: 12

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 890 N (200.08 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Nominal Outer Diameter: 13 mm (0.51 in )
• Min. Bend Diameter Operation: 390 mm (15.35 in)
• Min. Bend Diameter Installation: 390 mm (15.35 in)

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 00
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.35 dB/km / 0.35 dB/km / 0.25 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 177.7 kg/km (119.41 lb/1000 ft)
