Corning 144ZD9-T1301-M2, Loose Tube Plenum Cables 144 F, Single-mode (OS2) SMF-28® Ultra fiber by MIC®

Corning 144ZD9-T1301-M2, Loose Tube Plenum Cables 144 F, Single-mode (OS2) SMF-28® Ultra fiber by MIC®

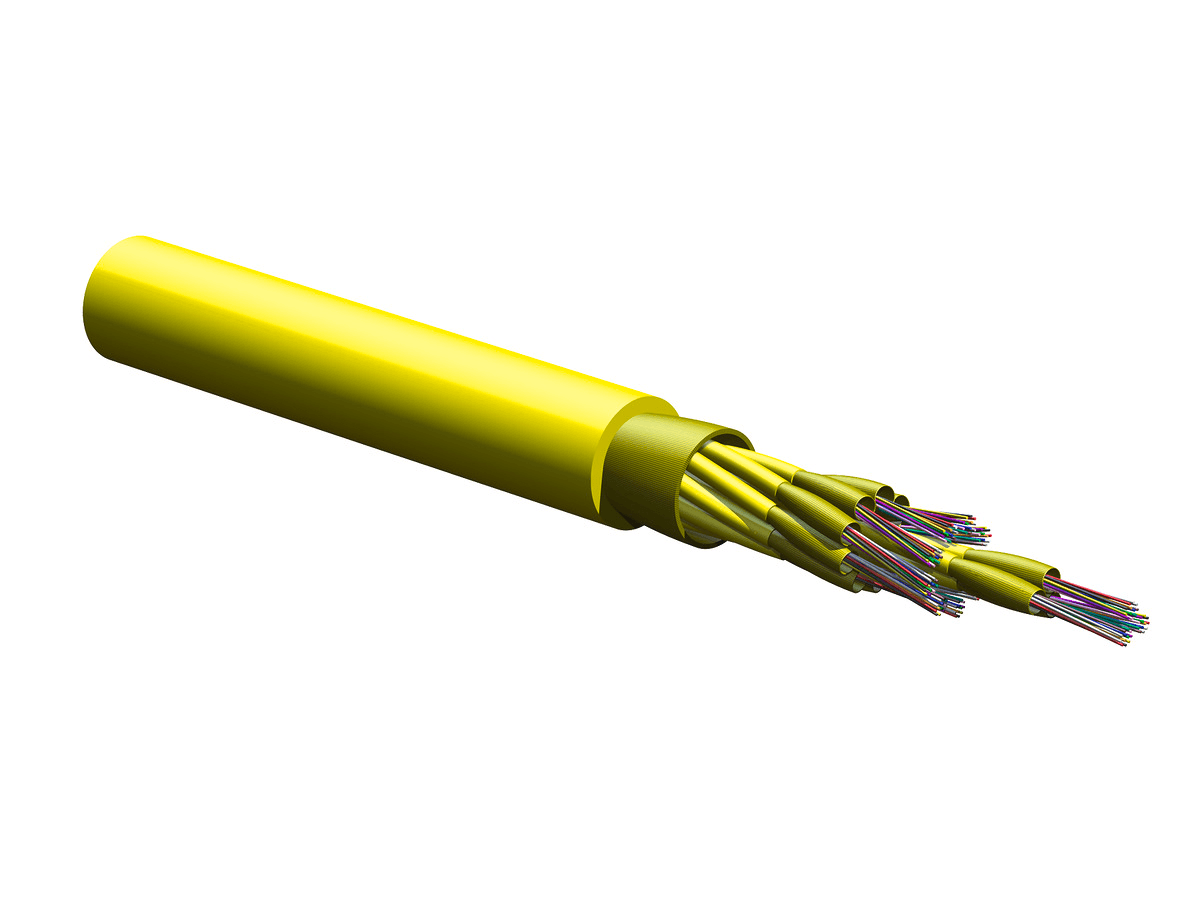

Summary: Corning 144ZD9-T1301-M2 Loose Tube Plenum Cables 144 F, Single-mode (OS2) SMF-28® Ultra fiber by MIC® is designed for indoor distribution applications with a dielectric central element, 144 fiber count, yellow flame-retardant outer jacket, and bend-improved single-mode optical characteristics.

General Specifications:

• Product Number: 144ZD9-T1301-M2
• Cable Type: Loose Tube
• Environment: Indoor
• Product Type: Distribution
• Fiber Category: SMF-28® Ultra
• Application: Horizontal, Plenum, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Design and Test Criteria: ANSI/ICEA S-83-596

Environmental Conditions:

• Temperature Range, Installation: 0 °C to 60 °C (32 °F to 140 °F )
• Temperature Range, Operation: 0 °C to 70 °C (32 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 144
• Outer Jacket Color: Yellow
• Outer Jacket Material: Flame-retardant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Buffer Tube Diameter: 2 mm (0.08 in)
• Number of Active Tubes: 12
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Short-Term: 660 N (148.37 lbf)
• Min. Bend Radius Installation: 153 mm (6.02 in)
• Min. Bend Radius Operation: 102 mm (4.02 in)
• Nominal Outer Diameter: 10.2 mm (0.4 in )

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 91 kg/km (61.15 lb/1000 ft)
