Corning 144ZUZ-T4101DAZ, 144 F LSZH™ Loose Tube Interlocking Armored Cable, Gel-Free, SMF-28® Ultra Fiber Single-Mode OS2

Corning 144ZUZ-T4101DAZ, 144 F LSZH™ Loose Tube Interlocking Armored Cable, Gel-Free, SMF-28® Ultra Fiber Single-Mode OS2

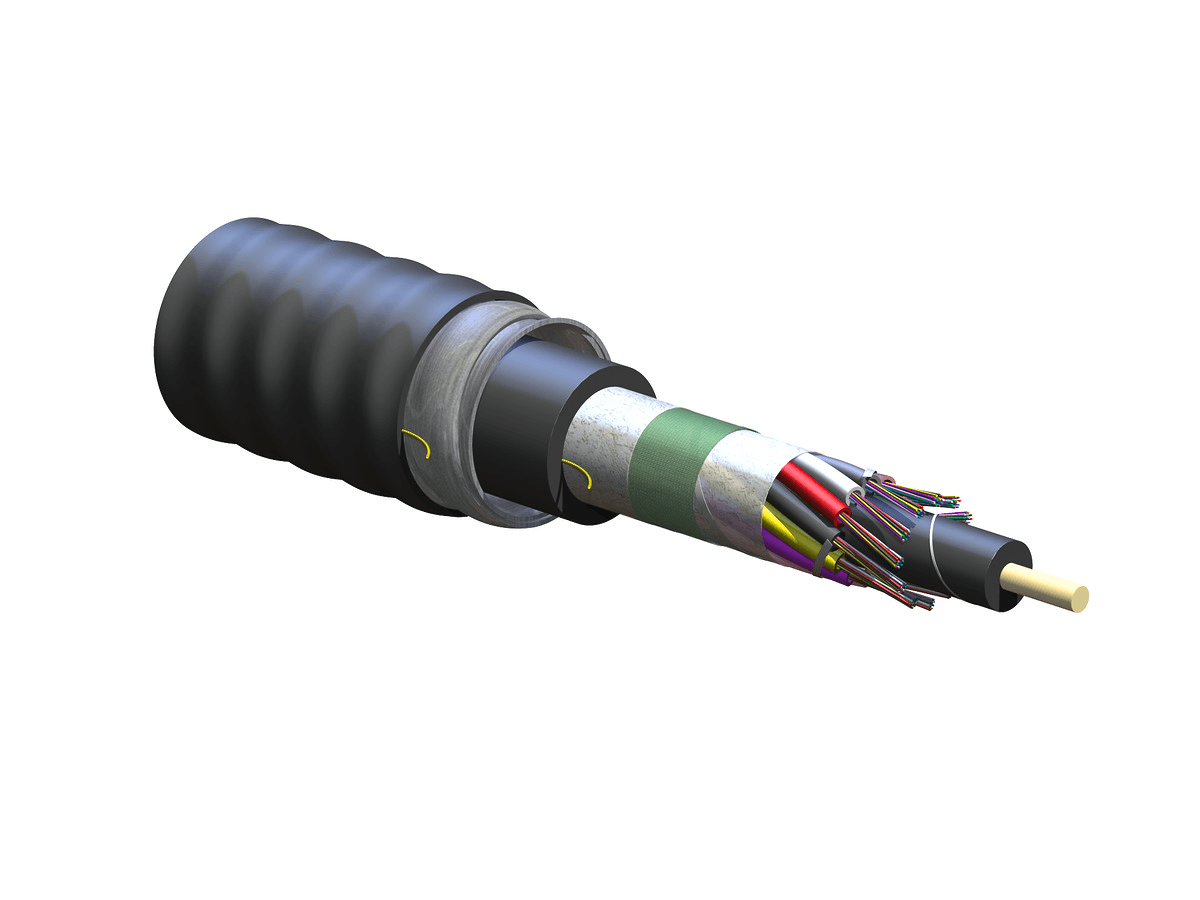

Summary: Corning 144ZUZ-T4101DAZ is a 144 F LSZH™ Loose Tube Interlocking Armored Cable designed for indoor/outdoor use, featuring SMF-28® Ultra Fiber Single-Mode OS2.

General Specifications:

• Product Number: 144ZUZ-T4101DAZ
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Interlocking Armor
• Fiber Category: SMF-28® Ultra
• Flame Rating: LSZH (OFC-LS)
• Application: Aerial, Direct Buried, Duct, Horizontal
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR-LS/Riser, Sunlight Resistant (SUN RES), IEEE-1202 flame test, Suitable for Direct Burial (DIR BUR), IEC 60332-3, IEC 60754-2, IEC 61034
• Common Installations: Outdoor aerial and duct; indoor general purpose horizontal according to NEC Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696, UL 13, UL 444, UL 1277, UL 1685, CSA C22.2, No. 230 and No. 232, CSA OFC (FT-4-S1)

Environmental Conditions:

• Temperature Range, Installation: -30 °C to 60 °C (-22 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 144
• Number of Ripcords: 2
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Tensile Strength Elements and/or Armoring - Layer 1: Interlocking Armor
• Buffer Tube Color: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Inner Jacket Material: Flame-retardant, non-corrosive/low-smoke, zero-halogen (FRNC/LSZH) material
• Number of Active Tubes: 12
• Number of Tube Positions: 12
• Tape: Water-swellable
• Tape, Layer 1: Water-swellable
• Tape, Layer 2: Flame-retardant tape
• Tape, Layer 3: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Min. Bend Radius Installation: 425 mm (16.73 in)
• Min. Bend Radius Operation: 283 mm (11.14 in)
• Nominal Outer Diameter: 28.2 mm (1.11 in )

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657
