Corning 192ZUF-T4101D20, 192 F FREEDM® Loose Tube Riser Gel-Free Cable SMF-28® Ultra Single-mode Fiber OS2

Corning 192ZUF-T4101D20, 192 F FREEDM® Loose Tube Riser Gel-Free Cable SMF-28® Ultra Single-mode Fiber OS2

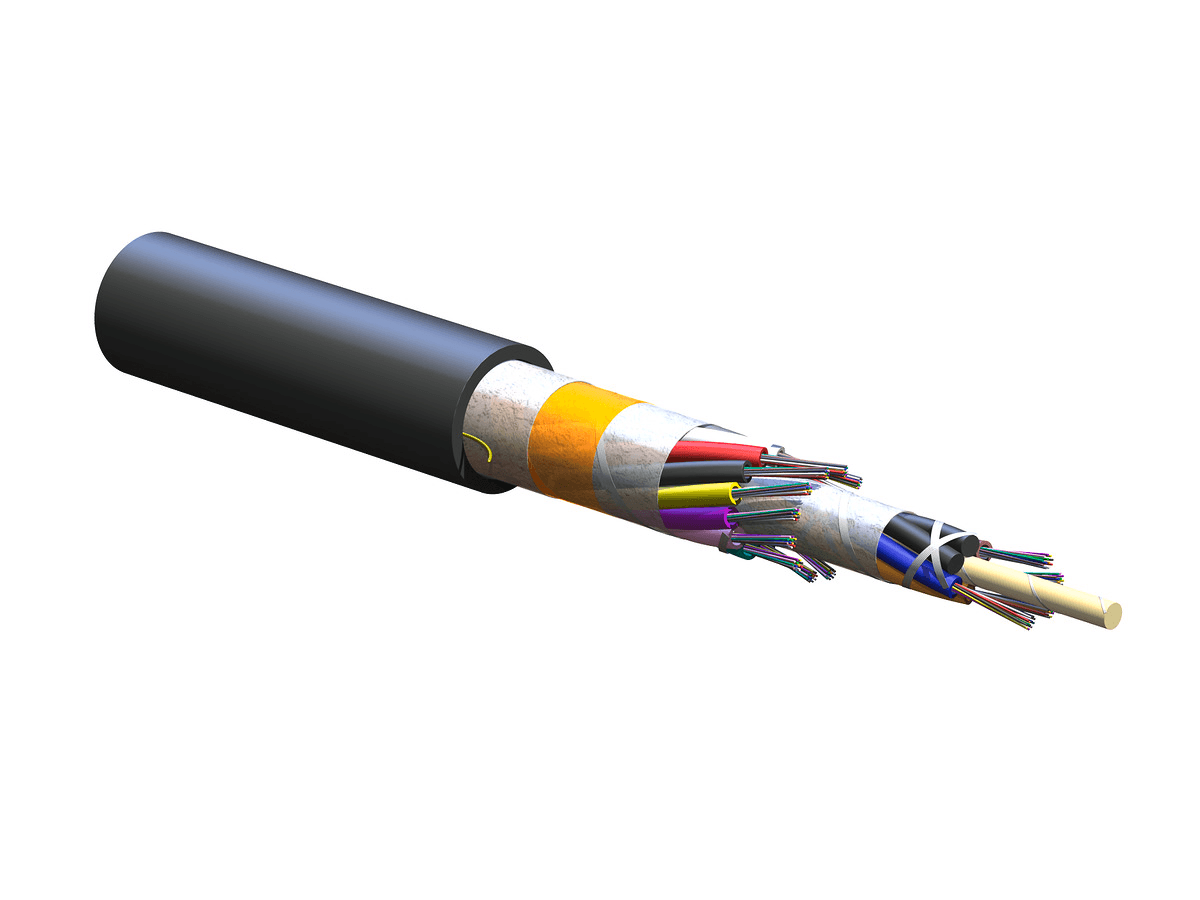

Summary: The Corning 192ZUF-T4101D20 is a 192 F FREEDM® Loose Tube Riser Gel-Free Cable designed for indoor/outdoor use with SMF-28® Ultra Single-mode Fiber OS2.

General Specifications:

• Product Number: 192ZUF-T4101D20
• Cable Type: Loose Tube
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: SMF-28® Ultra
• Flame Rating: Riser (OFNR)
• Application: Aerial, Direct Buried, Duct, Horizontal, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFCR, CSA OFC FT-4
• Common Installations: Outdoor aerial and duct, indoor vertical riser and general purpose horizontal according to National Electrical Code® (NEC®) Article 770
• Design and Test Criteria: ANSI/ICEA S-104-696

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 192
• Number of Ripcords: 2
• Buffer Tube Color Coding, Layer 1: Blue, Orange, Green, Brown
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Buffer Tube Diameter: 2.5 mm (0.1 in)
• Number of Active Tubes: 16
• Number of Filling Elements: 2
• Number of Tube Positions: 18
• Tape: Water-swellable
• Tape, Layer 2: Water-swellable
• Tape, Layer 3: Flame-retardant tape
• Tape, Layer 4: Water-swellable
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 12
• Color Code Standards: Telcordia

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
• Max. Tensile Strength, Short-Term: 2700 N (606.98 lbf)
• Min. Bend Radius Installation: 266 mm (10.47 in)
• Min. Bend Radius Operation: 177 mm (6.97 in)
• Nominal Outer Diameter: 17.7 mm (0.7 in )

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions:

• Cable Weight: 225 kg/km (151.19 lb/1000 ft)
