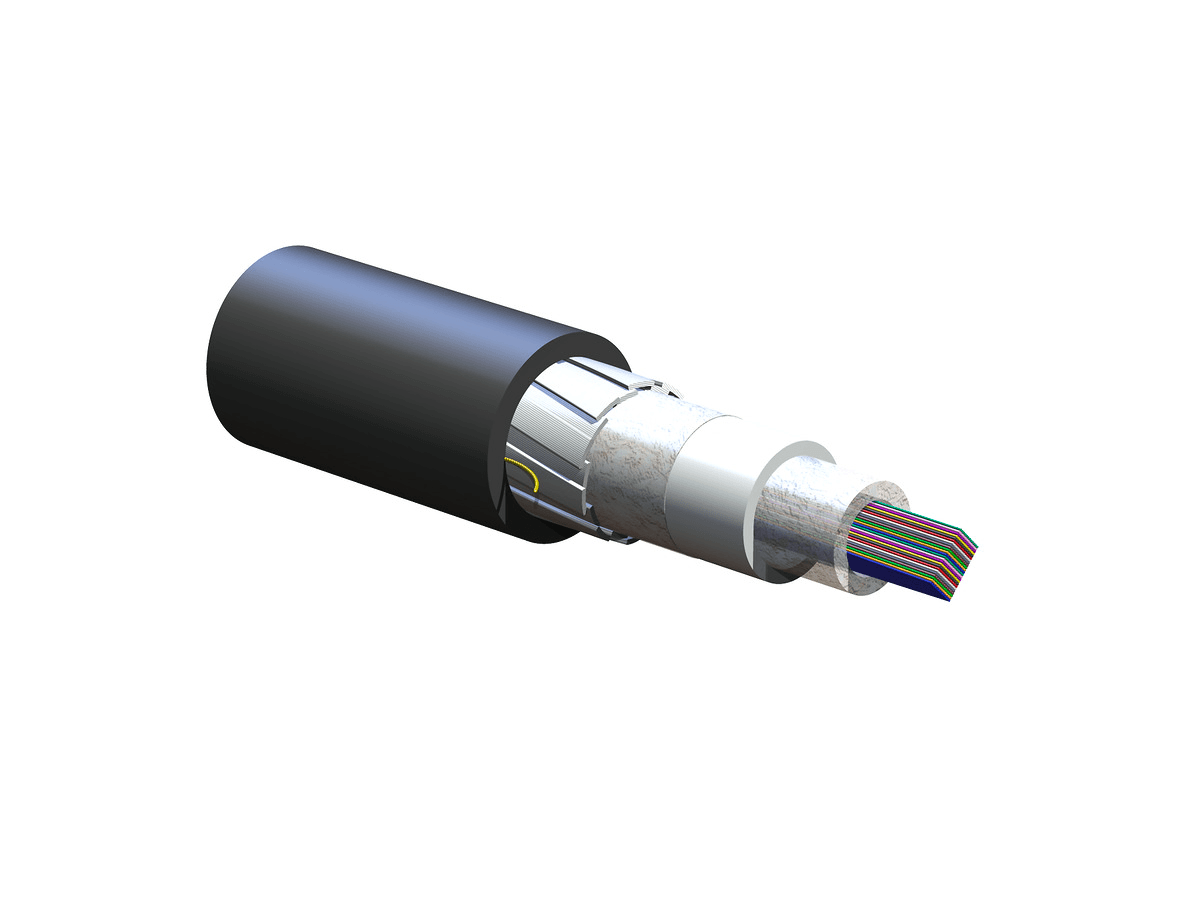

Summary: The Corning 288EVF-14101D20 is a single-mode (OS2) FREEDM UltraRibbon Gel-Free Cable designed for indoor/outdoor use with a riser flame rating. It features a round cable geometry and has a fiber count of 288.

General Specifications:

• Product Number: 288EVF-14101D20
• Cable Type: Ribbon
• Environment: Indoor/Outdoor
• Product Type: Dielectric
• Fiber Category: Single-mode (OS2)
• Flame Rating: Riser (OFNR)
• Application: Aerial, Horizontal, Duct, Direct Buried, Riser
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings: National Electrical Code® (NEC®) OFNR
• Design and Test Criteria: ANSI/ICEA S-104-696, CSA FT-4

Environmental Conditions:

• Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Buffer Tube Color: Natural
• Fiber Count: 288
• Buffer Tube Diameter: 14 mm (0.55 in)
• Number of Ripcords: 2
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Outer Jacket Color: Black
• Outer Jacket Material: Flame-Retardant, UV-Resistant
• Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
• Tape: Water-swellable
• Tape, Layer 1: Flame-retardant tape
• Tape, Layer 2: Flame-retardant tape
• Tape, Layer 3: Water-swellable
• Ribbons per Tube: 12
• Fibers per Ribbon: 24

Mechanical Specifications:

• Max. Tensile Strength, Long-Term: 2700 N (606.98 lbf)
• Max. Tensile Strength, Short-Term: 890 N (200.08 lbf)
• Min. Bend Radius Installation: 319.5 mm (12.58 in)
• Min. Bend Radius Operation: 213 mm (8.39 in)
• Nominal Outer Diameter: 21.3 mm (0.84 in )

Optical Characteristics:

• Fiber Code: E
• Performance Option Code: 01
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 250 µm
• Fiber Name: Single-mode (OS2)
• Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D

Dimensions:

• Cable Weight: 386.55 kg/km (259.75 lb/1000 ft)
