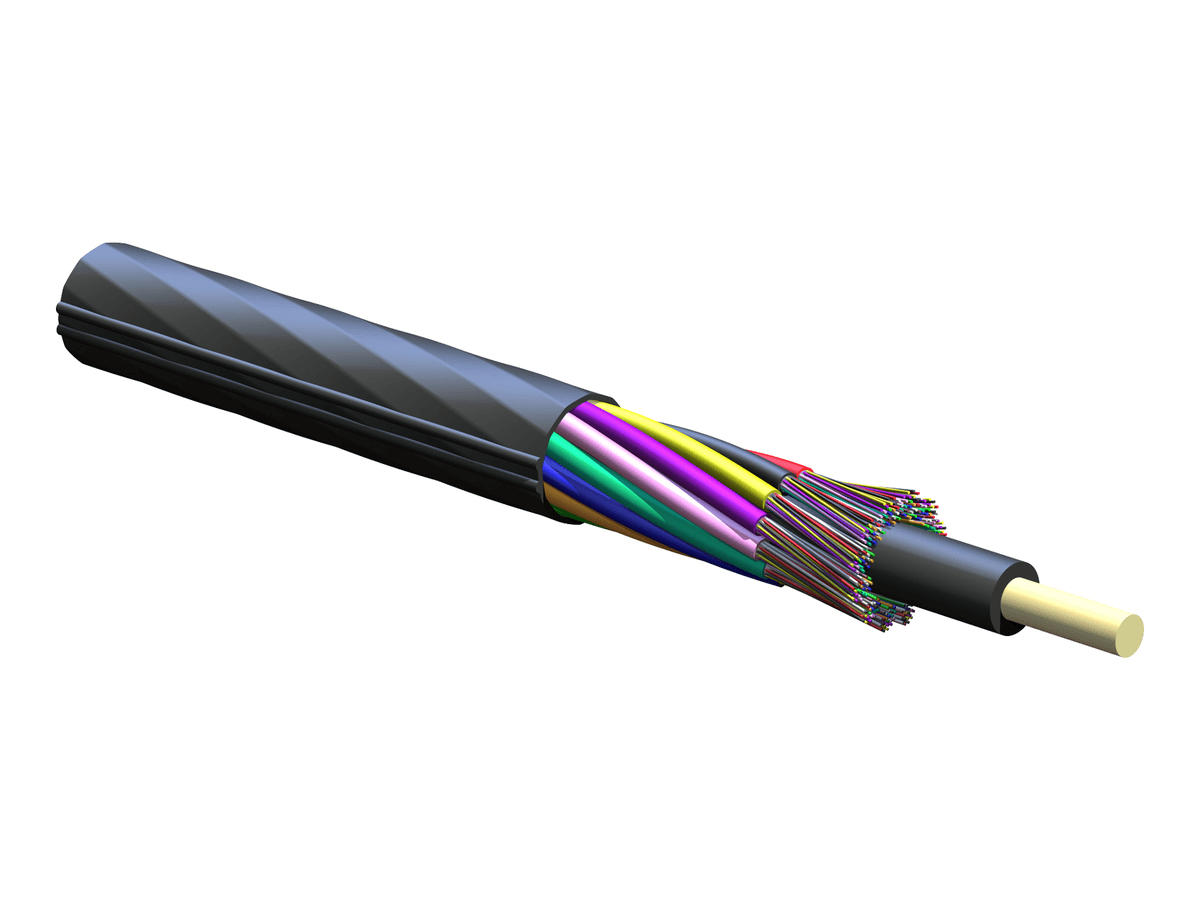

Summary: Corning 288ZH4-S4F40A20 is a 288 F MiniXtend® HD Cable designed for outdoor use with a dielectric product type and SMF-28® Ultra 200 Optical Fiber. It features Binderless FastAccess® Technology, single-mode fiber, and a crush resistance of 1000 N/10 cm.

General Specifications:

• Product Number: 288ZH4-S4F40A20
• Cable Type: Stranded Loose Tube
• Environment: Outdoor
• Product Type: Dielectric
• Fiber Category: SMF-28® Ultra 200 Optical Fiber
• Coding according to EN 60794-1-1 (DIN VDE 0888-100-1): A-DQ(ZN)2Y
• Application: Microduct
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

Environmental Conditions:

• Temperature Range, Installation: -15 °C to 60 °C (5 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Cable Marking: FT#CORNING OPTICAL CABLE#MM-YY# 288 (8x36) SM-ULTRA 200 MINIXTEND(R) HD CABLE WITH BINDERLESS FASTACCESS(R) TECHNOLOGY
• Central Element: Dielectric
• Fiber Count: 288
• Buffer Tube Color Coding, Layer 1: Blue, Orange, Green, Brown, Slate, White, Red, Black
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Outer Jacket Nominal Thickness: 0.5 mm (0.02 in)
• Buffer Tube Diameter: 1.95 mm (0.08 in)
• Number of Active Tubes: 8
• Number of Tube Positions: 8
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 36
• Color Code Standards: Telcordia

Mechanical Specifications:

• Crush Resistance: 1000 N/10 cm
• Max. Tensile Strength, Short-Term: 1334 N (299.9 lbf)
• Min. Bend Radius Installation: 164 mm (6.46 in)
• Min. Bend Radius Operation: 123 mm (4.84 in)
• Nominal Outer Diameter: 8.1 mm (0.32 in )
• Min. Duct Size Diameter: 10 mm (0.39 in)
• Optimal Duct Size: 12 mm (0.47 in)

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 40
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 200 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.34 dB/km / 0.34 dB/km / 0.20 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1
• Cladding diameter: 125 µm
• Coating diameter: 188 µm
• Cable cutoff wavelength: 1260 nm
• Mode-Field Diameter at 1310 nm: 9.2 µm

Dimensions:

• Cable Weight: 64 kg/km (43.01 lb/1000 ft)
• Max. cable length per reel/drum: 6000 m (19680 ft)
