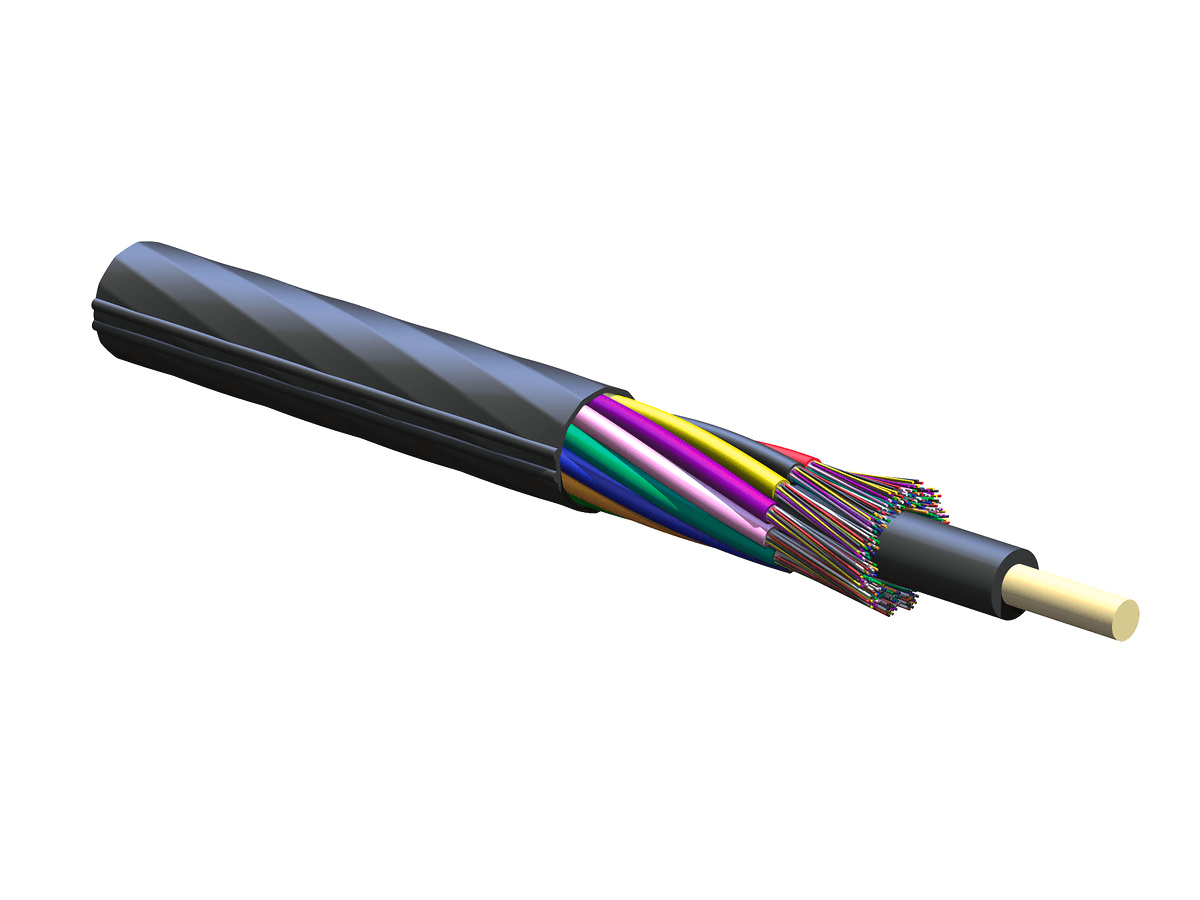

Corning 288ZH4-Y4F40A20, 288 F MiniXtend® HD Cable with Binderless* FastAccess® Technology (24F/Tube), Single-mode SMF-28® Ultra fiber, OS2

Corning 288ZH4-Y4F40A20, 288 F MiniXtend® HD Cable with Binderless* FastAccess® Technology (24F/Tube), Single-mode SMF-28® Ultra fiber, OS2

Summary: Corning 288ZH4-Y4F40A20 is a 288 F MiniXtend® HD Cable designed for outdoor use with Binderless* FastAccess® Technology. It features SMF-28® Ultra fiber in a dielectric cable type, ideal for microduct applications.

General Specifications:

• Product Number: 288ZH4-Y4F40A20
• Cable Type: Stranded Loose Tube
• Environment: Outdoor
• Product Type: Dielectric
• Fiber Category: SMF-28® Ultra 200 Optical Fiber
• Coding according to EN 60794-1-1 (DIN VDE 0888-100-1): A-DQ(ZN)2Y
• Application: Microduct
• Cable geometry: Round

Standards:

• RoHS: Free of hazardous substances according to RoHS 2011/65/EU

Environmental Conditions:

• Temperature Range, Installation: -15 °C to 60 °C (5 °F to 140 °F )
• Temperature Range, Operation: -40 °C to 70 °C (-40 °F to 158 °F )
• Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F )

Cable Design:

• Central Element: Dielectric
• Fiber Count: 288
• Buffer Tube Color Coding, Layer 1: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Outer Jacket Color: Black
• Outer Jacket Material: Polyethylene (PE)
• Outer Jacket Nominal Thickness: 0.5 mm (0.02 in)
• Buffer Tube Diameter: 1.7 mm (0.07 in)
• Number of Active Tubes: 12
• Number of Tube Positions: 12
• Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
• Fibers per Tube: 24
• Color Code Standards: Telcordia

Mechanical Specifications:

• Crush Resistance: 1000 N/10 cm
• Max. Tensile Strength, Short-Term: 1334 N (299.9 lbf)
• Min. Bend Radius Installation: 194 mm (7.64 in)
• Min. Bend Radius Operation: 146 mm (5.75 in)
• Nominal Outer Diameter: 9.7 mm (0.38 in )
• Min. Duct Size Diameter: 12 mm (0.47 in)
• Optimal Duct Size: 13 mm (0.51 in)

Optical Characteristics:

• Fiber Code: Z
• Performance Option Code: 40
• Fiber Category: OS2
• Fiber Type: Single-mode (OS2) / 200 µm
• Fiber Name: Bend-Improved Single-mode (OS2)
• Maximum Attenuation: 0.34 dB/km / 0.34 dB/km / 0.20 dB/km
• Wavelengths: 1310 nm / 1383 nm / 1550 nm
• Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1
• Cladding diameter: 125 µm
• Coating diameter: 188 µm
• Cable cutoff wavelength: 1260 nm
• Mode-Field Diameter at 1310 nm: 9.2 µm

Dimensions:

• Cable Weight: 84 kg/km (56.45 lb/1000 ft)
• Max. cable length per reel/drum: 6000 m (19680 ft)
