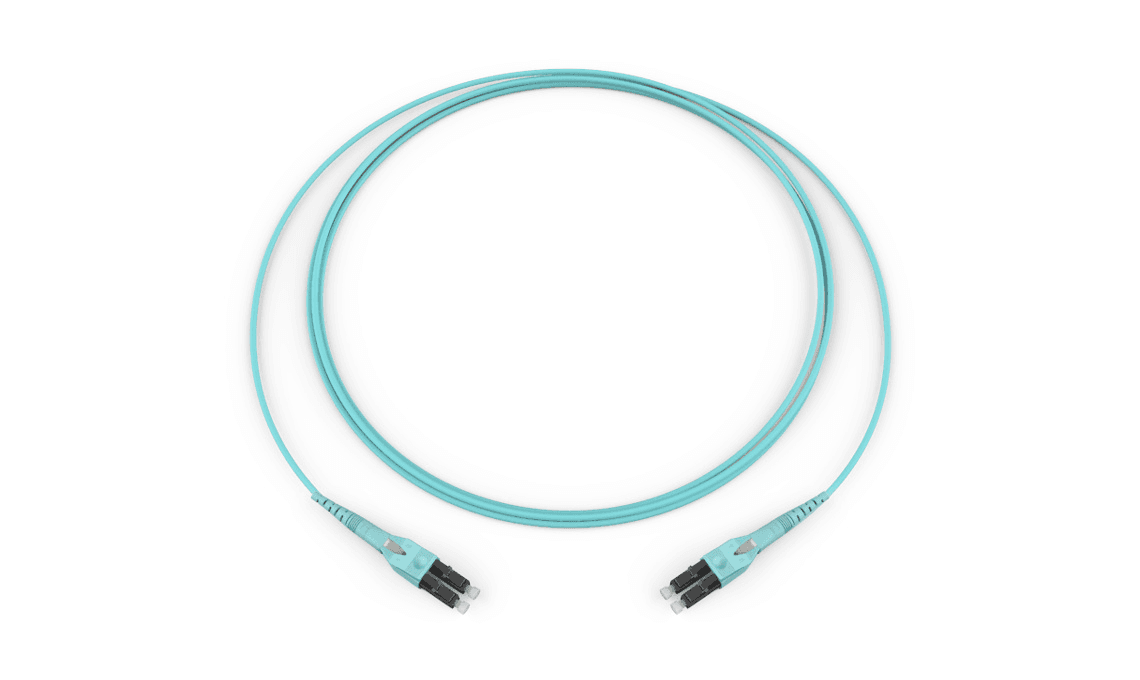

Corning 797902QD820007F, Standard LC Uniboot MM OM4 50um 2F 7 Feet

Corning 797902QD820007F is an indoor OM4 MM multimode fiber jumper built on a DFX® 250 (Uniboot) cable in aqua. It features duplex LC PC Uniboot connectors on both ends with Non-Keyed keying for high-density patching. This 2 fiber assembly is 7 Feet long and has a Plenum flame rating for indoor plenum spaces.

Technical Specs

Brand	Corning
Catalog code	797902QD820007F
Product category	2 fiber
Indoor/outdoor	Indoor
Unit of measure	Feet
Fiber type	OM4 MM
Fiber mode	Multimode
Cable type	DFX® 250 (Uniboot)
Cable color	Aqua
Length	7
Cable outer diameter	2.05 MM
Flame rating	Plenum
Connector A	LC PC Uniboot, Duplex, Non-Keyed
Connector B	LC PC Uniboot, Duplex, Non-Keyed
Furcation A outer diameter	2.0 mm
Furcation B outer diameter	2.0 mm
BEAD/BABA	Not Compliant
BEAD/BABA replacement	No BEAD/BABA replacement available

Applications

• Use for high-density indoor fiber patching where a uniboot duplex LC form factor supports organized cable routing.
• Enable short-reach multimode network interconnects using OM4 MM multimode fiber.
• Fit rack-to-rack and equipment interconnects where space and cable management are important.
• Meet indoor plenum space requirements where a Plenum flame rating is required.
