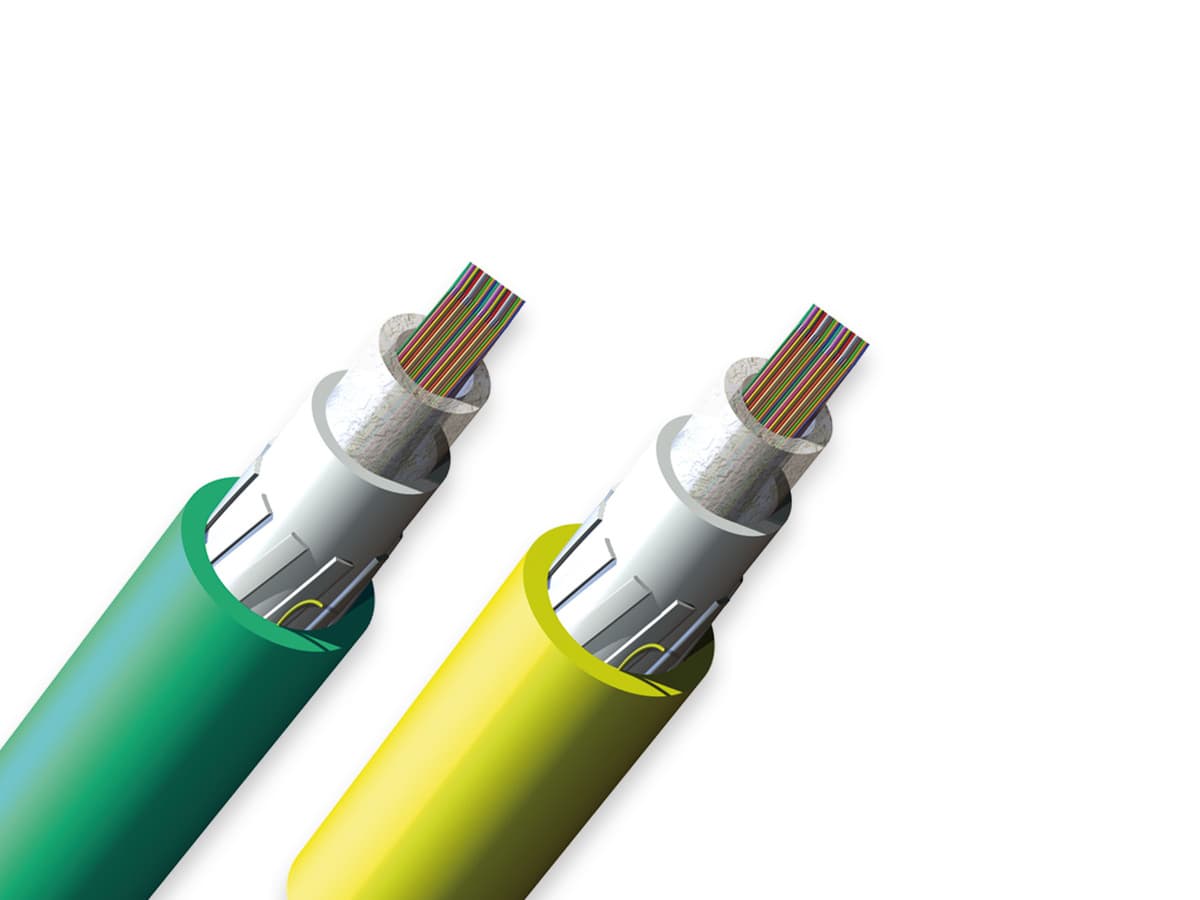

This 864-fiber OS2 ribbon fiber optic cable is designed for high-density indoor riser and horizontal installations. Featuring a robust yellow flame-retardant jacket and dielectric strength members, it ensures reliable performance while meeting Riser (OFNR) safety standards. The cable supports SMF-28® Ultra single-mode fibers with low attenuation (0.4 dB/km at 1310/1383 nm, 0.3 dB/km at 1550 nm) and ITU-T G.652.D/G.657.A1 compliance, providing exceptional long-distance transmission. Its ribbon design, with 16- and 12-fiber ribbons, accommodates up to 36 and 24 fibers per ribbon, optimizing installation efficiency in high-capacity networks. Engineered for durability, it offers water-blocking tapes and a 25.4 mm diameter, supporting high-performance optical networking in enterprise and data center environments.

General Specifications
Product Number: 864ZV7-14101D20
Cable Type: Ribbon
Environment: Indoor
Product Type: Dielectric
Fiber Category: SMF-28® Ultra
Flame Rating: Riser (OFNR)
Application: Riser, Horizontal
Cable Geometry: Round

Standards
RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings: NEC® OFNR
Design and Test Criteria: ANSI/ICEA S-83-596, CSA FT-4

Environmental Conditions
Temperature Range, Installation: -10 °C to 60 °C (14 °F to 140 °F)
Temperature Range, Operation: -20 °C to 70 °C (-4 °F to 158 °F)
Temperature Range, Storage: -40 °C to 70 °C (-40 °F to 158 °F)

Cable Design
Buffer Tube Color: Natural
Fiber Count: 864
Buffer Tube Diameter: 181 mm (7.13 in)
Number of Ripcords: 2
Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua
Outer Jacket Color: Yellow
Outer Jacket Material: Flame-retardant
Tensile Strength Elements and/or Armoring - Layer 1: Dielectric strength members
Tape: Water-swellable
Tape, Layer 2: Waterblocking foam tape
Ribbons per Tube: 16 and 12
Fibers per Ribbon: 36 and 24

Mechanical Specifications
Max. Tensile Strength, Long-Term: 810 N (182.1 lbf)
Max. Tensile Strength, Short-Term: 1320 N (296.75 lbf)
Min. Bend Radius Installation: 381 mm (15 in)
Min. Bend Radius Operation: 254 mm (10 in)
Nominal Outer Diameter: 25.4 mm (1 in)

Optical Characteristics
Fiber Code: Z
Performance Option Code: 01
Fiber Category: OS2
Fiber Type: Single-mode (OS2) / 250 µm
Fiber Name: Bend-Improved Single-mode (OS2)
Maximum Attenuation: 0.4 dB/km / 0.4 dB/km / 0.3 dB/km
Wavelengths: 1310 nm / 1383 nm / 1550 nm
Fiber Compliance: ITU-T G.652.D and ITU-T G.657.A1

Dimensions
Cable Weight: 473.26 kg/km (318.02 lb/1000 ft)
