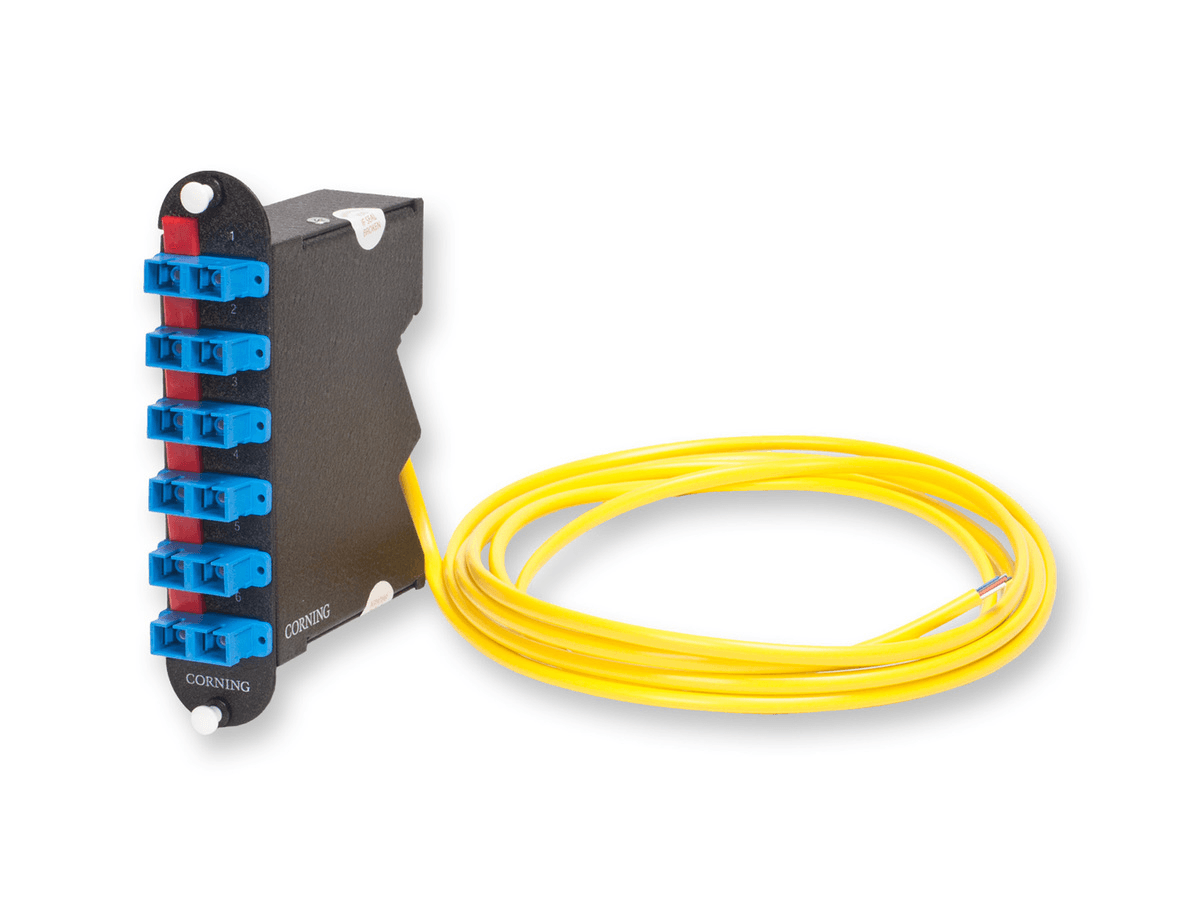

Corning CCH-RM12-59-P03RH, Module 12 F OS2

Corning CCH-RM12-59-P03RH is a 12-fiber single-mode (OS2) module designed for high-density connectivity in data center and enterprise network environments. It uses SC Duplex adapters with UPC polish on both ends and a MIC® Cable subunit stub. The module features a blue composite housing with a ceramic insert. Optical performance includes 0.15 dB typical module insertion loss (by 1300 nm) and 0.4 dB maximum (by 1300 nm and by 1310 nm).

Technical Specs

Product Number	CCH-RM12-59-P03RH
Product Type	Panels and Modules
Application	Data Center, Enterprise Networks
Fiber Category	Single-mode (OS2)
Fiber Count	12
Housing Type	Panels and Modules
Adapters per Panel	12
Cable Type stubbed	MIC® Cable subunit
Adapter Type	SC Duplex
Adapter Style	Standard
Housing Color	Blue
Housing Material	Composite
Insert	Ceramic
Connector A Type	SC
Connector A Polish	UPC
Connector B Type	SC
Connector B Polish	UPC
Module Insertion Loss, Typical (by 1300 nm)	0.15 dB
Module Insertion Loss, Maximum (by 1300 nm)	0.4 dB
Module Insertion Loss, Maximum (by 1310 nm)	0.4 dB
RoHS	Free of hazardous substances according to RoHS 2011/65/EU

Applications

• Enables high-density connectivity in data center environments where space-efficient fiber management is required.
• Integrates into enterprise network deployments that use single-mode (OS2) fiber links and SC Duplex connectivity.
• Standardizes patching and interconnect workflows by using UPC-polished SC interfaces on both ends.

Shipping & Availability

Units per Delivery	1/1
Package Contents	CCH Module with 3 m pigtail; installation guide; two 1/8 x 4-in tie wraps, white; 3/16-in outer Diameter Teflon Spiral wrap, 10 ft
