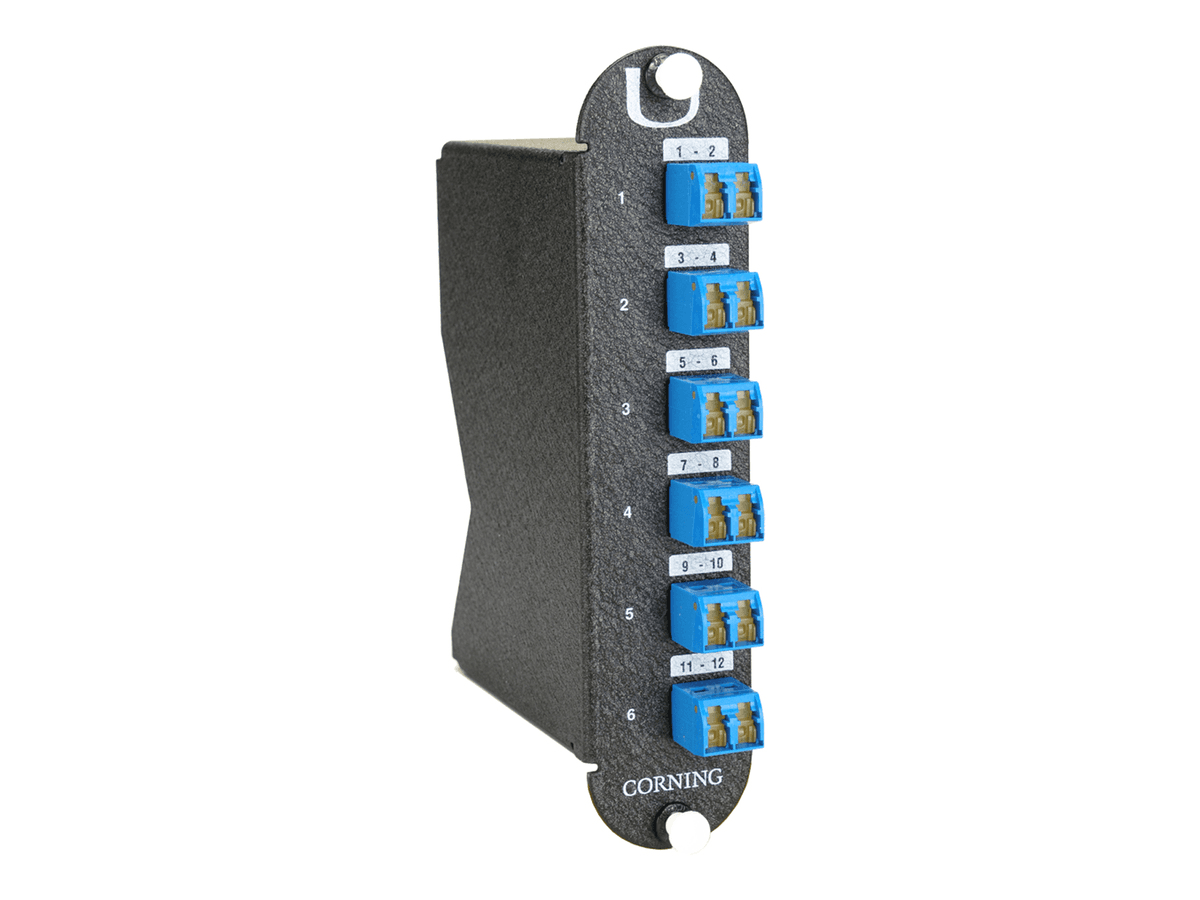

Corning CCH-UM12-04-89G, Universal Module LC 12 F OS2

Corning CCH-UM12-04-89G is a universal fiber module for data center connectivity using Single-mode (OS2) fiber. It supports 12 fibers with a universal polarity design and a shuttered LC front interface for secure, high-density patching. The rear interface is MTP®, and the module is housed in a CCH form factor for streamlined panel integration. Optical performance for the hardware is rated at 1.25 dB insertion loss.

Technical Specs

Product Number	CCH-UM12-04-89G
Product Type	Panels and Modules
Application	Data Center
Fiber Category	Single-mode (OS2)
Housing Type	CCH
Fiber Count	12
Polarity	Universal
Front Adapter Type	Shuttered LC
Front Adapter Color	Blue
Back Adapter Type	MTP®
Back Adapter Color	Black
Adapters per Panel	6
Insertion Loss	1.25 dB
RoHS	Free of hazardous substances according to RoHS 2011/65/EU

Applications

• Fits data center environments that use a CCH form factor module for streamlined panel integration.
• Enables high-density patching with a shuttered LC front interface for secure connectivity at the patching point.
• Uses a rear MTP® interface to support structured connectivity within panels and modules.
• Supports consistent polarity handling in deployments that use a universal polarity design.
