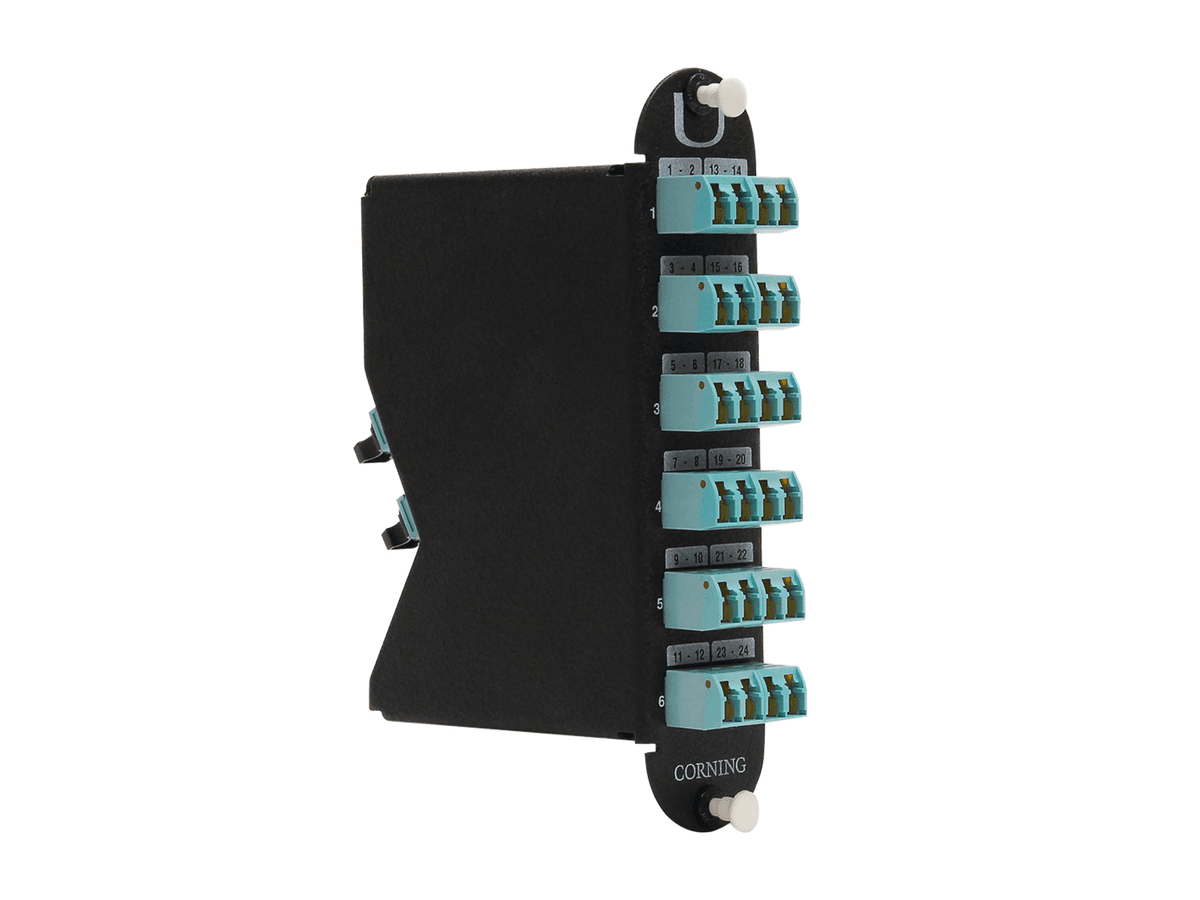

Corning CCH-UM24-05-93Q, Plug & Play™ Universal Module LC 24 F OM4

Corning CCH-UM24-05-93Q is a Plug & Play™ Universal Module designed for high-density data center connectivity. It supports 24 fibers of 50 μm MM (OM4) and transitions from an MTP® rear interface to Shuttered LC on the front. Aqua adapter colors on both sides help identify OM4 connectivity, and the black CCH housing integrates into compatible systems. The module is rated for 0.5 dB Insertion Loss-S and is free of hazardous substances according to RoHS 2011/65/EU.

Technical Specs

Product Number	CCH-UM24-05-93Q
Product Type	Panels and Modules
Application	Data Center
Fiber Category	50 μm MM (OM4)
Fiber Count	24
Insertion Loss-S	0.5 dB
Front Adapter Type	Shuttered LC
Back Adapter Type	MTP®
Front Adapter Color	Aqua
Back Adapter Color	Aqua
Adapters per Panel	12
Housing Type	CCH
Color	Black
RoHS	Free of hazardous substances according to RoHS 2011/65/EU

Applications

• Supports high-density fiber connectivity in data center environments using a module format for structured deployments.
• Simplifies patching and day-to-day connectivity changes by transitioning from an MTP® rear interface to Shuttered LC on the front.
• Improves visual identification of OM4 connections during installation and maintenance with aqua adapter colors on both sides.
