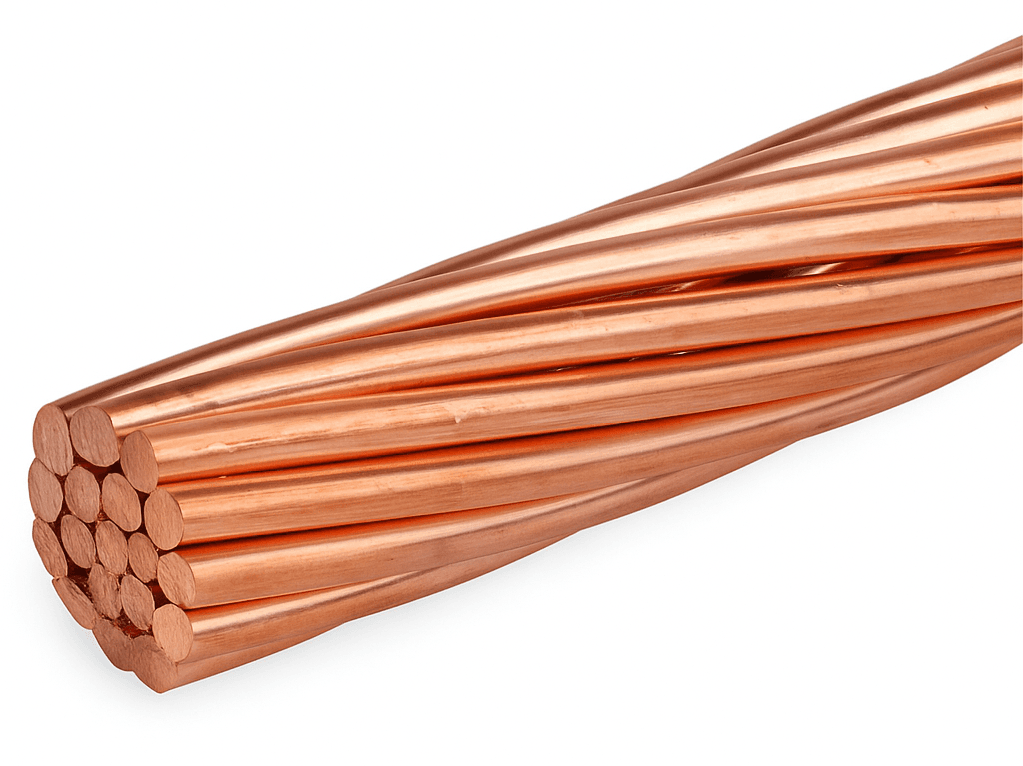

Grounding Wire stranded Copper AWG 4/0
Description
#4/0 stranded grounding wire is soft drawn copper grounding wire with Class B stranded bare copper. It meets ASTM B-3 and ASTM B8 and is suitable for commercial and residential use.
Applications
- Ground electrical and electronic equipment in commercial and residential settings.
- Support lightning arrestors where a grounding conductor is required.
- Install for uninsulated installations and jumpers.
- Use indoors and outdoors.
Specifications
| Attribute | Value |
|---|---|
| # of Conductors | 1 |
| Conductor Gauge Size | 4/0 AWG |
| Conductor Type | Soft Drawn stranded Copper |
| Conductor Material | Bare Copper |
| Approvals | ASTM B-3 and ASTM B-8 |
| O.D. (Inches Nom.) | 0.513 |
| Item Type | Grounding Copper Wire |
| Weight /LBS per 1000FT | 667 |
| Strand Count | 19 |
| Outdoor (Y N) | Yes |
Documents
Images are for reference only. Specifications may change without notice — verify suitability for your application before purchase. The manufacturer's documentation controls.
