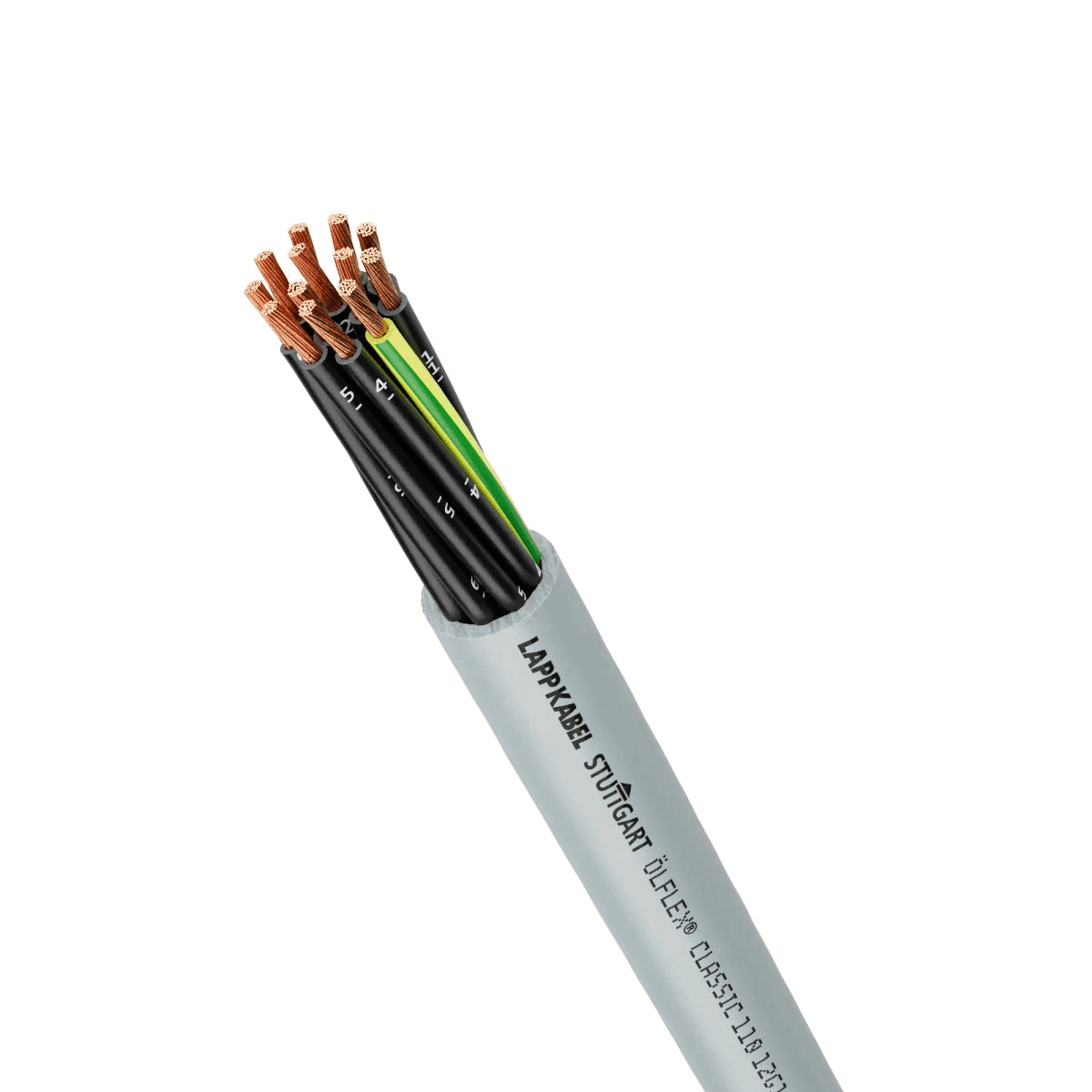

LAPP Group 1119207, OLFLEX CLASSIC 110 18 AWG 7C 500V Flexible Cable

Part Number: 1119207

LAPP 1119207 OLFLEX CLASSIC 110 is a flexible, multi-Conductor Control Cable designed for common European machinery and automation wiring. It features 18 AWG Conductors in a 7-Conductor, Stranded construction with PVC Insulation and a PVC Jacket for dependable handling and routing. Rated 500V and CE Approved, it’s well-suited for control systems, assembly lines, control panels, and data processing equipment. The pressure-extruded Jacket is designed to enhance flexibility for installation in dynamic industrial environments.

Manufacturer Information:

• Manufacturer: LAPP
• Manufacturer Part Number: 1119207

Electrical Ratings & Compliance:

• Voltage: 500V
• Standards/Approvals: CE Approved
• RoHS Compliant: Yes

Construction:

• Attributes: Multi-Conductor
• AWG/Gauge: 18
• Number Of Conductors: 7
• Conductor Stranding: Stranded
• Shielding: Unshielded

Materials & Dimensions:

• Insulation: PVC
• Jacket Material: PVC
• Nominal OD (IN): 0.315

Features:

• Common European Control Cable design for industrial control wiring
• Pressure-extruded Jacket supports improved flexibility
• Available with inner Jacket and Tinned Copper braid for EMI & RFI protection

Typical Applications:

• Control systems
• Assembly lines
• Control panels
• Data processing equipment and other European influenced machinery specifications

LAPP Group™ and all associated trademarks are the property of their respective owners.
