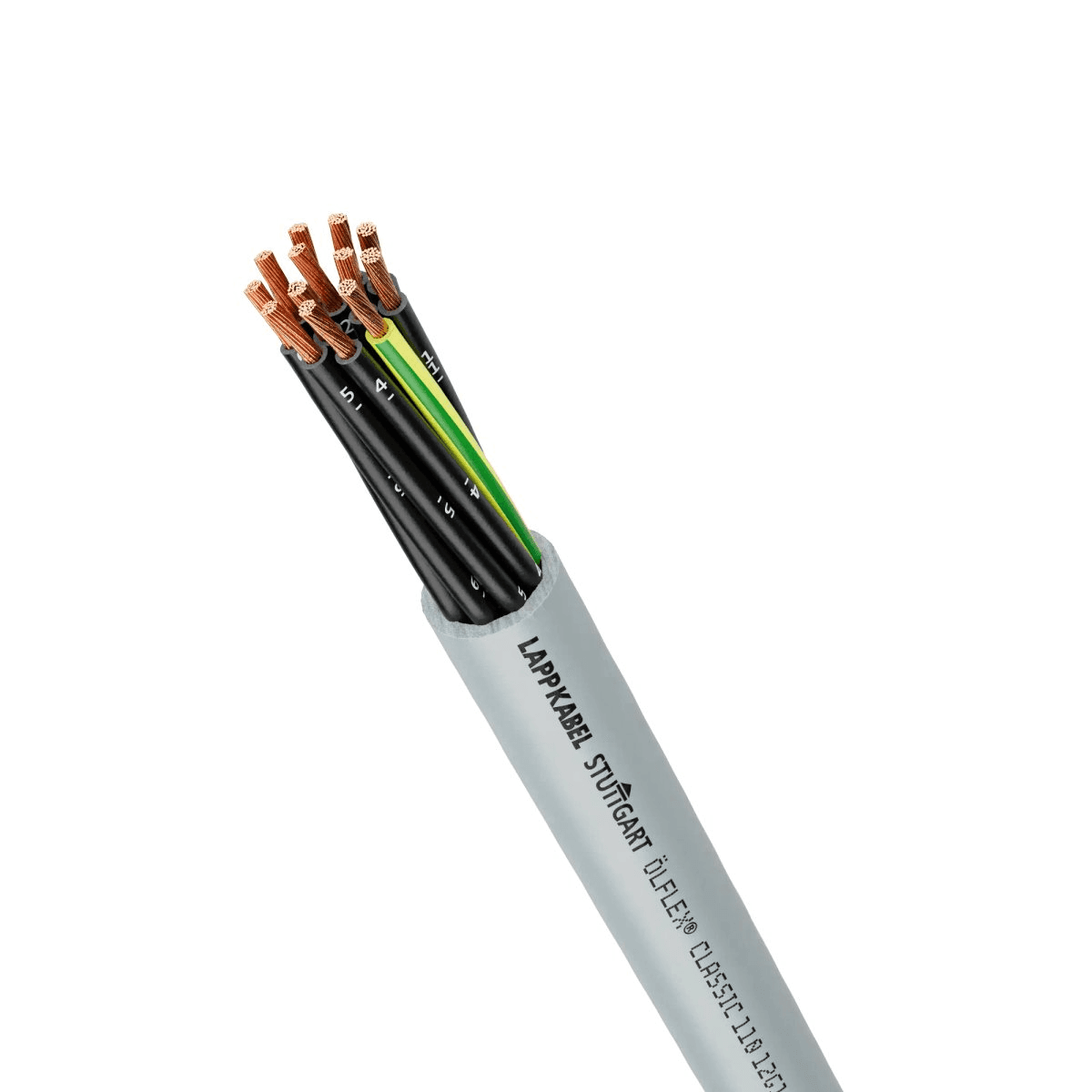

LAPP Group 1119312, OLFLEX CLASSIC 110 16 AWG 12C 500V PVC Gray

Part Number: 1119312

LAPP 1119312 OLFLEX CLASSIC 110 is a flexible multi-Conductor Control Cable designed for common European machinery and control applications. It features 12 Stranded 16 AWG Bare Copper Conductors with PVC Insulation and a PVC Jacket, rated for 500V. The Unshielded construction and pressure-extruded Jacket support improved flexibility for routing in control panels, assembly lines, and control systems. It is CE Approved and RoHS Compliant for use in European-influenced equipment specifications.

Electrical & Compliance:

• Voltage: 500V
• Standards/Approvals: CE Approved
• RoHS compliant: Yes

Construction:

• Attributes: Multi-Conductor
• Number Of Conductors: 12
• Conductor Size: 16 AWG
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Shielding: Unshielded
• Earth/ground wires: Yes
• Number of ground wires: 1 Wire

Materials & Dimensions:

• Insulation: PVC
• Jacket Material: PVC
• Nominal OD (in): 0.472

Applications & Features:

• Common European Control Cable for control systems, assembly lines, and control panels
• Suitable for data processing equment and other European influenced machinery specifications
• Pressure extruded Jacket for improved flexibility
• Available with inner Jacket and Tinned Copper braid for EMI & RFI protection
• Product type: Flex cont

LAPP Group™ and all associated trademarks are the property of their respective owners.
