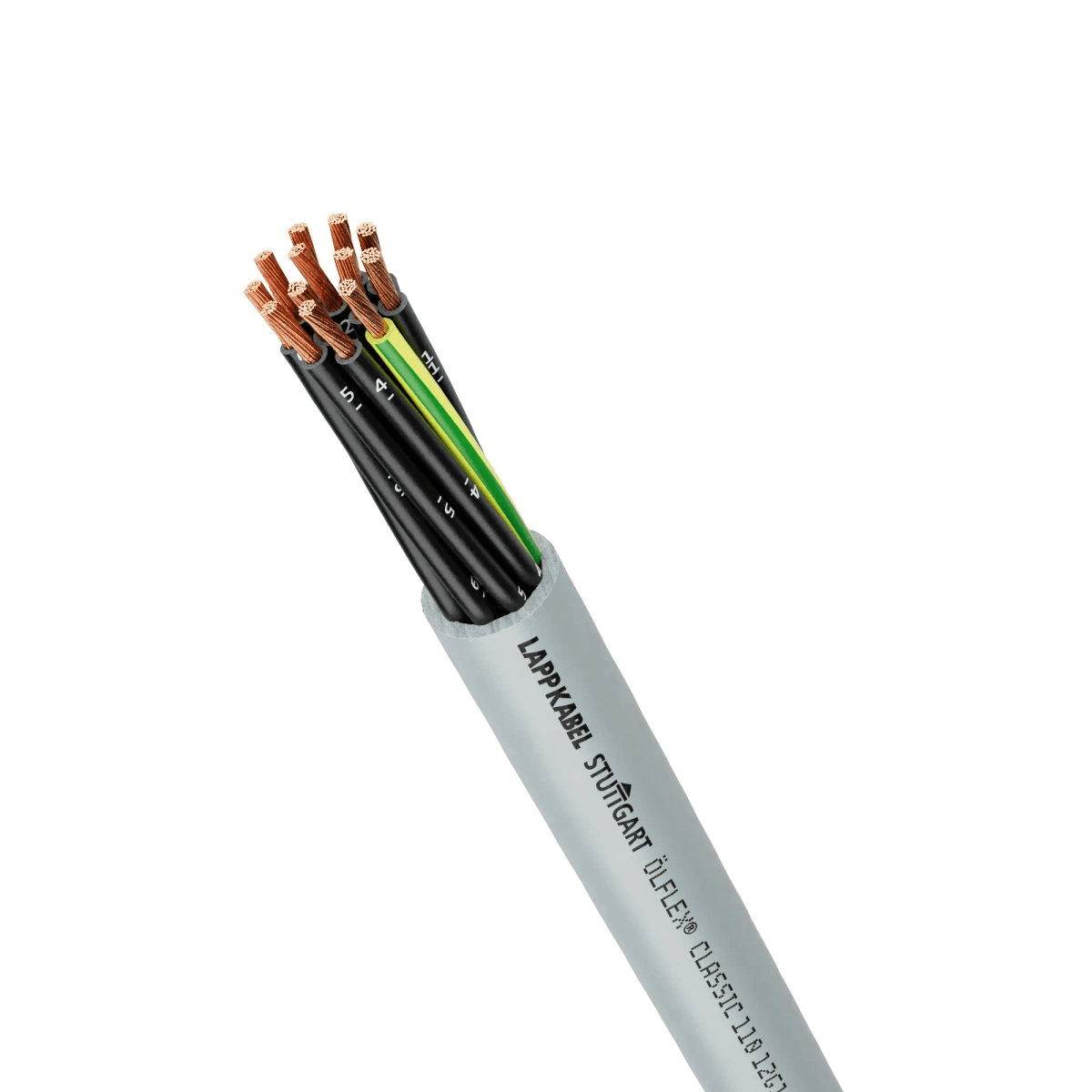

LAPP Group 1119403, OLFLEX CLASSIC 110 3C 14 AWG 500V Flexible Cable

Part Number: 1119403

LAPP 1119403 OLFLEX CLASSIC 110 is a flexible, multi-Conductor Control Cable designed for European-style machinery and industrial wiring. It features 3 Stranded 14 AWG Bare Copper Conductors with PVC Insulation and a PVC Jacket for dependable performance in control panels, assembly lines, and control systems. Rated 500V and CE Approved, this Unshielded Cable is built for clean routing and reliable installation. A pressure-extruded Jacket supports improved flexibility for demanding applications.

Electrical & Compliance:

• Voltage: 500V
• Standards/Approvals: CE Approved
• RoHS compliant: Yes

Construction:

• Attributes: Multi-Conductor
• Number Of Conductors: 3
• Conductor Size: 14 AWG
• Conductor Stranding: Stranded
• Conductor Material: Bare Copper
• Insulation: PVC
• Jacket Material: PVC
• Shielding: Unshielded
• Nominal OD (in): 0.319

Grounding:

• Earth/ground wires: Yes
• Number of ground wires: 1 Wire

Applications & Features:

• Common European Control Cable for European-influenced machinery specifications
• Typical uses include control systems, assembly lines, control panels, and data processing equment
• Pressure extruded Jacket helps improve flexibility
• Available with inner Jacket and Tinned Copper braid for EMI & RFI protection

Product Identification:

• Manufacturer: LAPP
• Manufacturer part number: 1119403
• Product type: Flex cont
