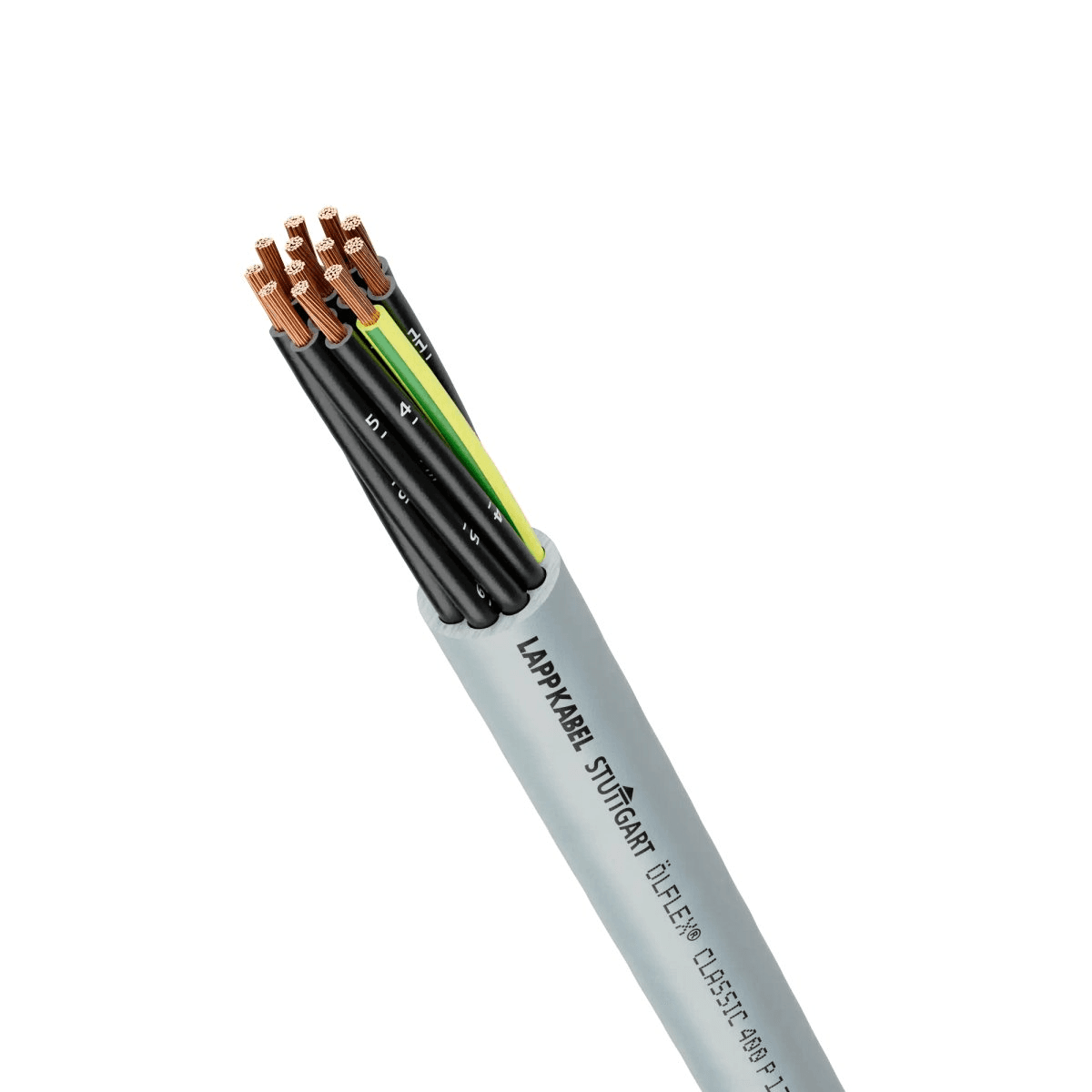

LAPP Group 1312304, Flexible Robotic CLASSIC 400P 16 4C PUR ROHS

Part Number: 1312304

LAPP 1311304 CLASSIC 400P is a flexible Control Cable designed for dynamic applications, including robotic and continuous-flex installations. It features 4 Conductors in 16 AWG Stranded construction for reliable performance in motion. The polyurethane (PUR) Jacket supports durability while maintaining flexibility, and the Cable is Unshielded for straightforward routing. Rated 600V with a Temperature Range of -40°F to +176°F (-40°C to +80°C), it is also RoHS compliant.

Electrical & Compliance:

• Voltage Rating: 600V
• RoHS compliant: Yes

Conductors:

• Number Of Conductors: 4
• Conductor Size: 16 AWG
• Conductor Stranding: Stranded
• Earth/ground wires: Yes
• Number of ground wires: 1 Wire

Construction:

• Shielding: Unshielded
• Jacket Material: Polyurethane (PUR)
• Nominal OD (in): 0.346

Temperature Rating:

• Temperature Range: -40°F to +176°F -40°C to +80°C

Product Type:

• Product type: Flex cont
